Valve Cover - RH: Notes

MATERIAL

Item Specification
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4

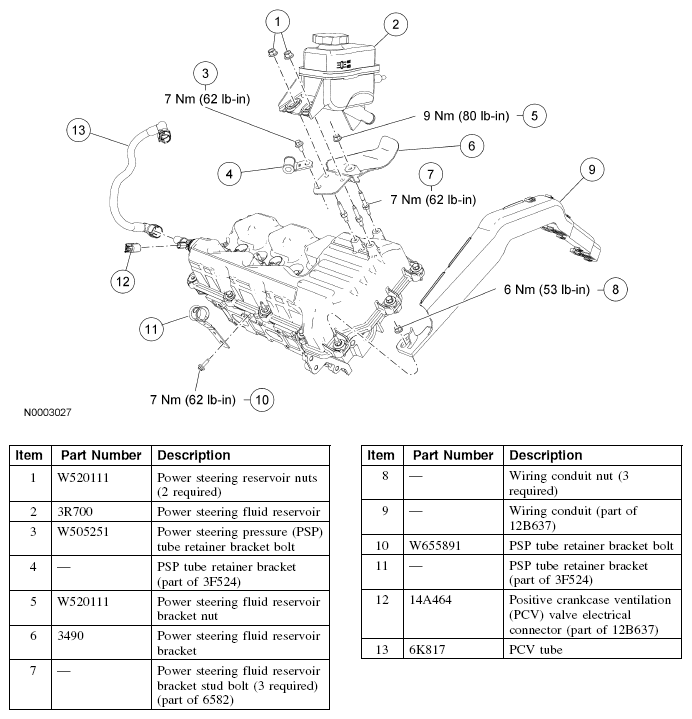

Fig 1: Valve Cover Replacement Components - RH (1 Of 2) With Torque Specifications
G04655621Courtesy of FORD MOTOR CO.

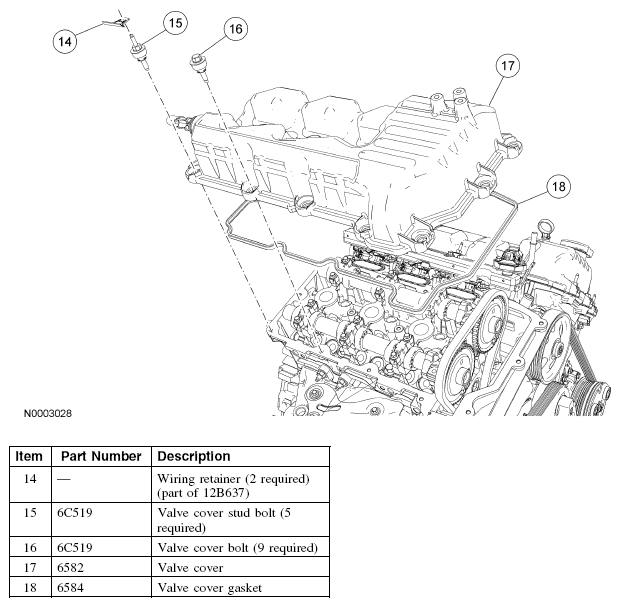

Fig 2: Identifying Valve Cover Components - RH (2 Of 2)
G04655622Courtesy of FORD MOTOR CO.
