Oil Pump: Installation

  1. Position the oil pump and install the bolts.
    • Tighten in the sequence shown to 10 N.m (89 lb-in).

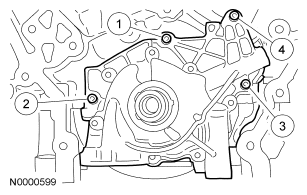

    Fig 1: Installation Sequence For Oil Pump Bolts
    G04655719Courtesy of FORD MOTOR CO.
  2. Install the oil pump screen and pickup tube. For additional information, refer to ENGINE LUBRICATION COMPONENTS - EXPLODED VIEW , OIL PUMP SCREEN  and PICKUP TUBE .
  3. Install the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
