Exhaust System - Exploded View
Exhaust System - Exploded View

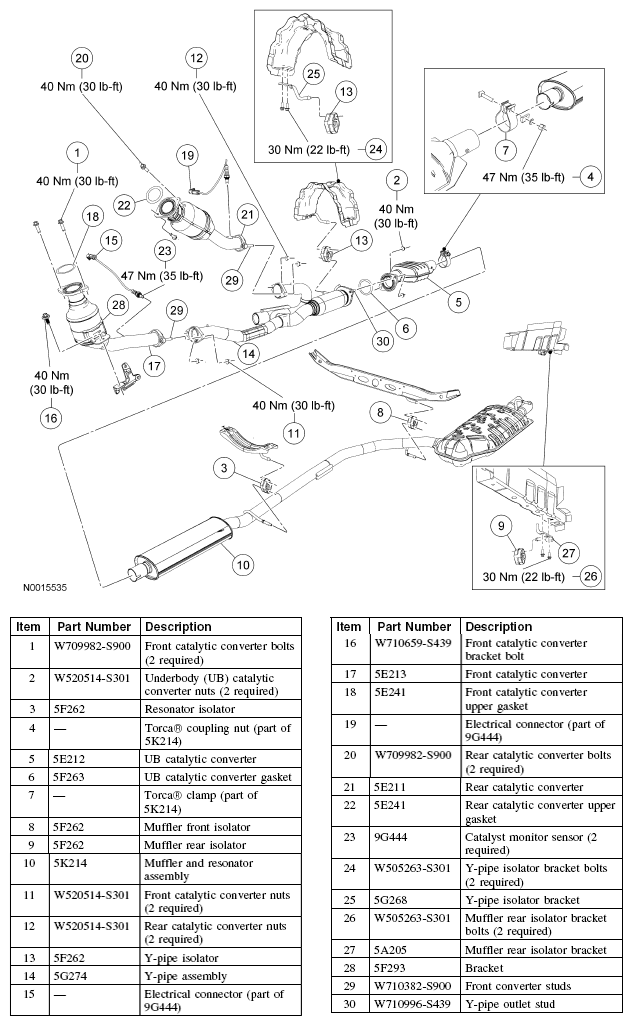

Fig 1: Exploded View Of Exhaust System Components With Torque Specifications
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate procedure.
Courtesy of FORD MOTOR CO.
