Home >> Mercury >> 2006 >> Montego Base, AWD >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Removal And Installation >> Starter Motor - CVT >> Notes

Starter Motor - CVT: Notes

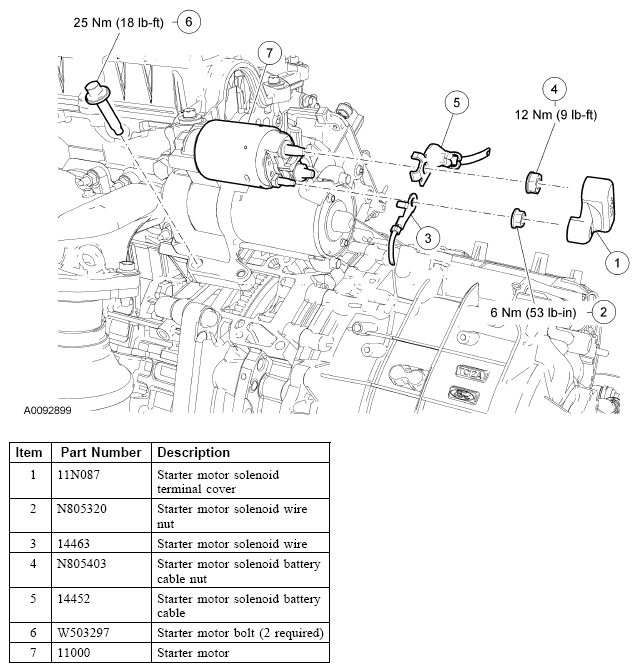

Fig 1: Starter Motor Replacement Components - CVT With Torque Specifications

G04656155

Courtesy of FORD MOTOR CO.
