Hydraulic Control Unit (HCU): Notes

MATERIAL SPECIFICATION

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1)	ESA-M6C25-A or WSS-M6C62-A

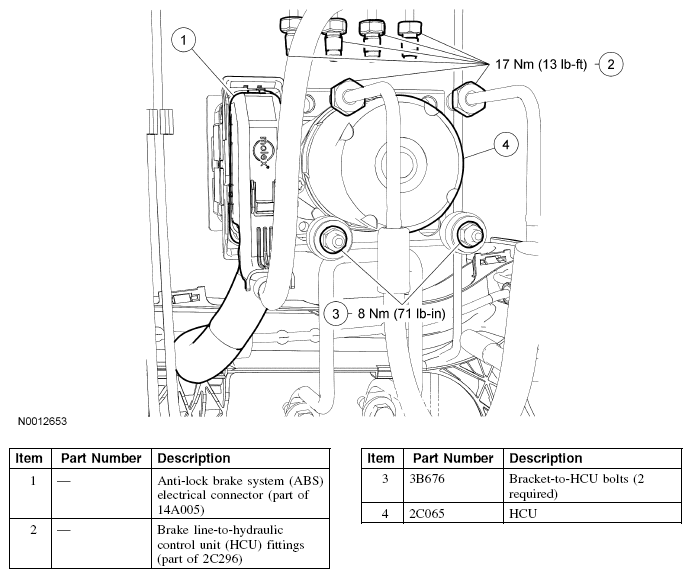

Fig 1: Hydraulic Control Unit (HCU) Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
