Window Glass - Rear: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Interior Auto Glass Cut-Out Knife Kit (Electric) 164-R2450 or equivalent
Courtesy of FORD MOTOR CO.	Pneumatic Knife with Offset Blade 107-R1511 or equivalent
Courtesy of FORD MOTOR CO.	The Pumper 164-R2459 or equivalent

MATERIAL SPECIFICATIONS

Item	Specification
DOW AUTOMOTIVE 2-HOUR CURE
Dow Urethane Adhesive Betaseal® Express	-
Dow Urethane One Step Glass Primer Betaprime® 5500/5500 A/5500SA-	-
SIKA 2-HOUR CURE
Sika Urethane Adhesive Sika Tack ASAP	-
Sika Urethane Metal and Glass Primer Sika 206 G+P	-
Ultra-Clear Spray Glass Cleaner ZC-23	ESR-M14P5-A

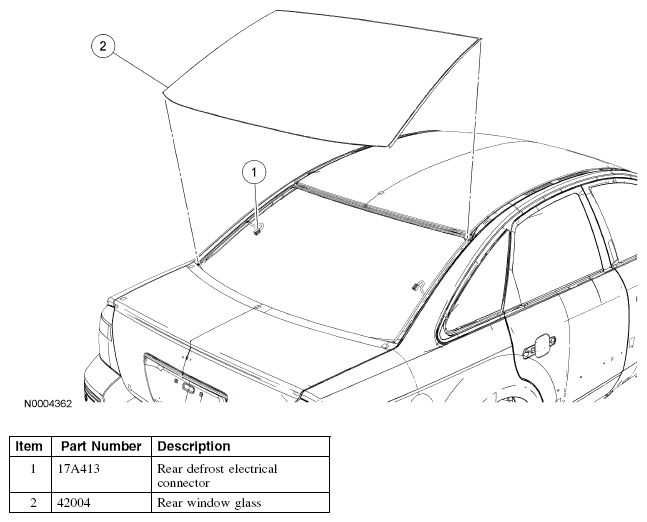

Fig 1: Identifying Window Glass Components - Rear

Courtesy of FORD MOTOR CO.
