Transmission Range (TR) Sensor: Notes

MATERIALS

Item Specification
Motorcraft Continuously Variable Chain Type Transmission Fluid XT-7-QCFT WSS-M2C933-A

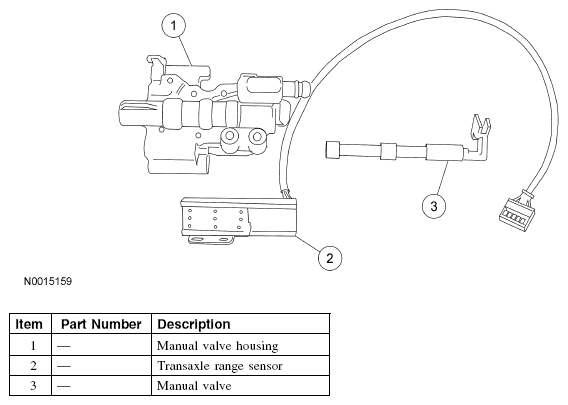

Fig 1: Exploded View Of Range Sensor Assembly Components
G04656723Courtesy of FORD MOTOR CO.
