Wheel Speed Sensor - Front: Notes

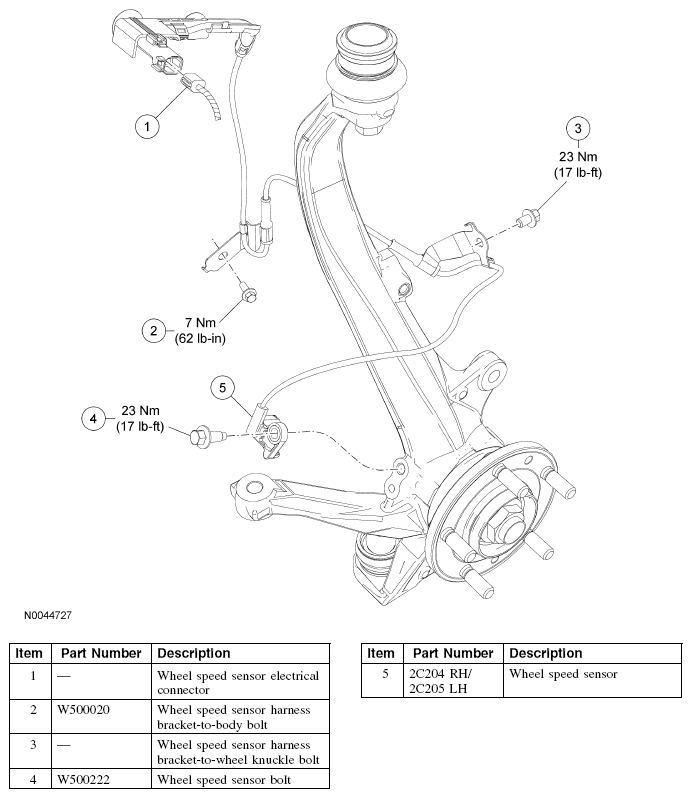

Fig 1: Wheel Speed Sensor Electrical Connector, Wheel Speed Sensor And Wheel Speed Sensor Bolt With Torque Specifications

G04679819

Courtesy of FORD MOTOR CO.
