Engine Ignition Components - Exploded View

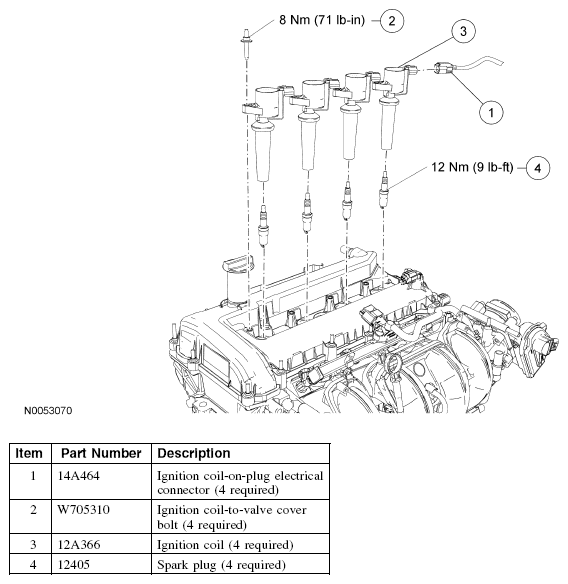

Fig 1: Engine Ignition Components - Exploded View (With Torque Specifications & Part Numbers)

G04619655

Courtesy of FORD MOTOR CO.
