Digital Transmission Range (TR) Sensor: Removal

Place the transaxle range selector lever in NEUTRAL.

Fig 1: Placing Transaxle Range Selector Lever In NEUTRAL
Courtesy of FORD MOTOR CO.
Disconnect the mass air flow (MAF) sensor and the breather tubes.

Fig 2: Identifying Mass Air Flow (MAF) Sensor And Breather Tubes
Courtesy of FORD MOTOR CO.
Remove the engine air cleaner.

Fig 3: Identifying Engine Air Cleaner Lid
Courtesy of FORD MOTOR CO.
Remove the air filter assembly.

Fig 4: Identifying Air Filter Assembly
Courtesy of FORD MOTOR CO.
Disconnect the connector.

Fig 5: Identifying Digital Transmission Range (TR) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

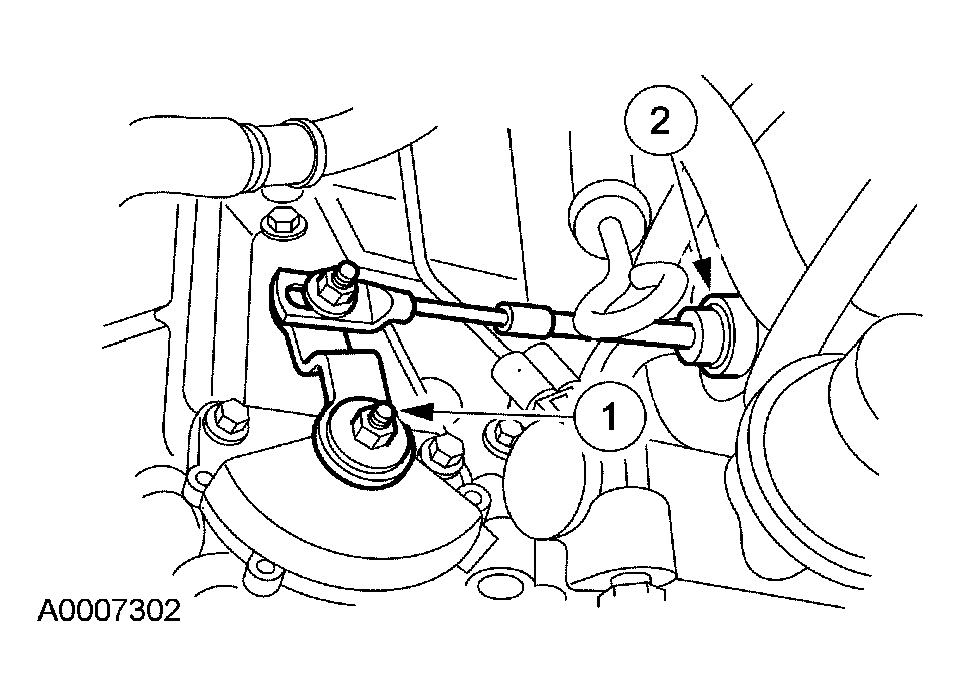

Remove the manual control lever and cable.
1. Remove the nut.
2. Remove the manual control lever and cable.
Fig 6: Removing Manual Control Lever And Cable
Courtesy of FORD MOTOR CO.
Remove the digital TR sensor.

Fig 7: Locating Digital TR Sensor
Courtesy of FORD MOTOR CO.
