Selector Lever Bezel: Removal

Remove the console bezel.
- Carefully pry the bezel from the rear and lift.

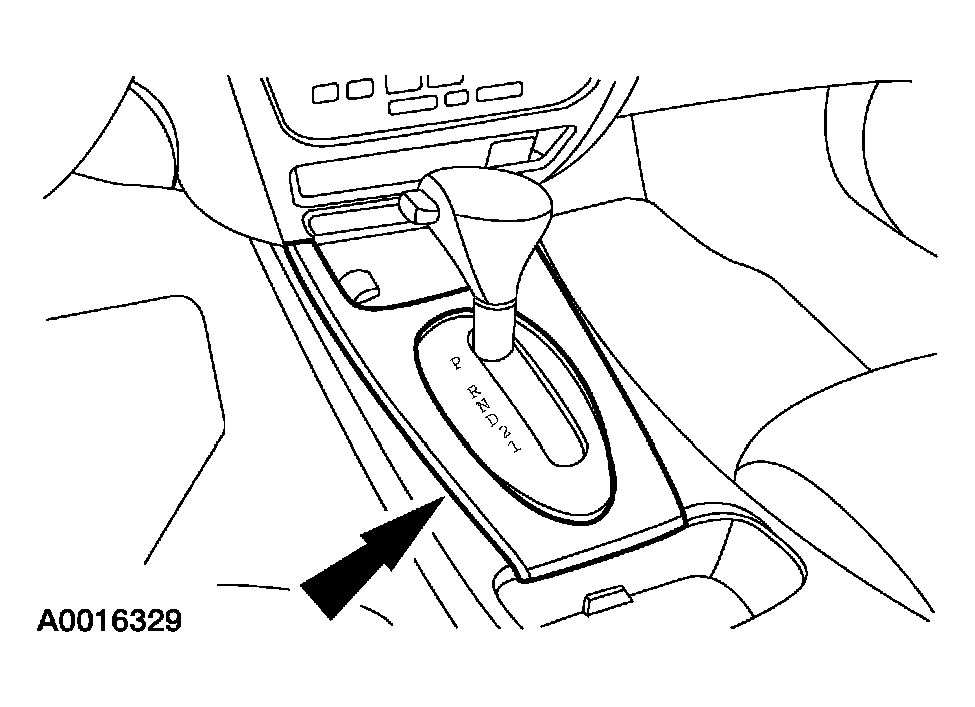

Fig 1: Removing Console Bezel
Courtesy of FORD MOTOR CO.
Remove the shift knob. For additional information, refer to TRANSMISSION SELECTOR LEVER KNOB .
Remove the retaining clips, then, pinching the retaining fingers, lift upward on the selector lever bezel slightly.

Fig 2: Removing Retaining Clips Of Selector Lever Bezel
Courtesy of FORD MOTOR CO.
Disconnect the selector lever bezel light bulbs and sockets.

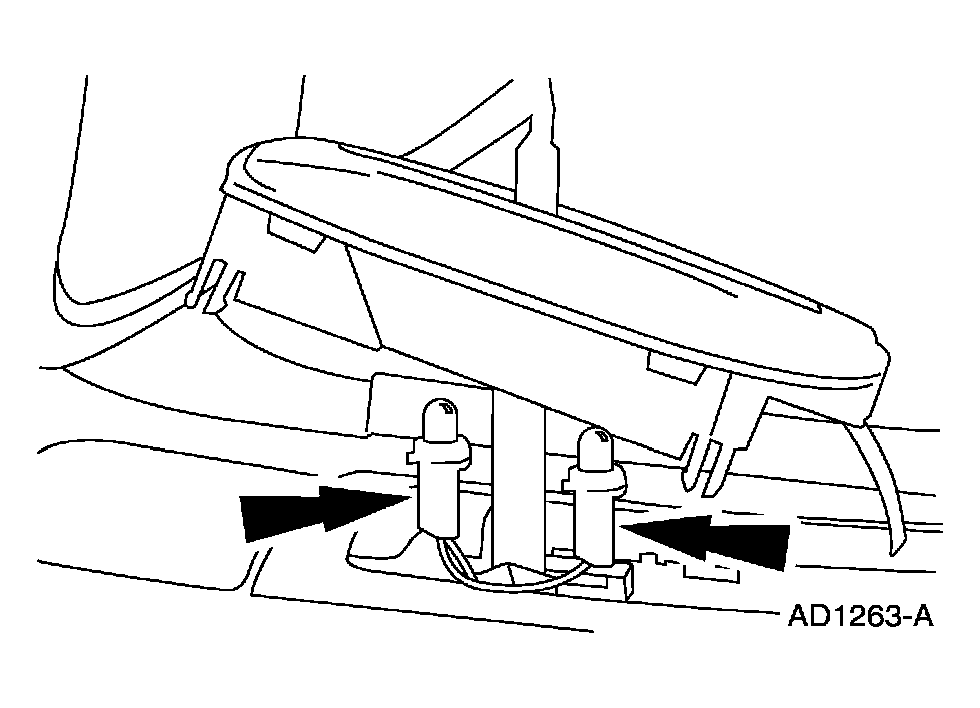

Fig 3: Disconnecting Selector Lever Bezel Light Bulbs And Sockets
Courtesy of FORD MOTOR CO.
Remove the selector lever bezel.
