Transaxle Connector Layouts

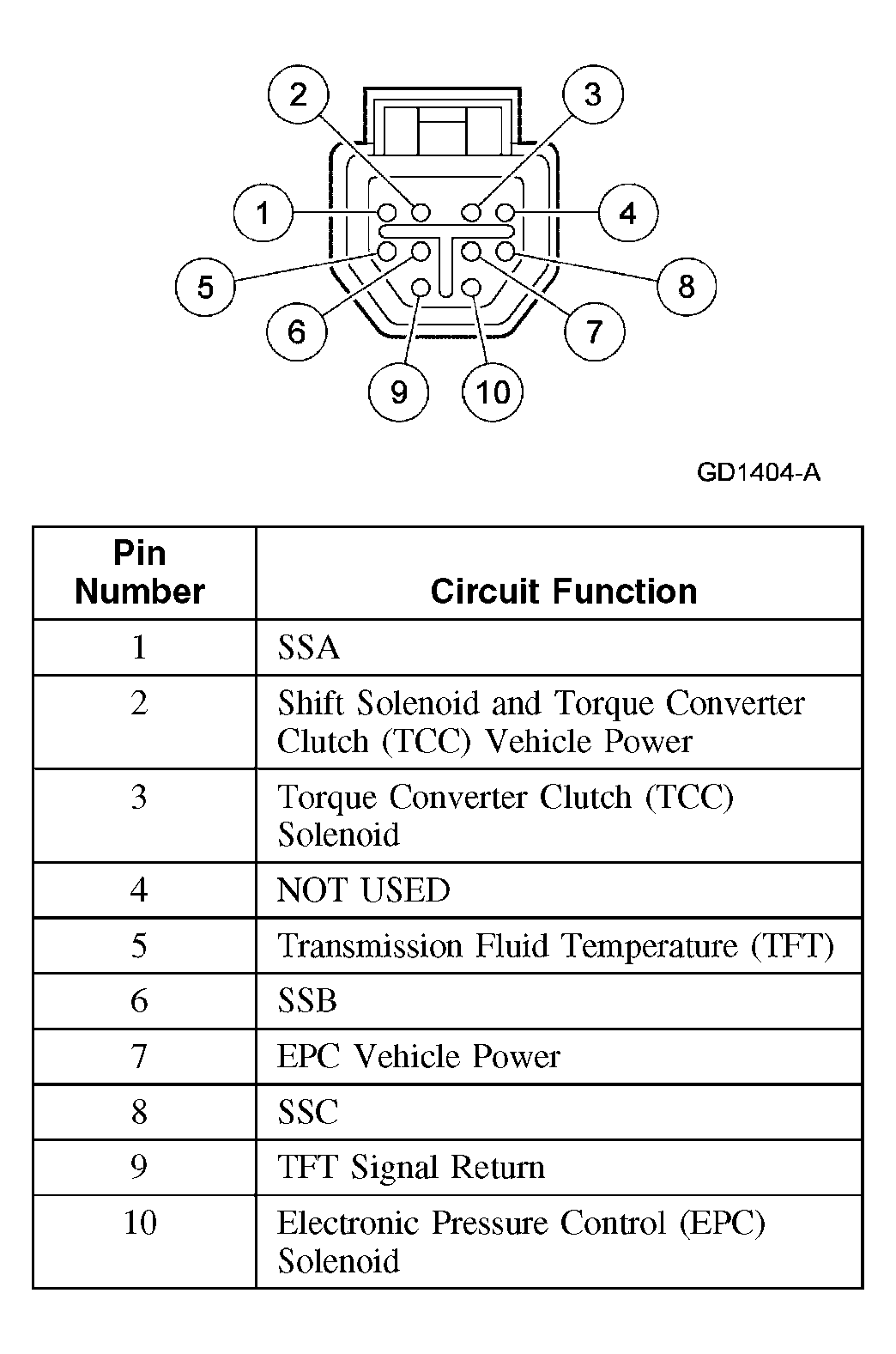

Fig 1: Identifying Transaxle Vehicle Harness Connector
G03956616Courtesy of FORD MOTOR CO.

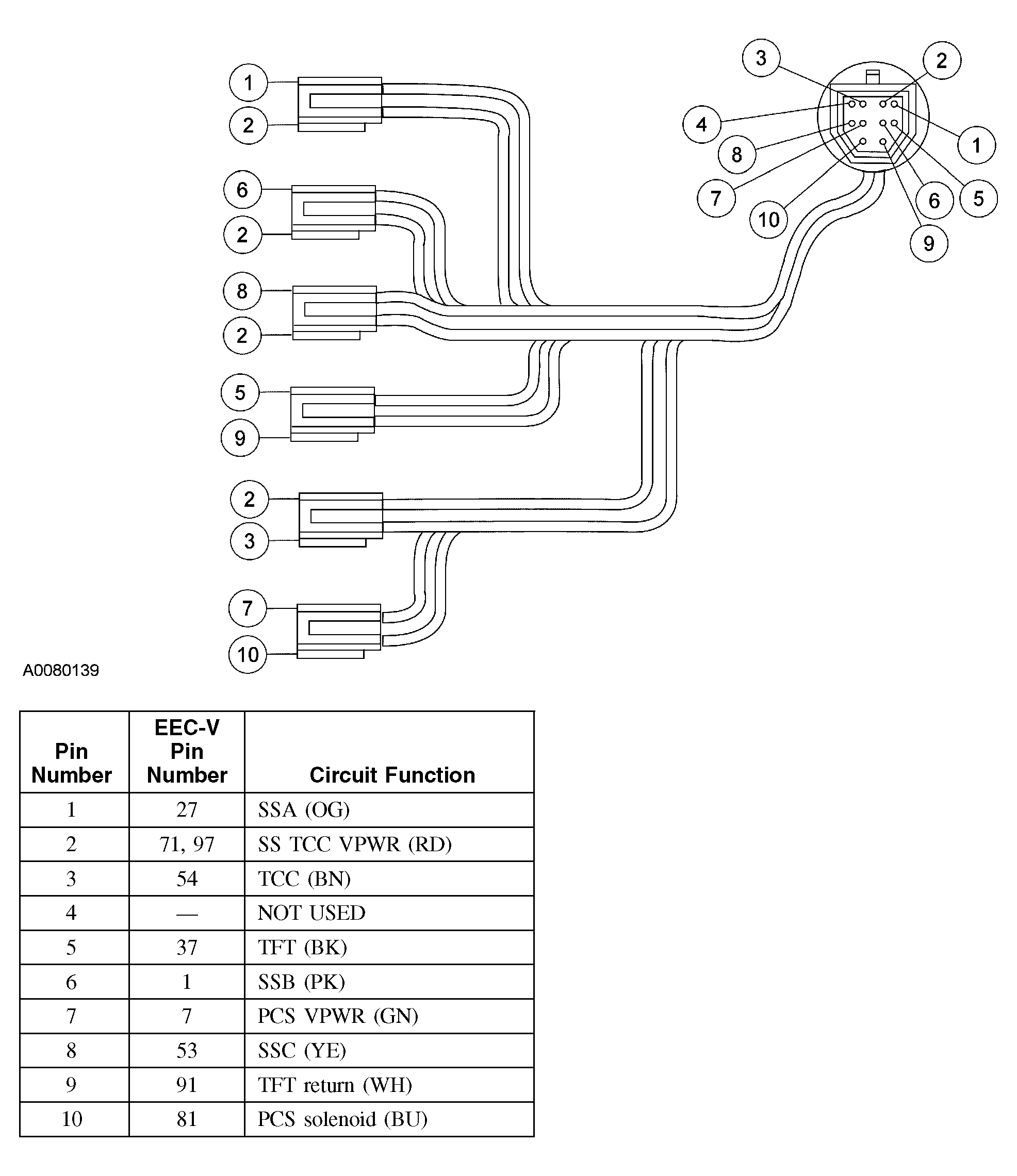

Fig 2: Identifying Transaxle Internal Harness Diagram
G03956617Courtesy of FORD MOTOR CO.

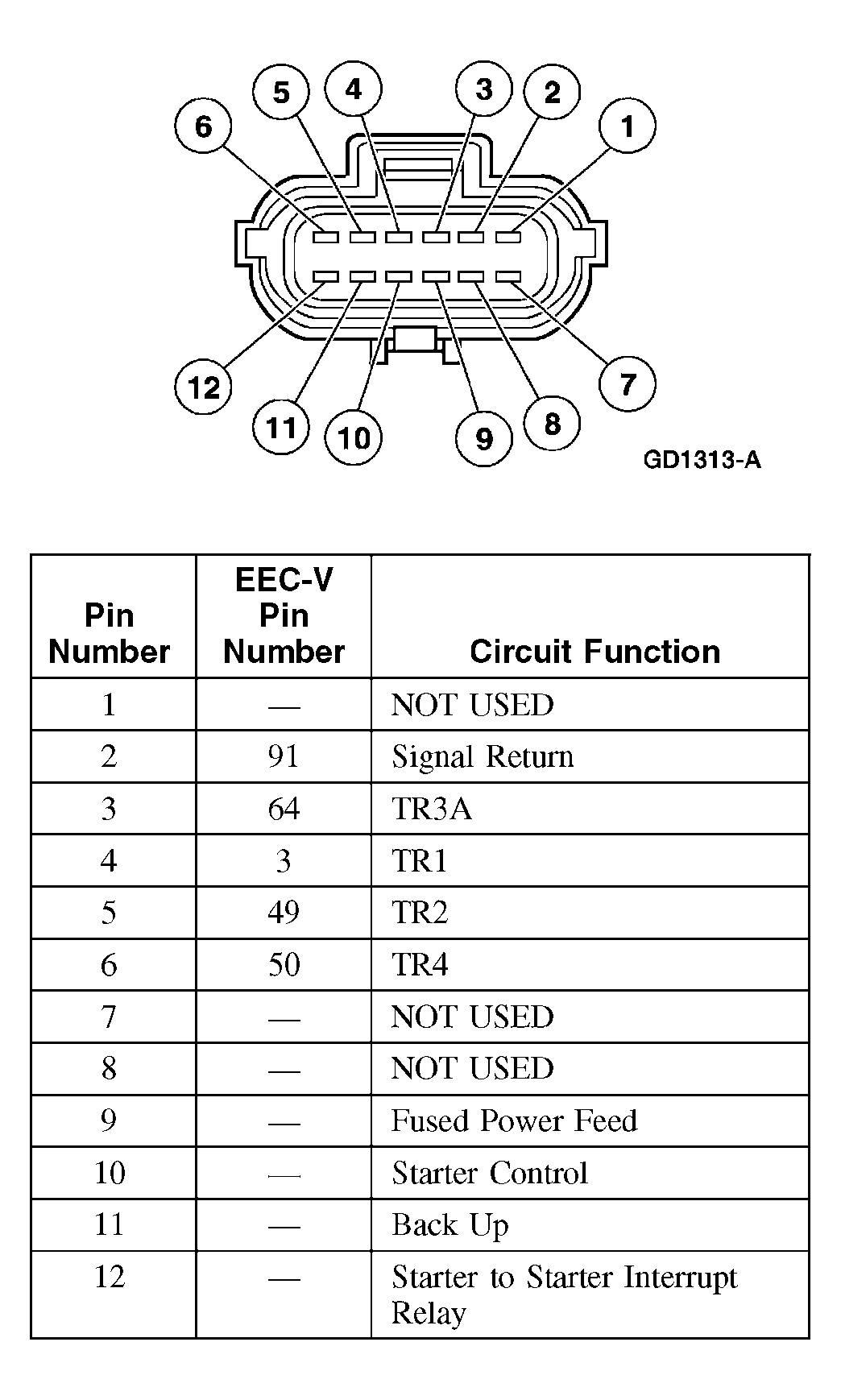

Fig 3: Identifying Digital Transmission Range (TR) Sensor Connector
G03956618Courtesy of FORD MOTOR CO.
Fig 4: Identifying Turbine Shaft Speed (TSS) Sensor
G03956619Courtesy of FORD MOTOR CO.

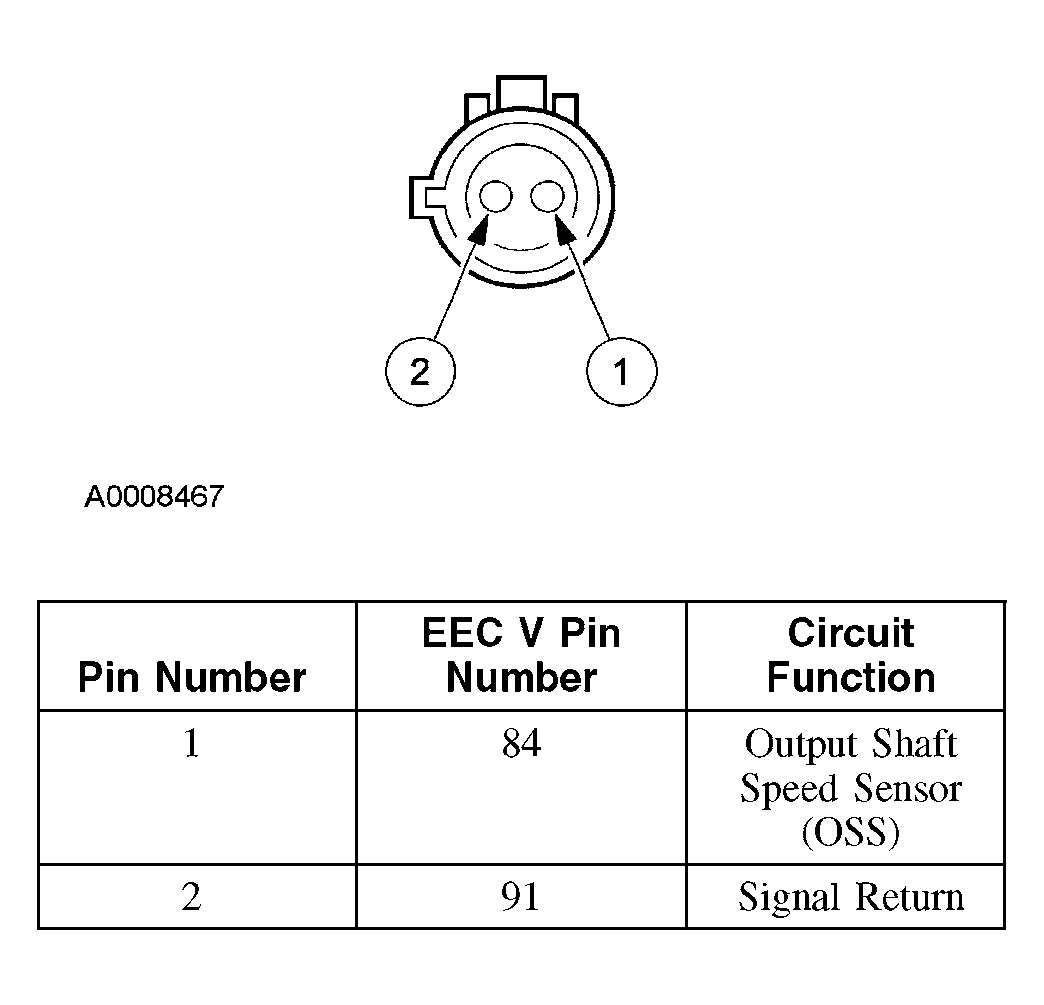

Fig 5: Identifying Output Shaft Speed (OSS) Sensor Connector
G03956620Courtesy of FORD MOTOR CO.
