Transmission Selector Lever Knob: Removal

  1. Slide the plastic sleeve down.

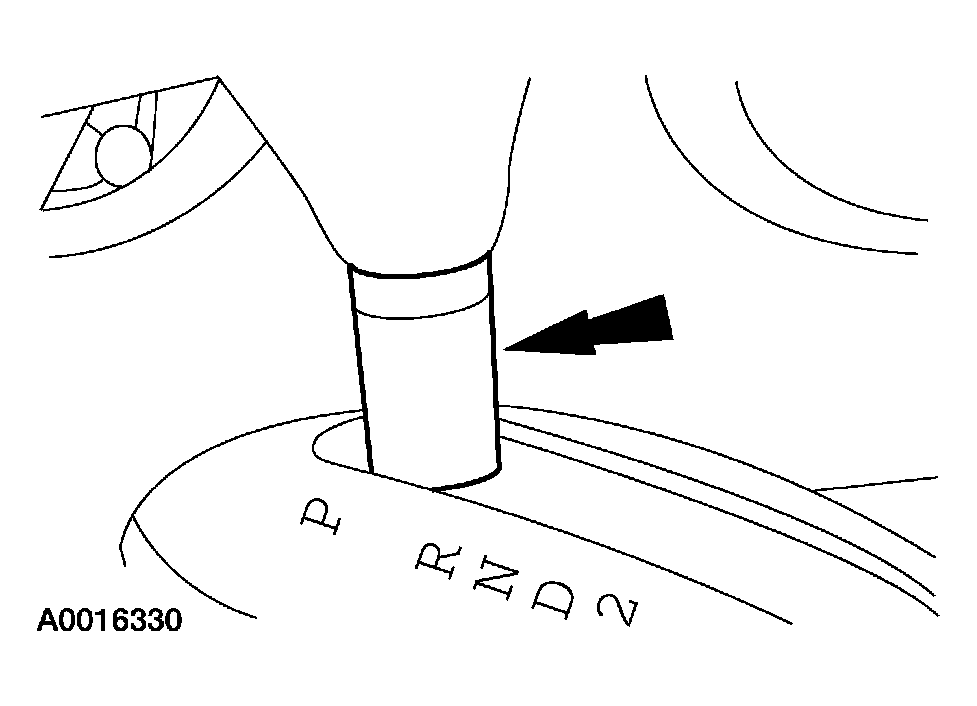

    Fig 1: Sliding Plastic Sleeve Down
    G03957568Courtesy of FORD MOTOR CO.
  2. Remove the screws.

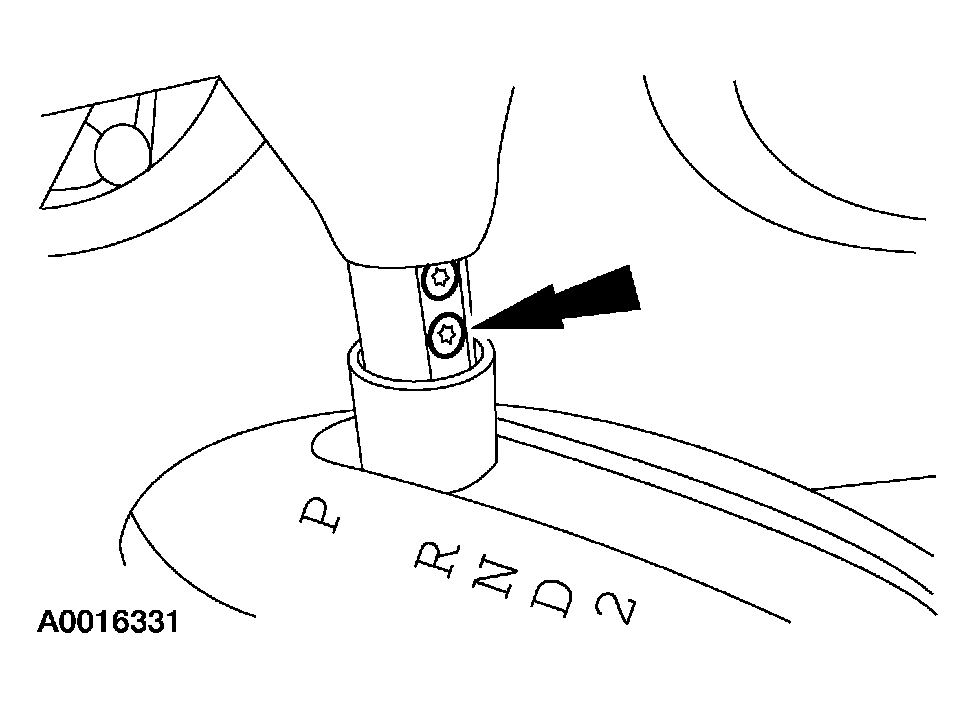

    Fig 2: Removing Transmission Selector Lever Knob Screws
    G03957569Courtesy of FORD MOTOR CO.
  3. Depress the button and remove the selector lever knob.

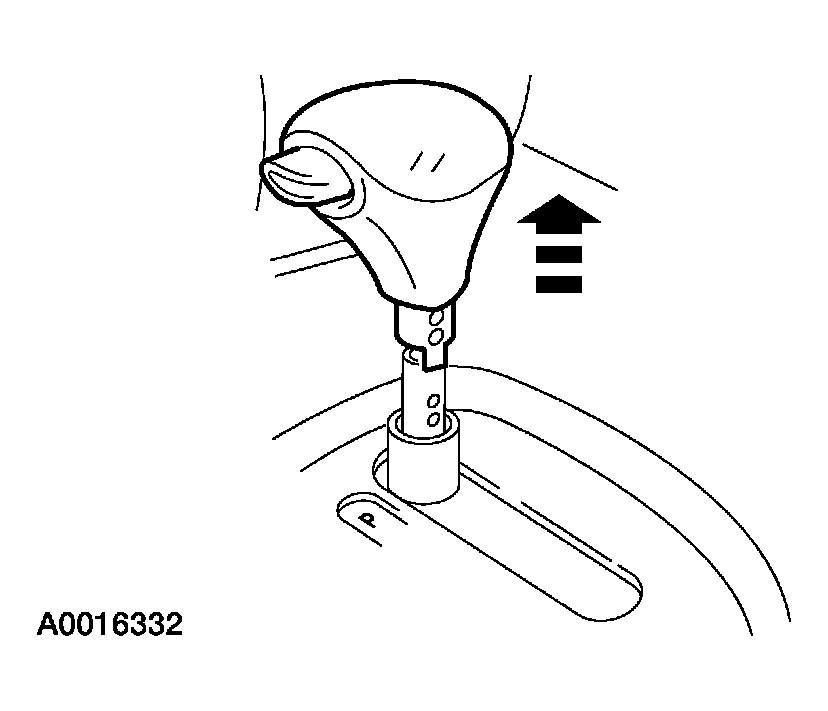

Fig 3: Removing Selector Lever Knob
G03957570Courtesy of FORD MOTOR CO.
