Pinpoint Test B: The Shift Control Linkage Is Out Of Correct Gear Relationship

B1 CHECK THE SHIFT CONTROL LINKAGE
- Key in ON position.
- Apply the brake pedal.

  Fig 1: Checking Shift Control Linkage
  Courtesy of FORD MOTOR CO.
- Gain access to the shift control linkage.
- Move the range selector lever in all positions.
- Observe the linkage during operation.
- Is the linkage binding or damaged?
- Yes : INSTALL a new shift control cable. TEST the system for normal operation.
- No : GO to B2.
B2 CHECK TRANSAXLE SHIFT CABLE
- Check the transaxle shift cable and the bracket installation.
- Is the transaxle shift cable correctly installed and adjusted?
- Yes : VERIFY the transaxle shift cable adjustment. For additional information, REFER to SELECTOR LEVER CABLE ADJUSTMENT - FLOOR SHIFT or SELECTOR LEVER CABLE ADJUSTMENT - COLUMN SHIFT . ADJUST the transaxle shift cable if necessary. GO to B3.
- No : REPAIR as necessary. TEST the system for normal operation.
B3 CHECK THE LINKAGE/CABLE FOR CORRECT GEAR RELATIONSHIP
- Apply the brake pedal.

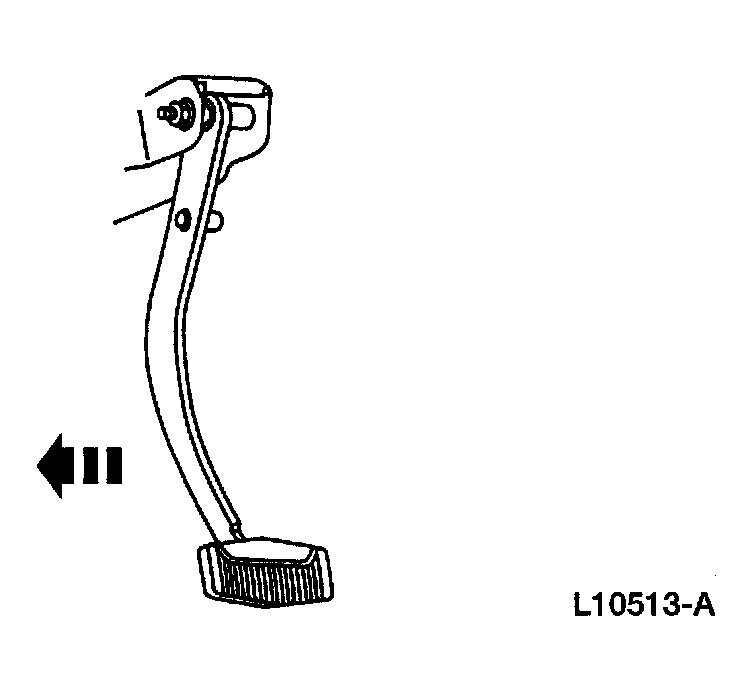

  Fig 2: Apply Brake Pedal
  Courtesy of FORD MOTOR CO.
- Move the transaxle range selector lever through all positions.
- Does the indicator match the gear selection?
- Yes : SYSTEM OK. TEST the system for normal operation.
- No : REFER to SELECTOR LEVER CABLE ADJUSTMENT - FLOOR SHIFT or SELECTOR LEVER CABLE ADJUSTMENT - COLUMN SHIFT . TEST the system for normal operation.
