Door Window Glass Adjustment

Remove the front door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the watershield.
Partially lower the front door window glass.

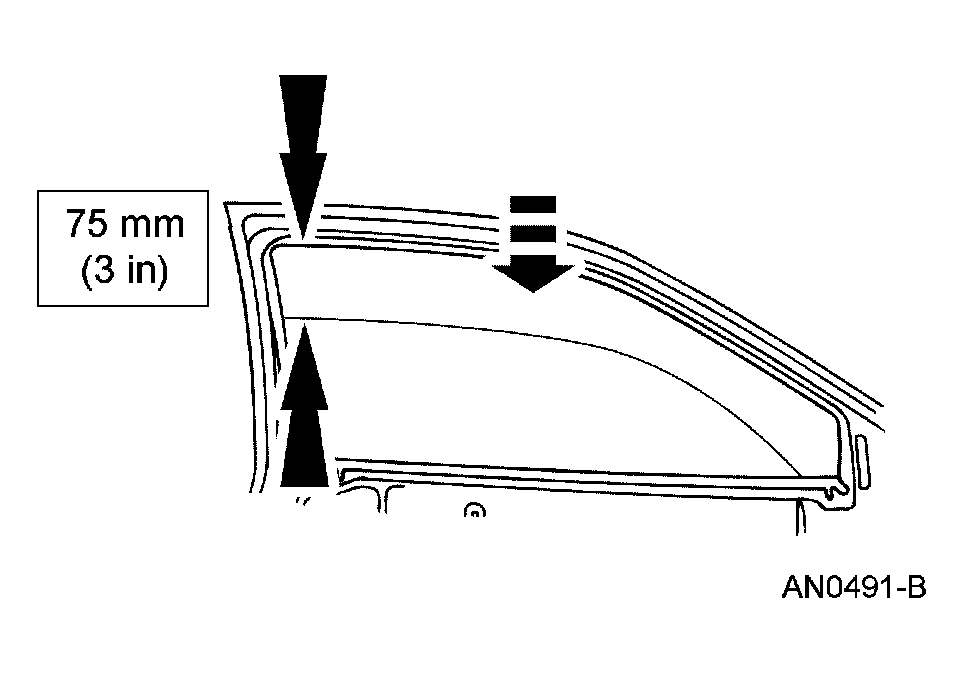

Fig 1: Locating Lower Front Door Window Glass
Courtesy of FORD MOTOR CO.
Loosen the window regulator equalizer arm bracket nuts.

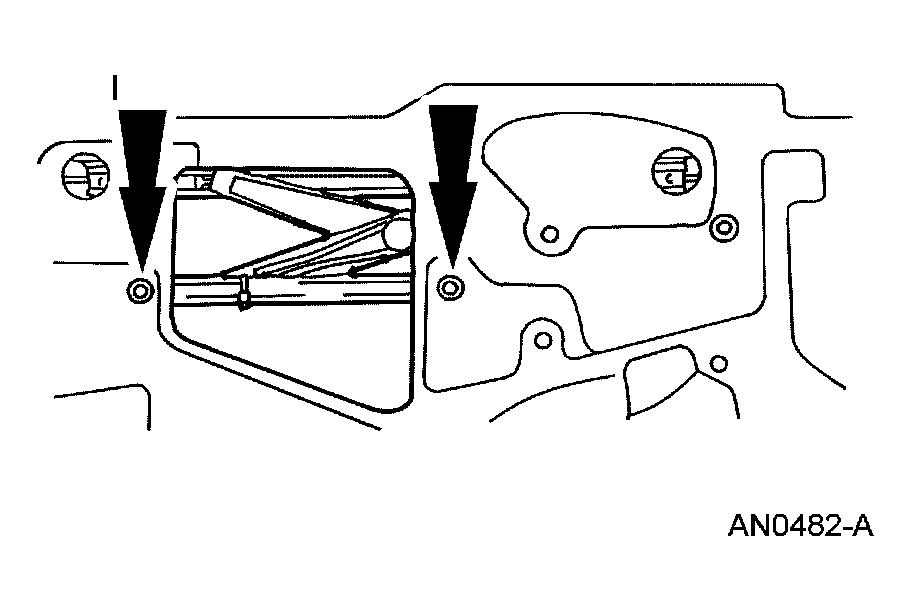

Fig 2: Loosening Window Regulator Equalizer Arm Bracket Nuts
Courtesy of FORD MOTOR CO.
Seat the front door window glass to the front door glass top run.

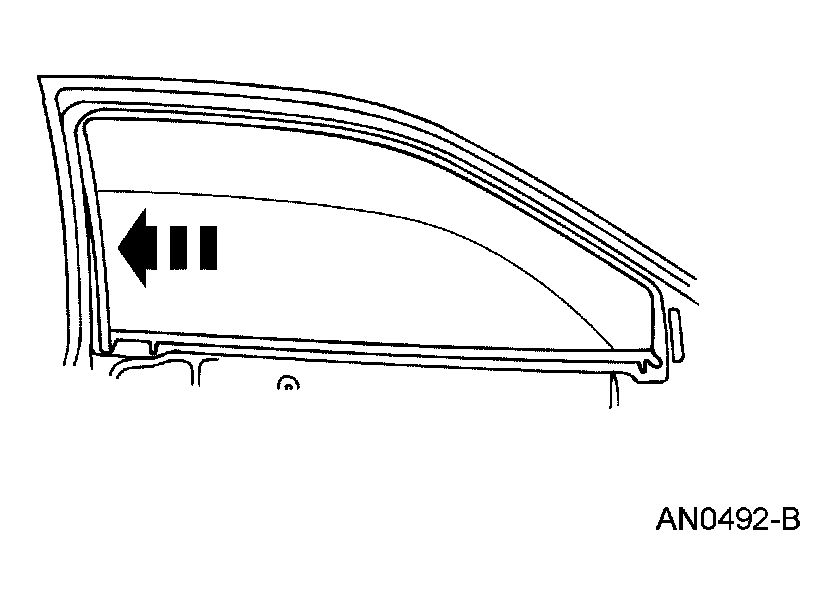

Fig 3: Identifying Seat Front Door Window Glass To Front Door Glass Top Run
Courtesy of FORD MOTOR CO.
Push the window regulator equalizer arm bracket down and tighten the nuts.

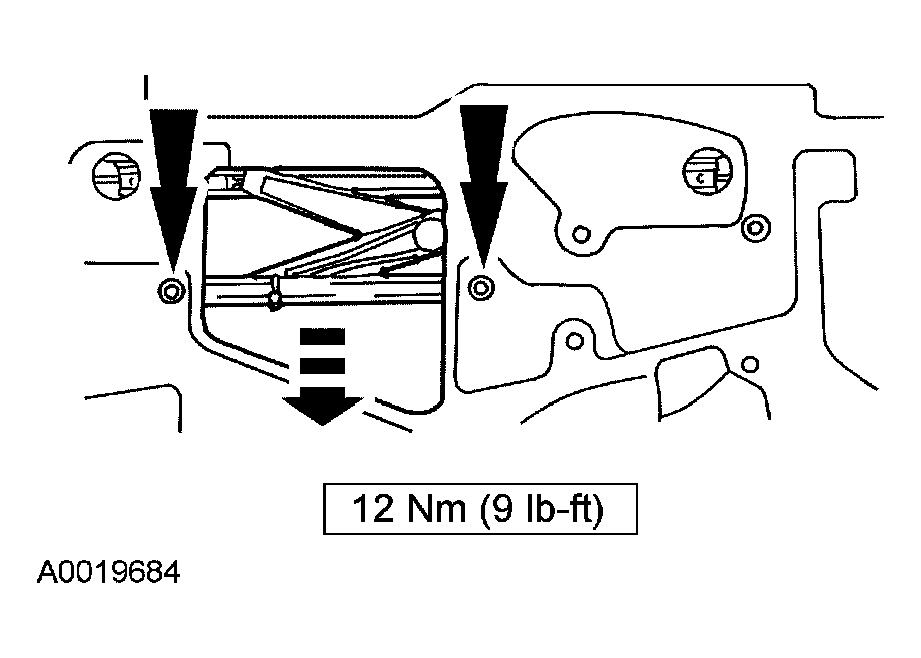

Fig 4: Pushing Window Regulator Equalizer Arm Bracket Down
Courtesy of FORD MOTOR CO.
Cycle the window regulator motor fully to verify normal operation.
Install the watershield.
Install the front door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
