Steering Column: Installation

    Vehicles with console shift

  1. Position the steering column and connect the shift lock actuator.

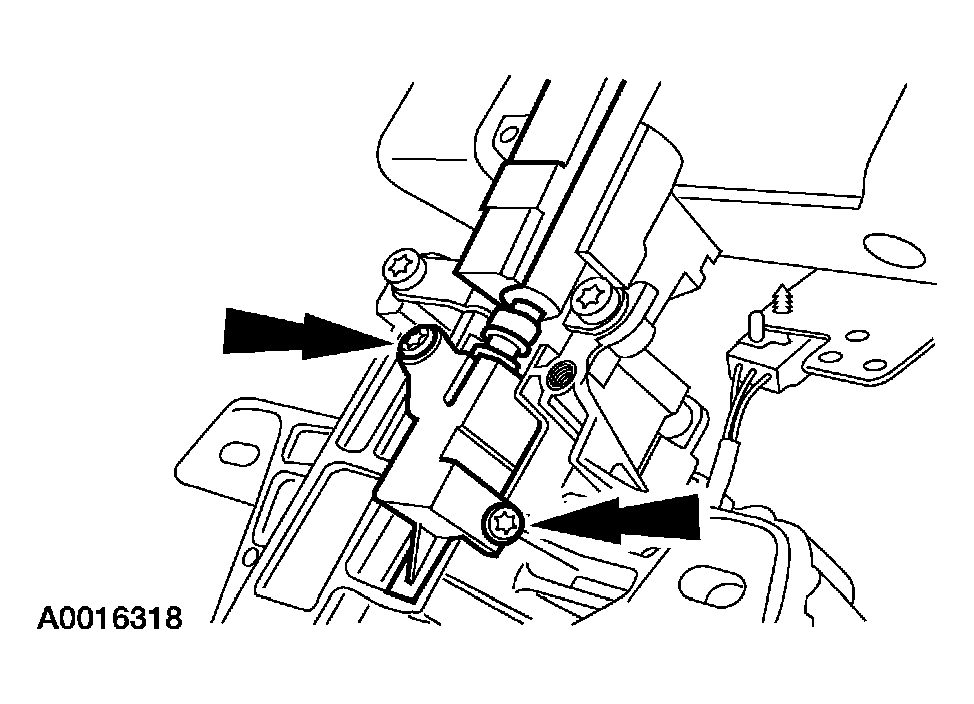

    Fig 1: Positioning Steering Column And Connect Shift Lock Actuator
    G03954726Courtesy of FORD MOTOR CO.
  2. Vehicles with column shift

  3. Position the steering column and connect the shift cable.

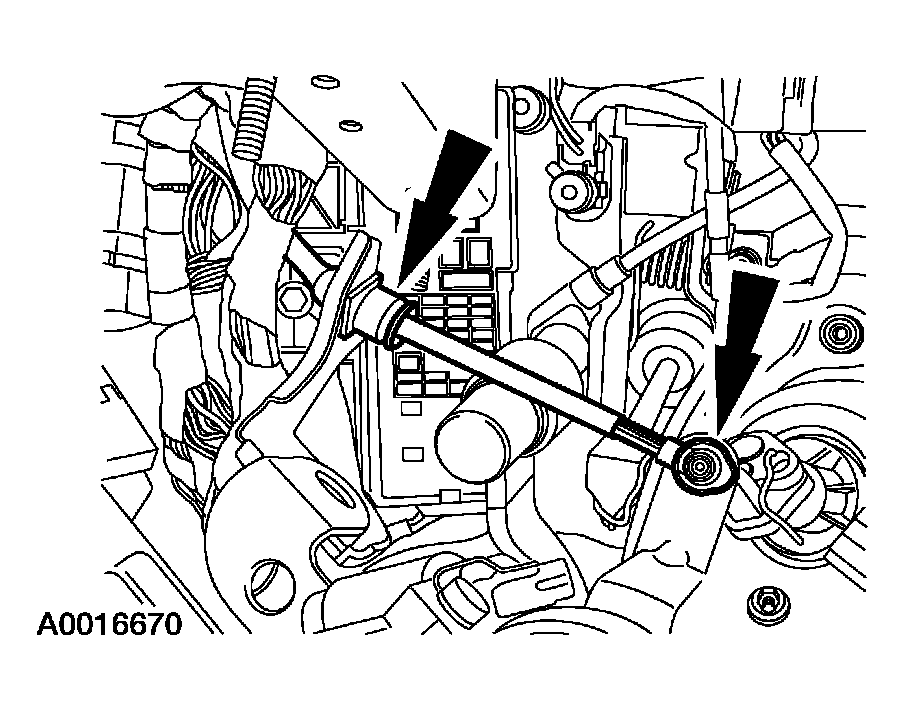

    Fig 2: Positioning Steering Column And Connect Shift Cable
    G03954725Courtesy of FORD MOTOR CO.
  4. Connect the brake shift interlock electrical connector.
    Fig 3: Connecting Brake Shift Interlock Electrical Connector
    G03954724Courtesy of FORD MOTOR CO.
  5. All Vehicles

  6. Position the steering column and the steering column absorber and install the four nuts.

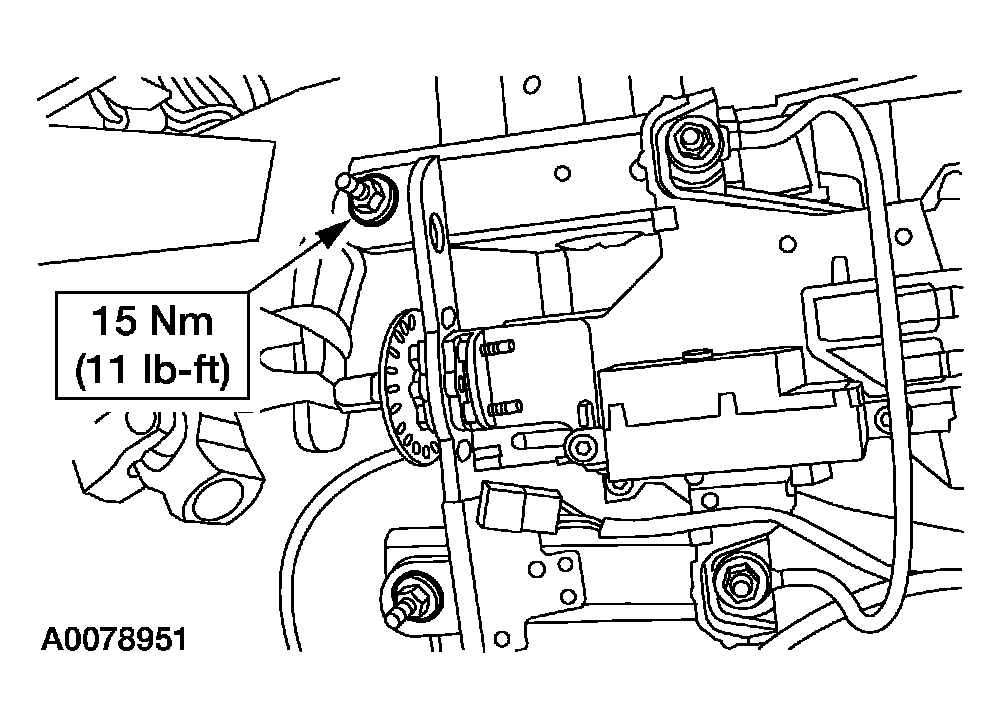

    Fig 4: Installing Steering Column Absorber Nuts - With Torque Specification
    G03954730Courtesy of FORD MOTOR CO.
  7. Connect the steering column coupling and install the bolt.

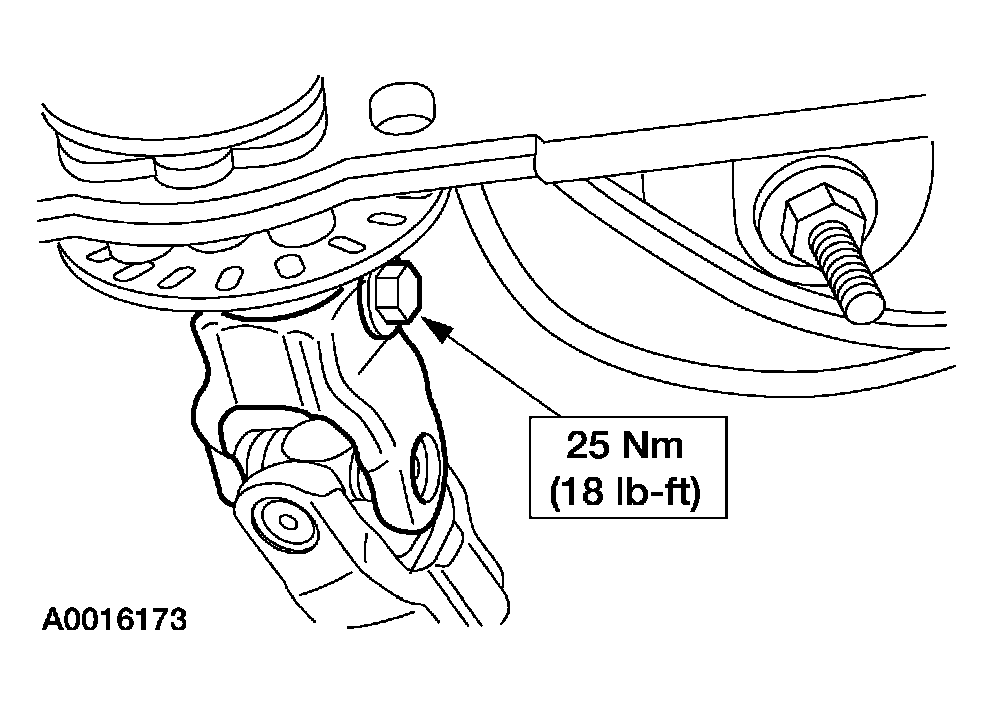

    Fig 5: Connecting Steering Column Coupling Bolt - With Torque Specification
    G03954731Courtesy of FORD MOTOR CO.
  8. Connect the ignition switch electrical connector.

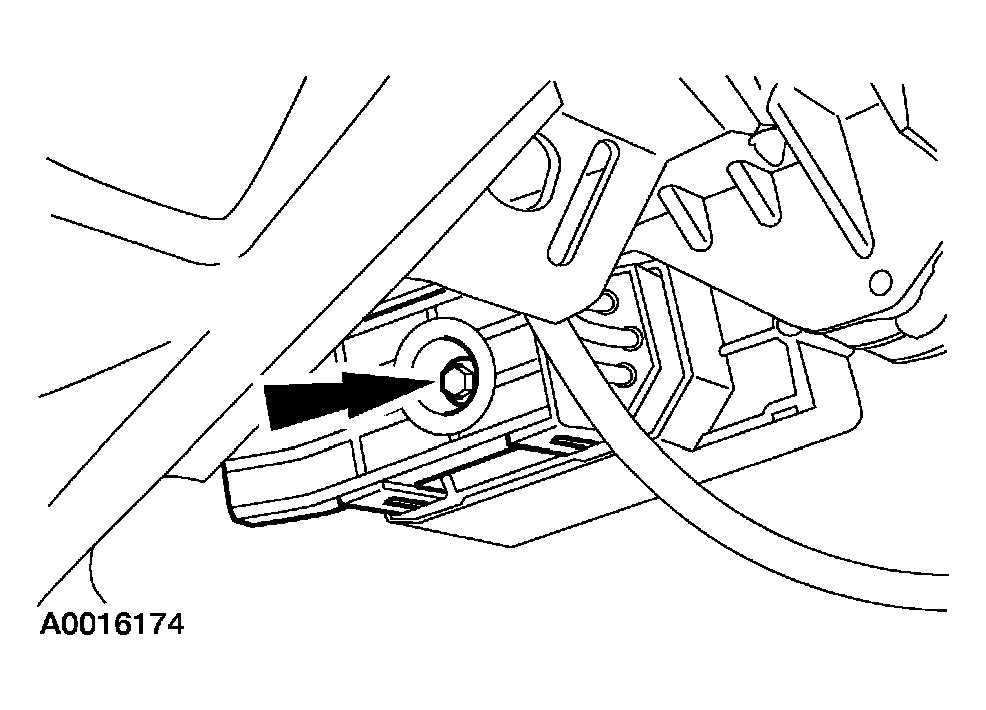

    Fig 6: Connecting Ignition Switch Electrical Connector
    G03954720Courtesy of FORD MOTOR CO.
  9. Attach the wiring routing pin to the steering column.

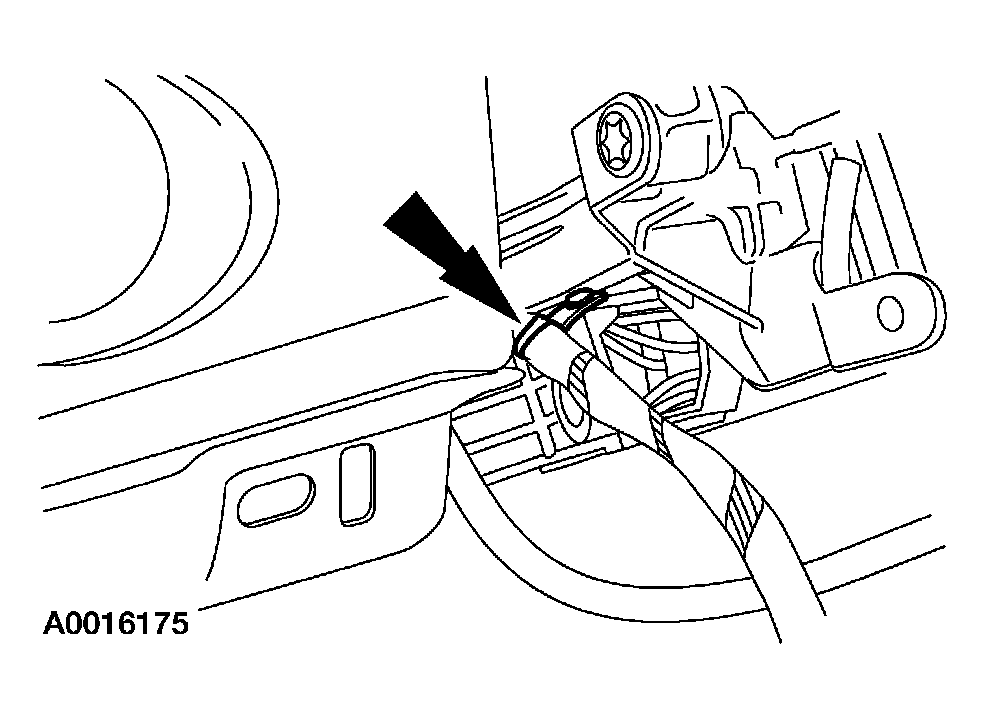

    Fig 7: Attaching Wiring Routing Pin To Steering Column
    G03954719Courtesy of FORD MOTOR CO.
  10. Position the wiring.
    1. Connect the electrical connector.
    2. Attach the wiring routing pin to the steering column.

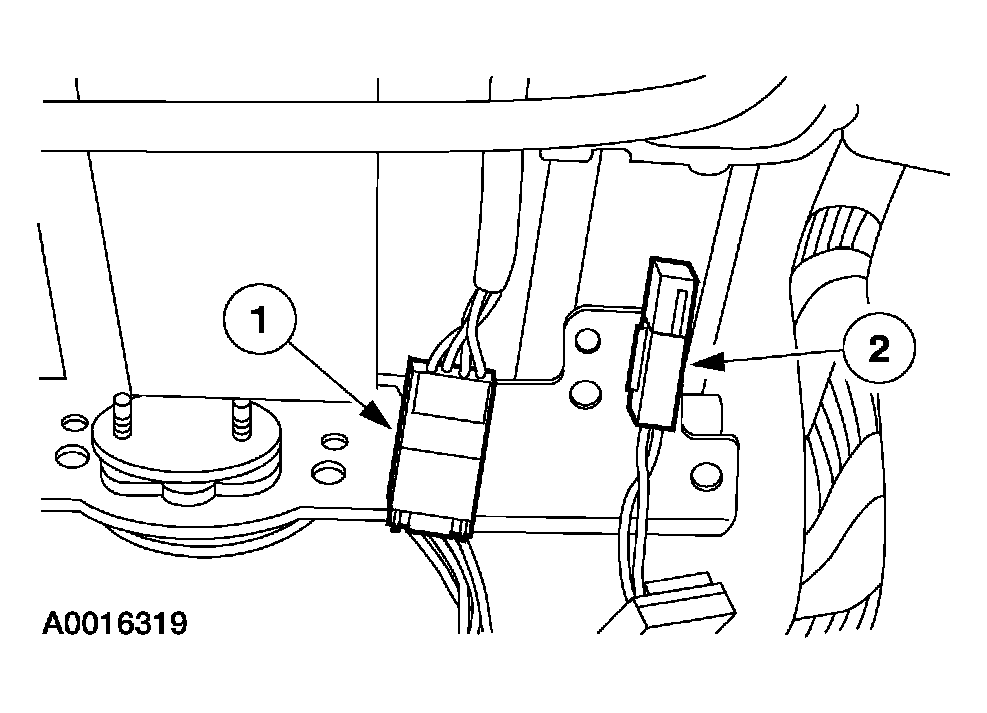

    Fig 8: Connecting Electrical Connector
    G03954718Courtesy of FORD MOTOR CO.
  11. Install the reinforcement.
    1. Position the reinforcement and install the bolts.
    2. Position the data link connector and install the bolts.

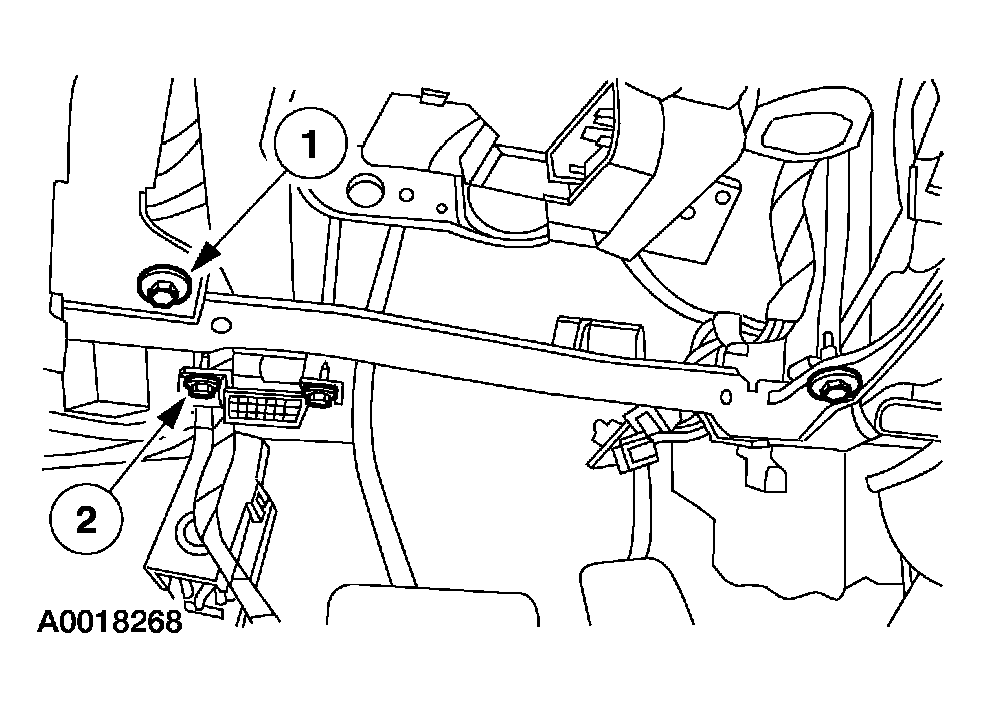

    Fig 9: Installing Reinforcement
    G03954735Courtesy of FORD MOTOR CO.
  12. Install the lower steering column opening cover with reinforcement.
    1. Position the lower steering column opening cover with reinforcement to the instrument panel and push in at top, seating the retaining clips.
    2. Install the bolts.
    Fig 10: Installing Lower Steering Column Opening Cover With Reinforcement
    G03954736Courtesy of FORD MOTOR CO.
  13. If equipped with a column shift, reposition the shift indicator tube.
    1. Reposition the shift indicator tube and install the screw.
    2. Attach the shift indicator cable.

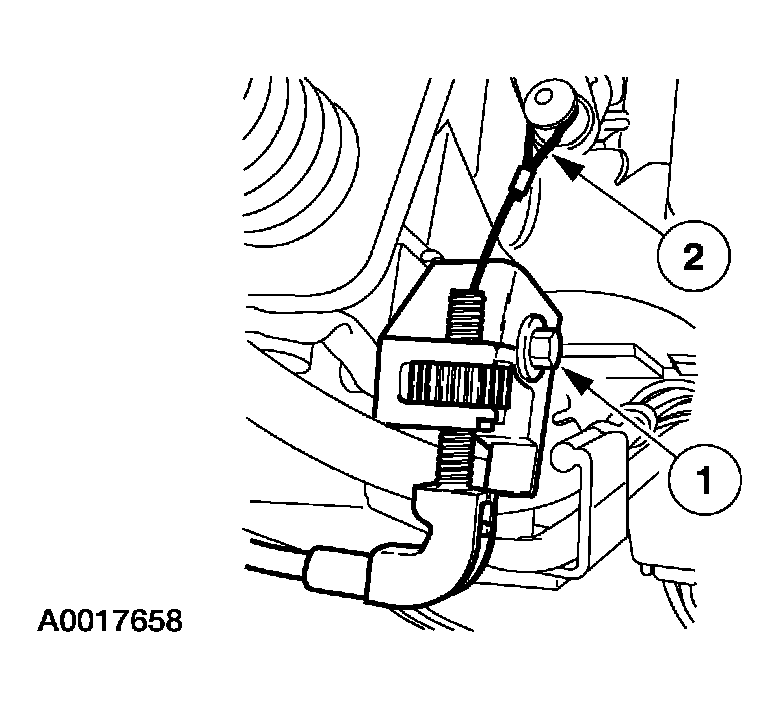

    Fig 11: Repositioning Shift Indicator Tube
    G03954737Courtesy of FORD MOTOR CO.
  14. Repower the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
