Removal and Installation

Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
Remove the bolt and the front wheel speed sensor.

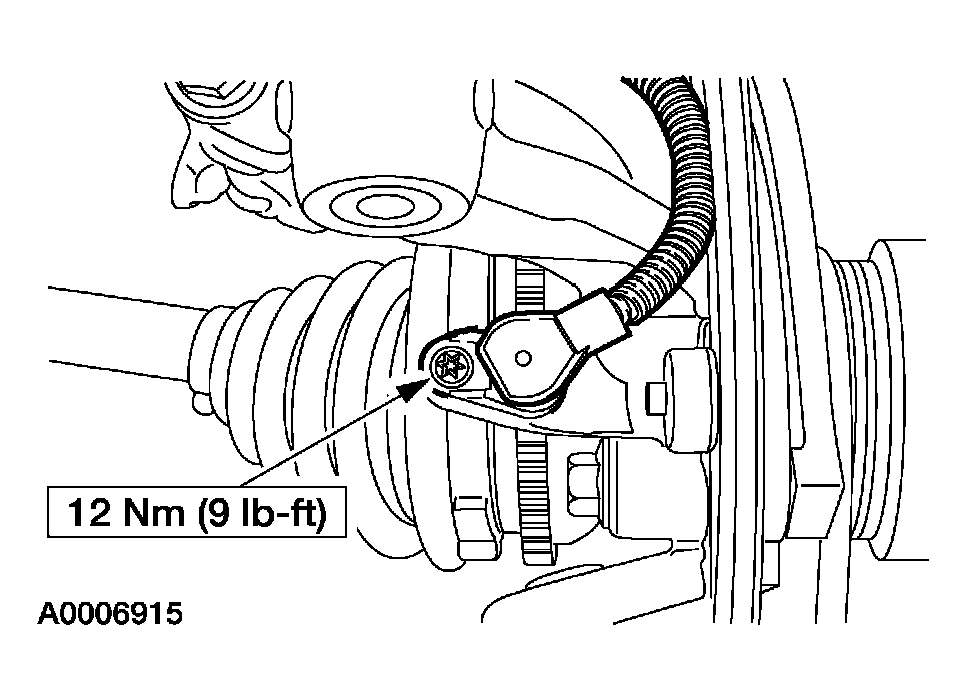

Fig 1: Locating Front Wheel Speed Sensor - With Torque Specification
Courtesy of FORD MOTOR CO.
Disengage the wiring from the routing brackets.

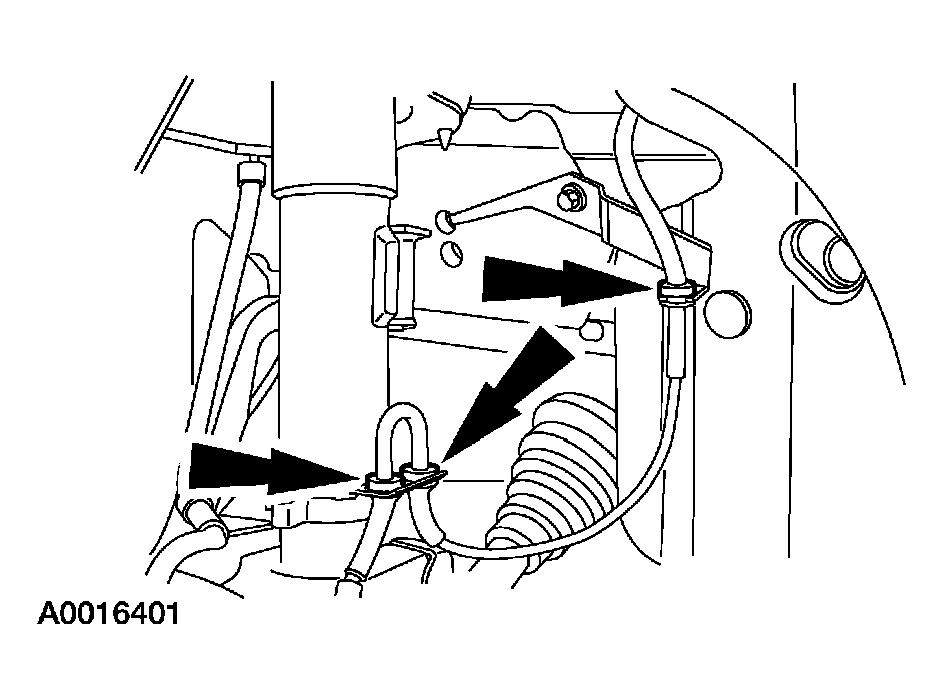

Fig 2: Disengaging Wiring From Routing Brackets
Courtesy of FORD MOTOR CO.
Remove the fender splash shield retainer.

Fig 3: Removing Fender Splash Shield Retainer
Courtesy of FORD MOTOR CO.
Pull back on the splash shield and disconnect the wiring.

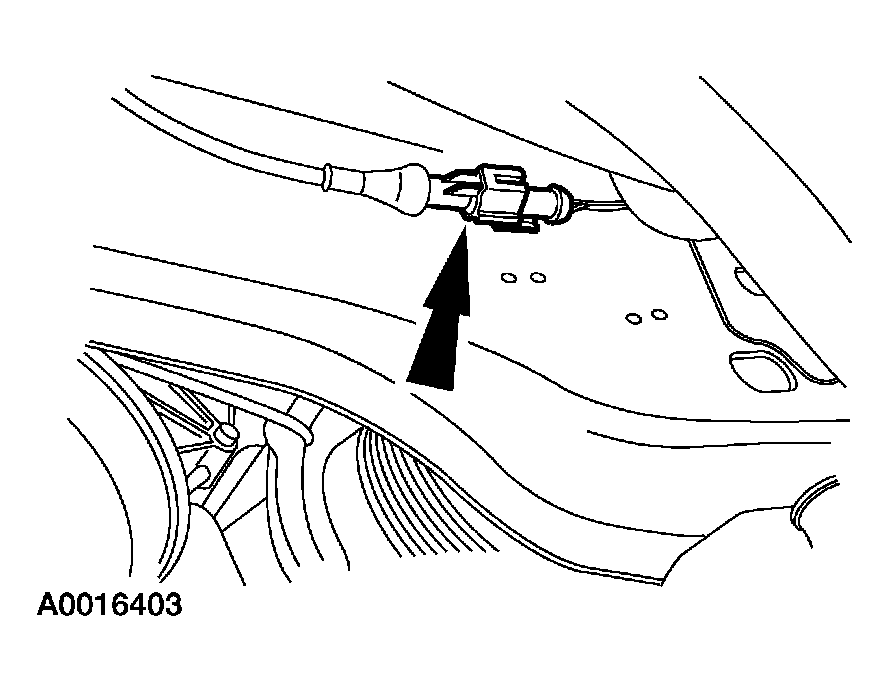

Fig 4: Disconnecting Wiring
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
