Fuel Pump Driver Module (FPDM): Notes

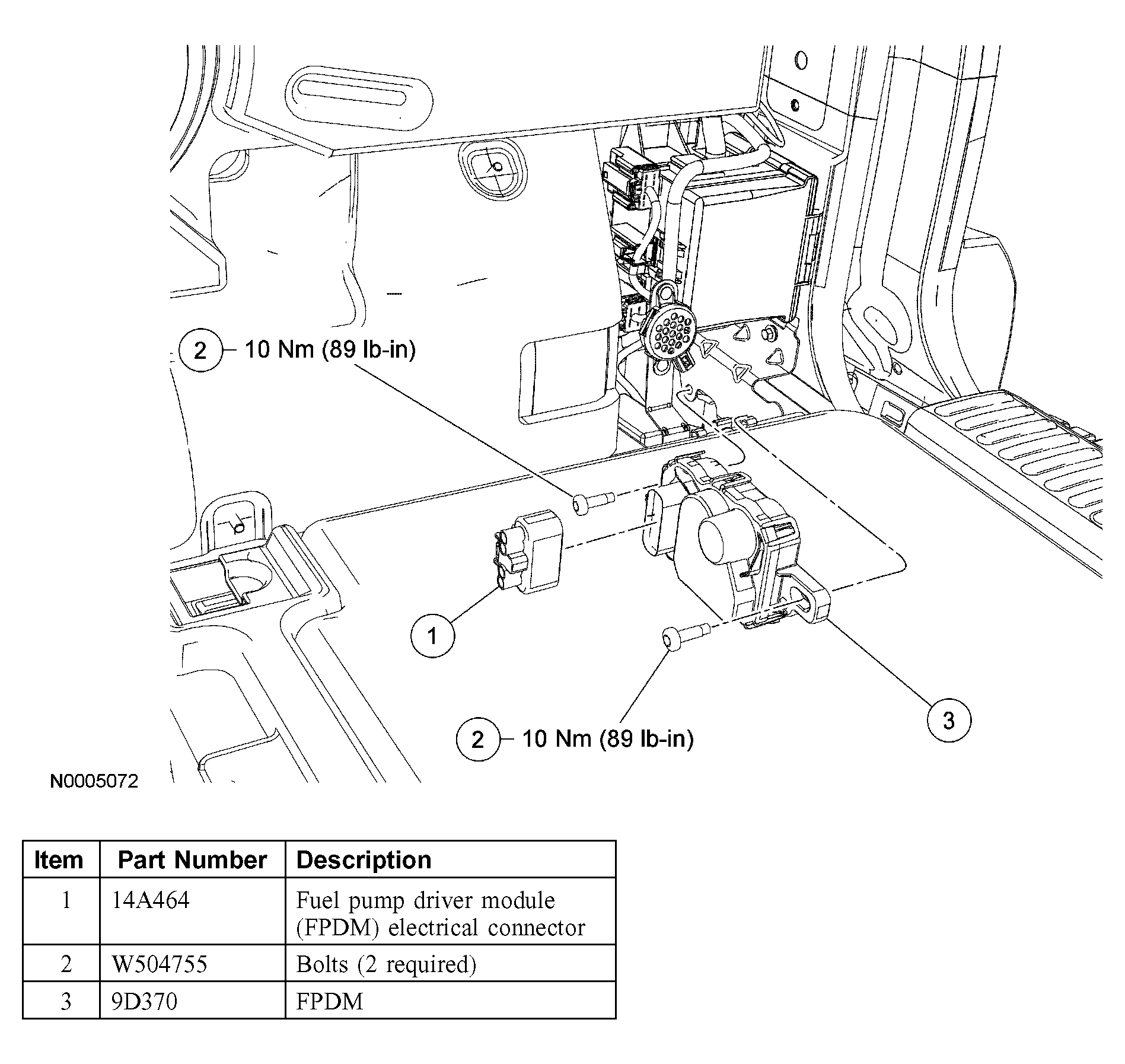

Fig 1: Displaying Fuel Pump Driver Module (FPDM) Components With Torque Specifications
G03948393Courtesy of FORD MOTOR CO.
