Cylinder Head Temperature (CHT) Sensor: Notes

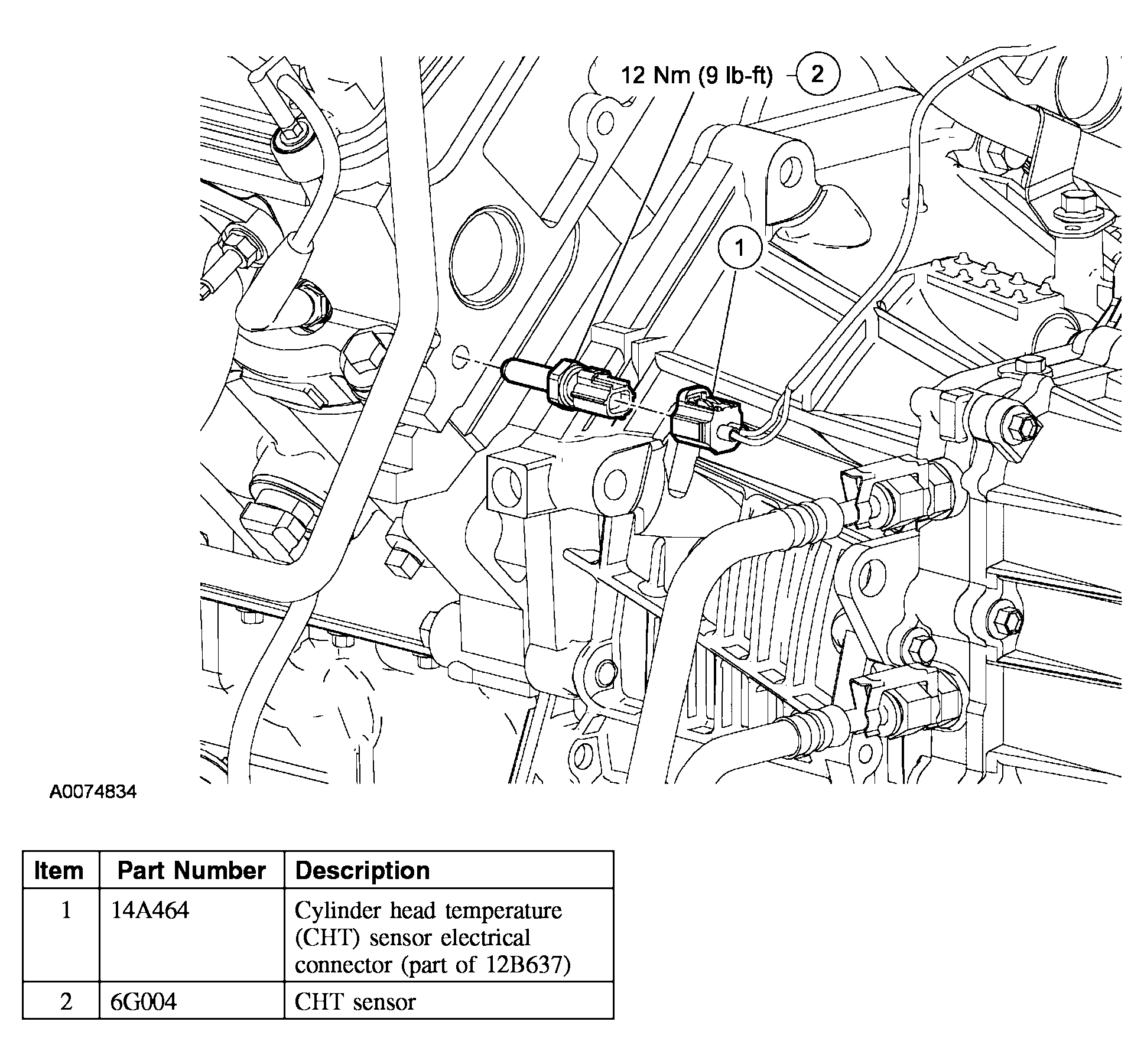

Fig 1: Installing Cylinder Head Temperature Sensor

G04004513

Courtesy of FORD MOTOR CO.
