Starter Motor: Notes

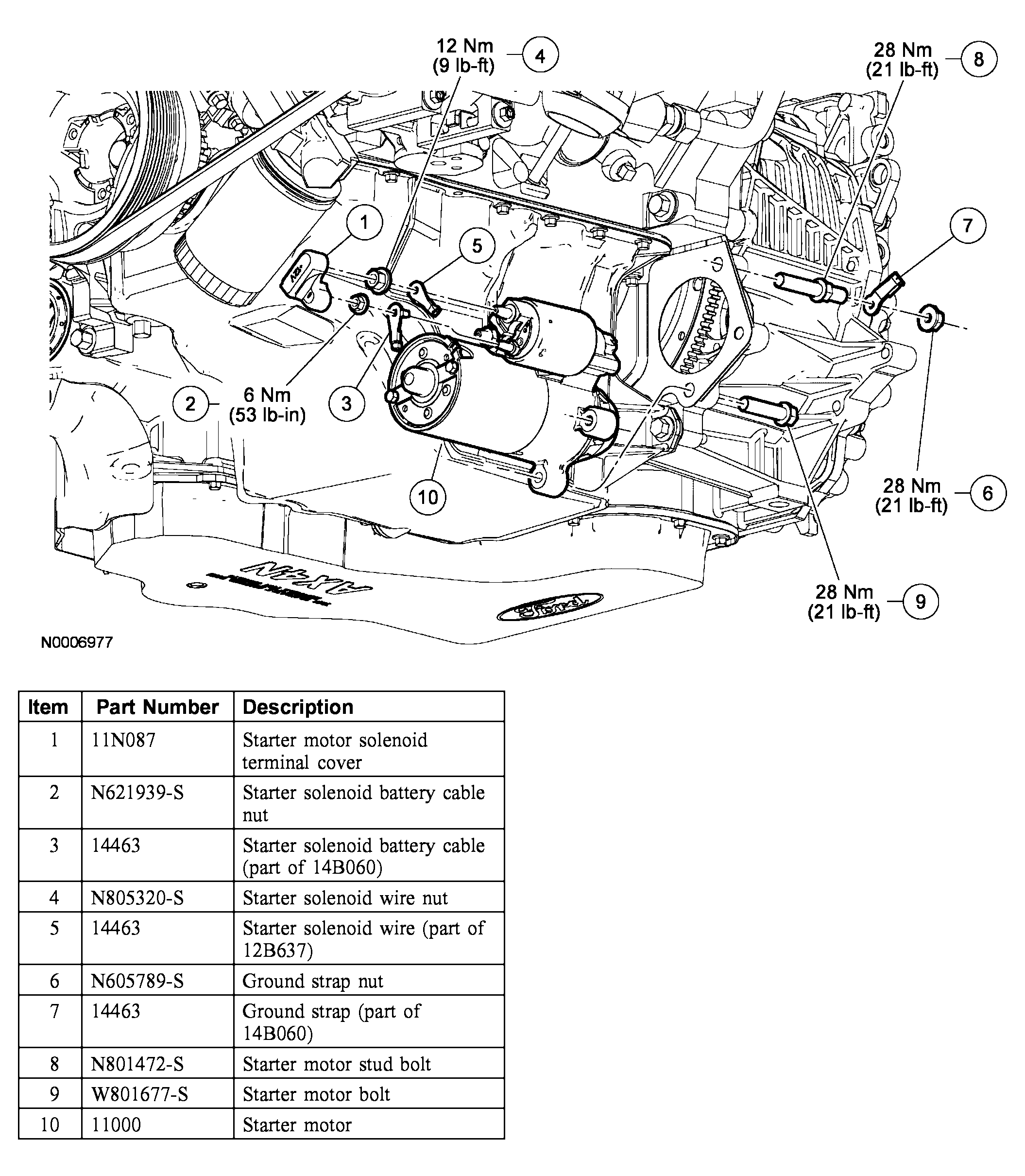

Fig 1: Removing & Installing Starter Motor

G04004472

Courtesy of FORD MOTOR CO.
