Connector Circuit Reference

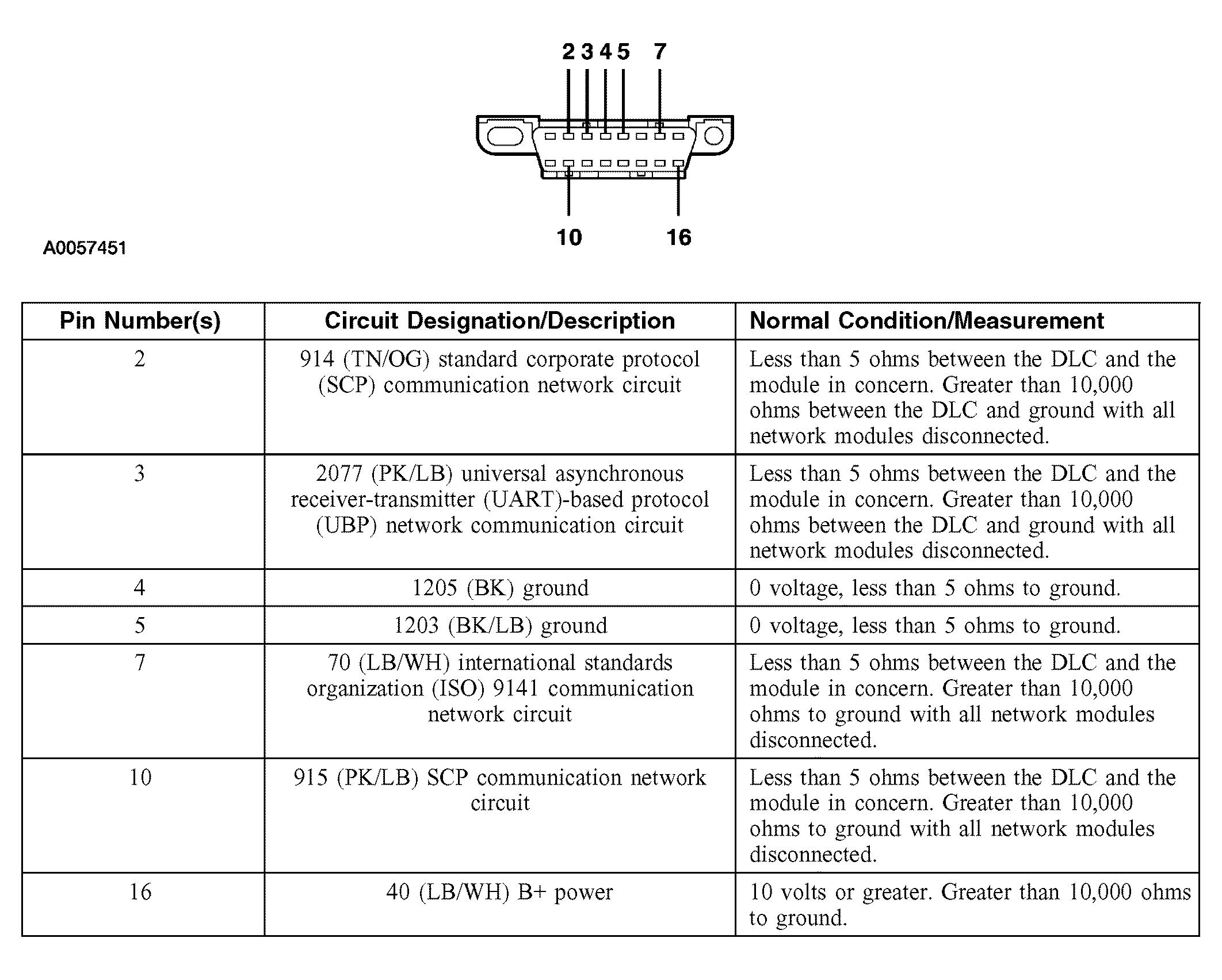

Fig 1: Connector Circuit Reference - Data Link Connector (DLC) C251

Courtesy of FORD MOTOR CO.

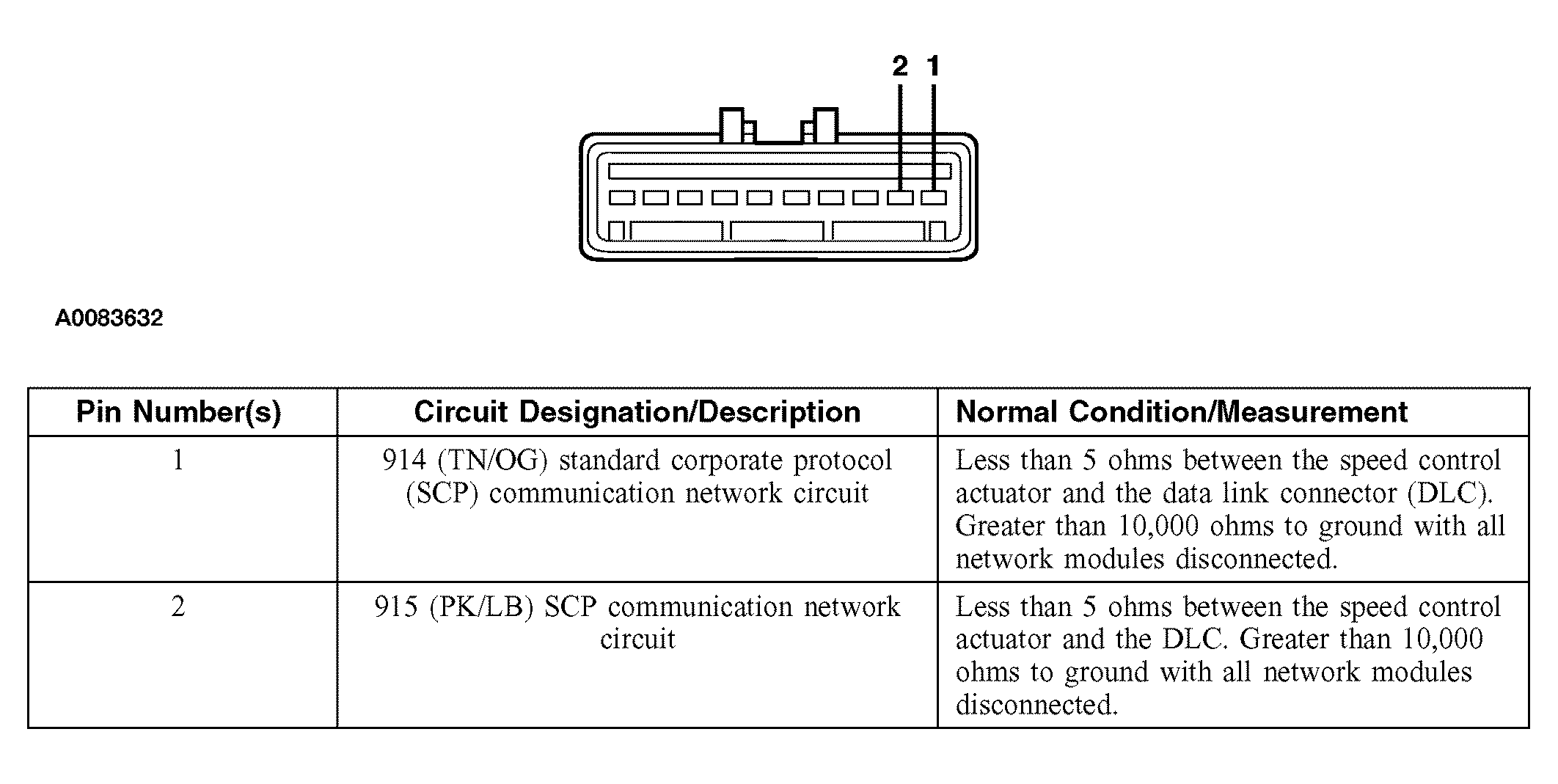

Fig 2: Connector Circuit Reference - Speed Control Actuator C122

Courtesy of FORD MOTOR CO.

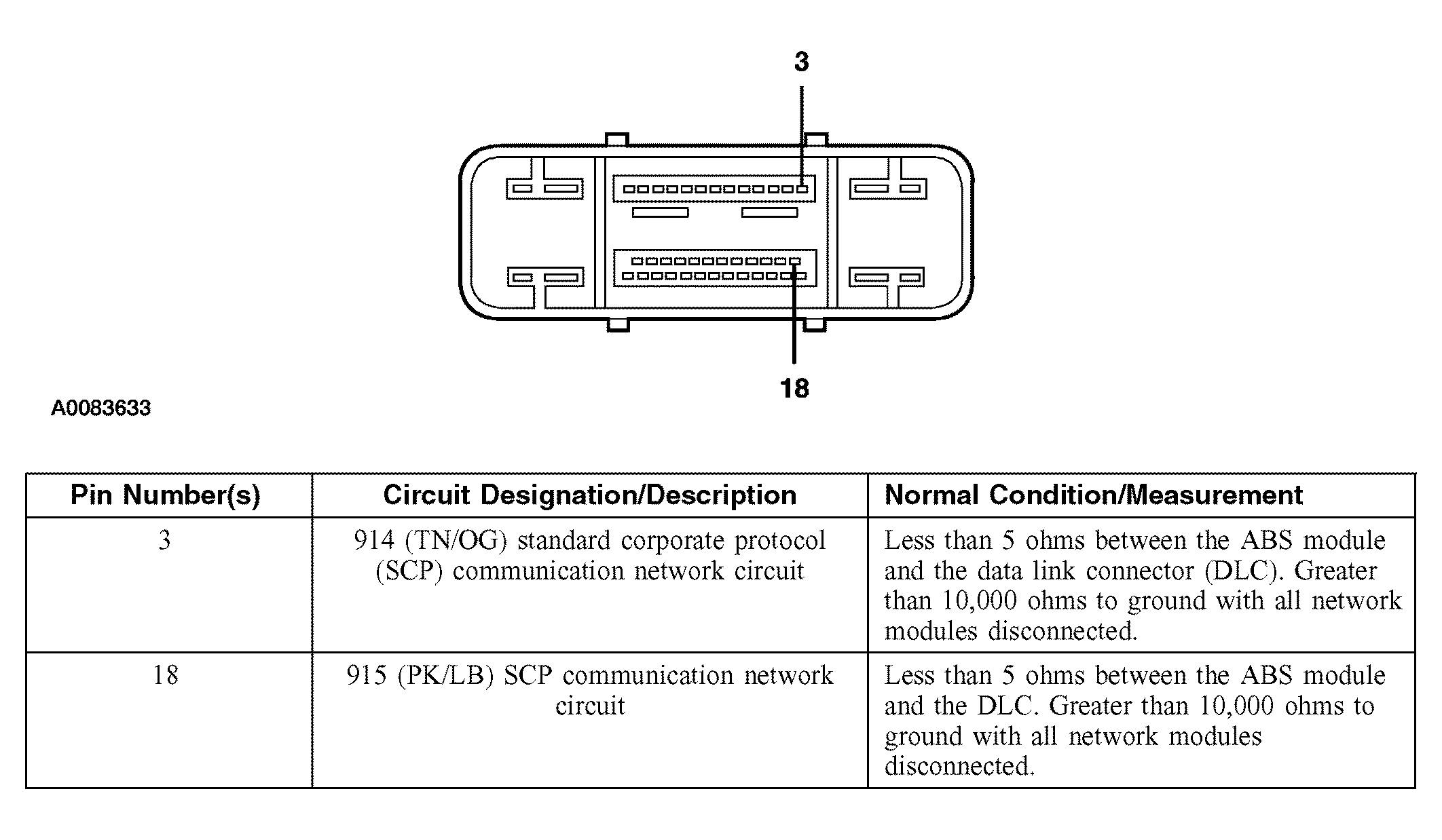

Fig 3: Connector Circuit Reference - Anti-Lock Brake System (ABS) Module C155

Courtesy of FORD MOTOR CO.

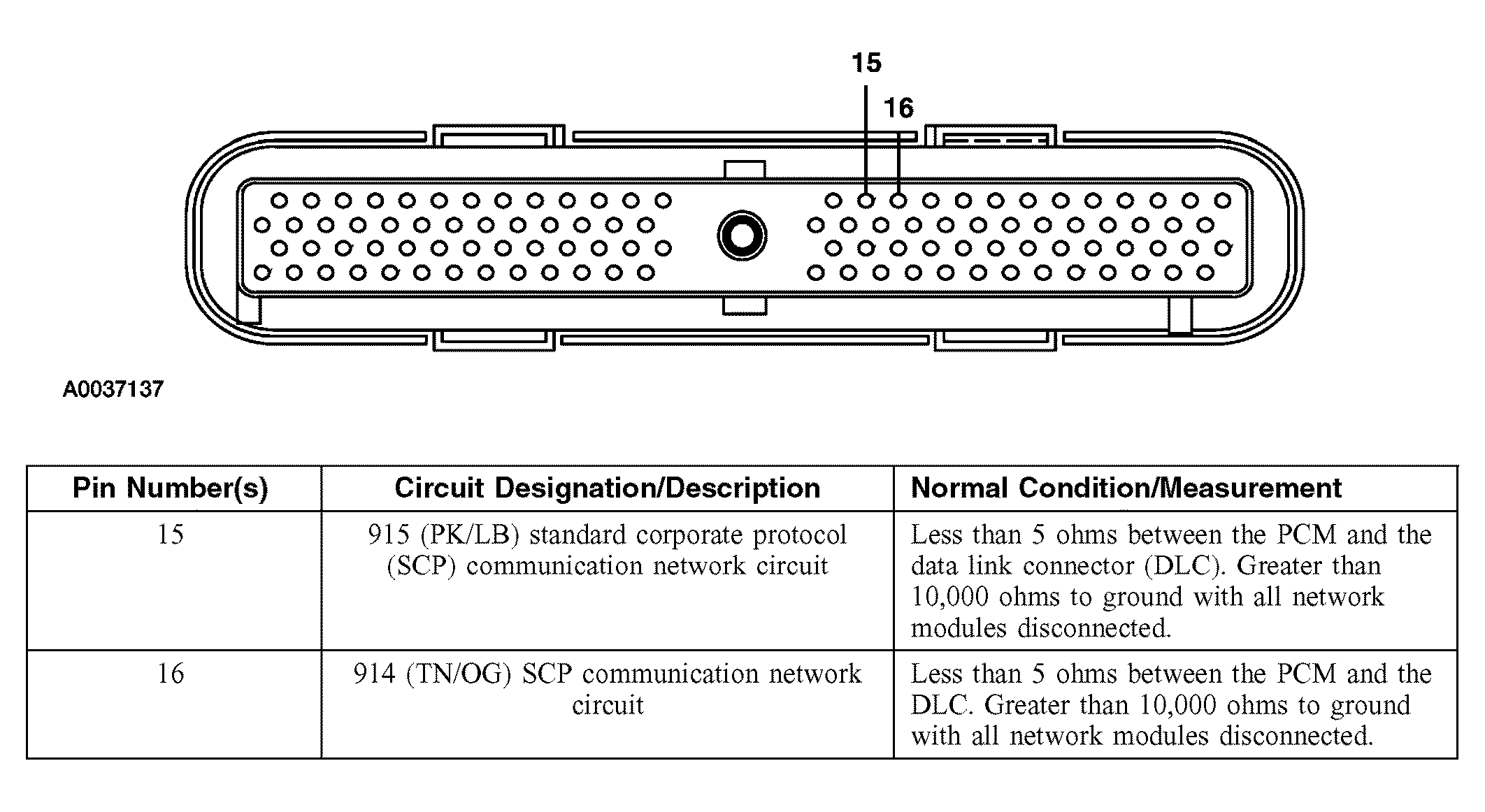

Fig 4: Connector Circuit Reference - Powertrain Control Module (PCM) C175

Courtesy of FORD MOTOR CO.

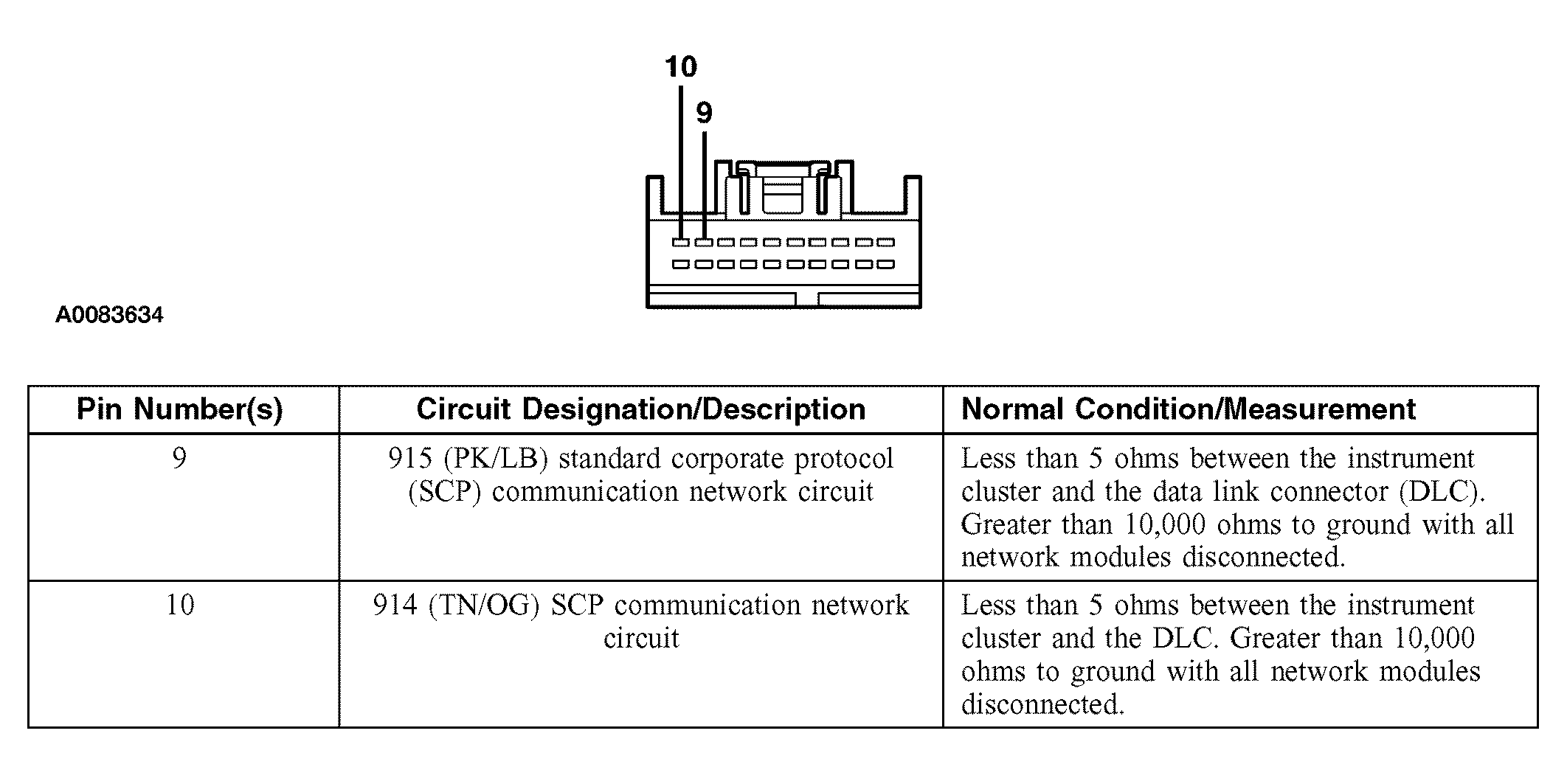

Fig 5: Connector Circuit Reference - Instrument Cluster C220a

Courtesy of FORD MOTOR CO.

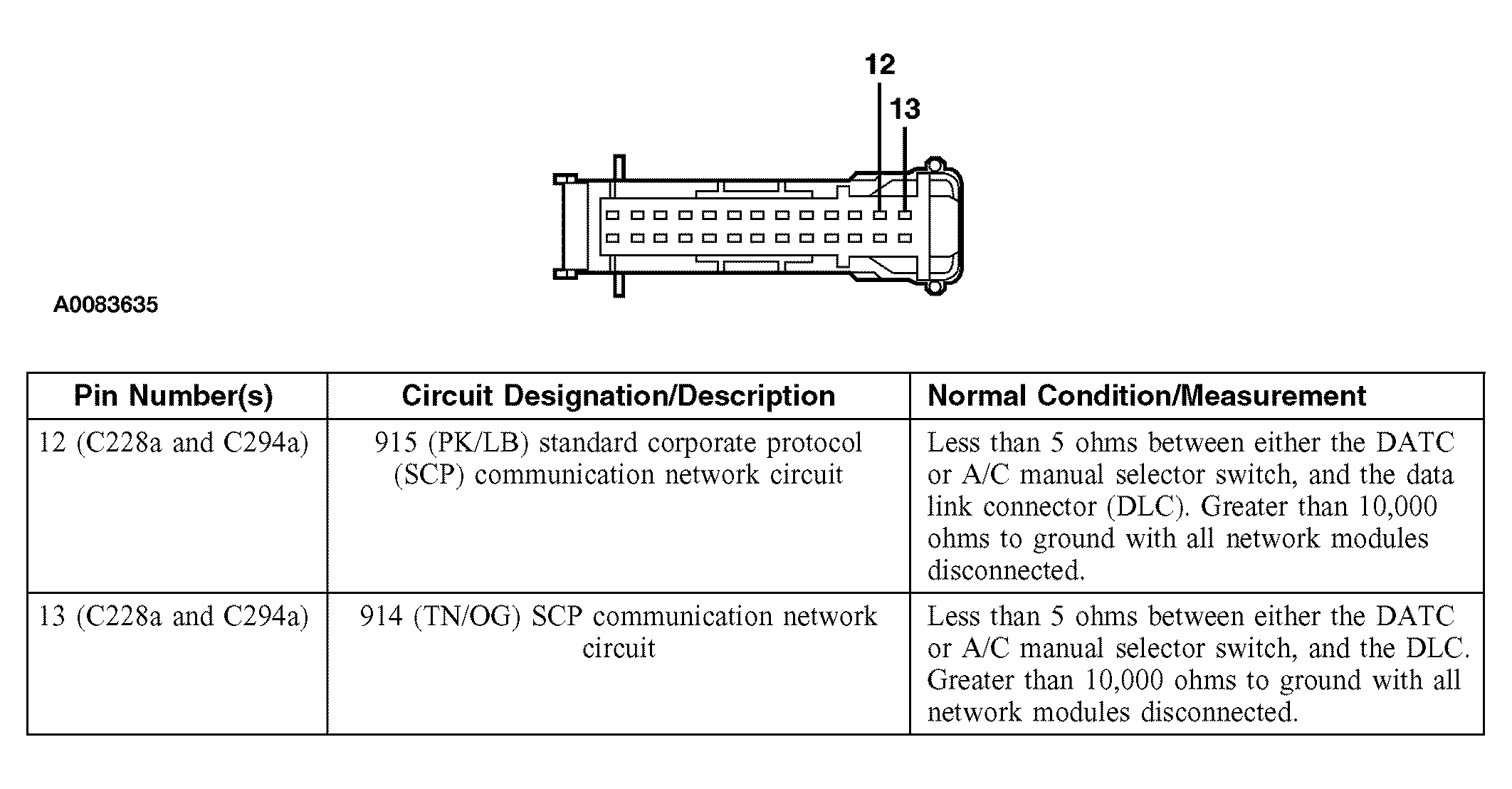

Fig 6: Connector Circuit Reference - (DATC) C228a And A/C Manual Function Selector Switch C294a

Courtesy of FORD MOTOR CO.

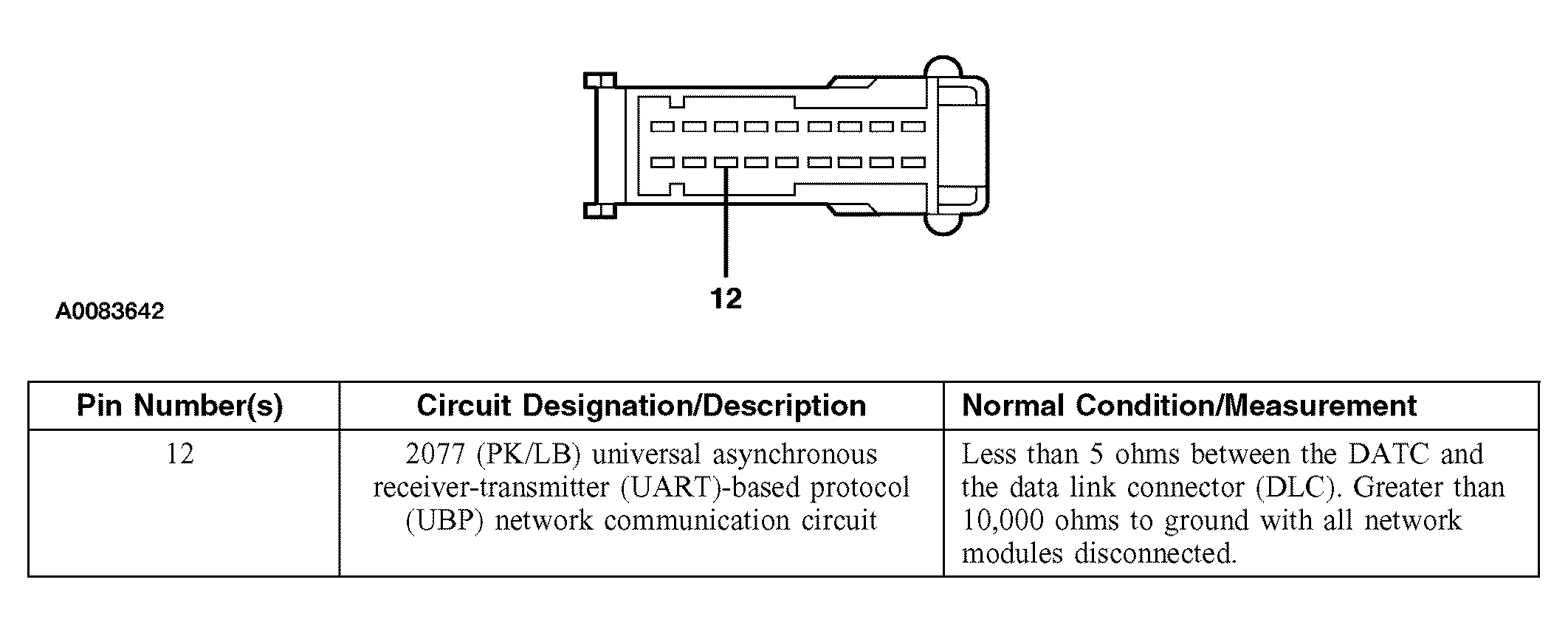

Fig 7: Connector Circuit Reference - Dual Automatic Temperature Control (DATC) C228b

Courtesy of FORD MOTOR CO.

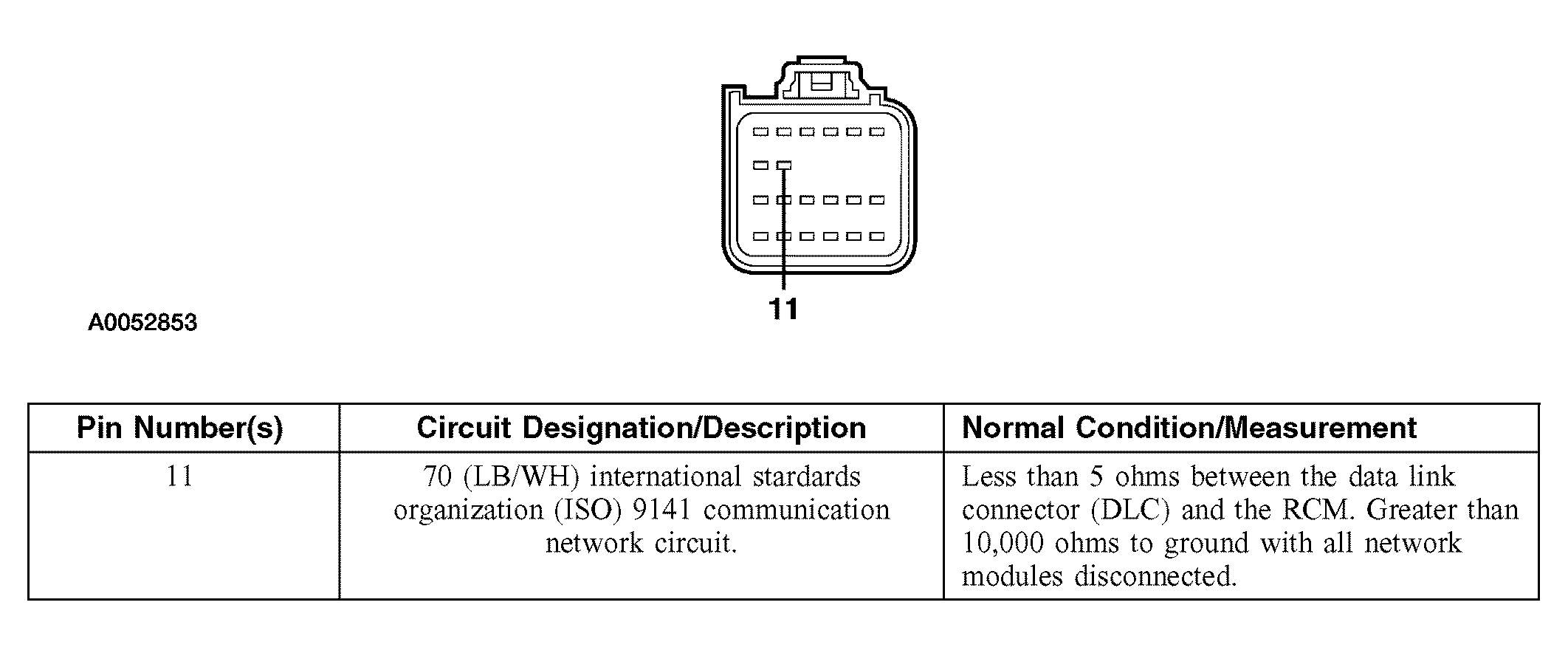

Fig 8: Connector Circuit Reference - Restraint Control Module (RCM) C310a

Courtesy of FORD MOTOR CO.

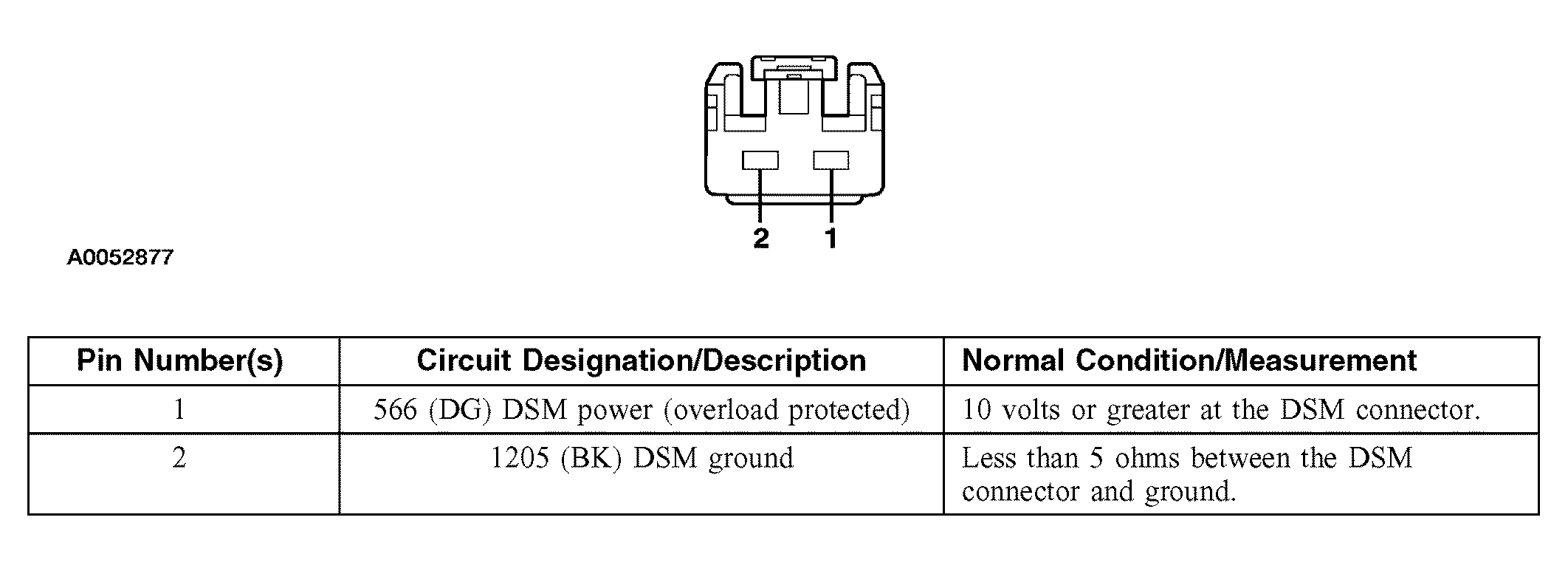

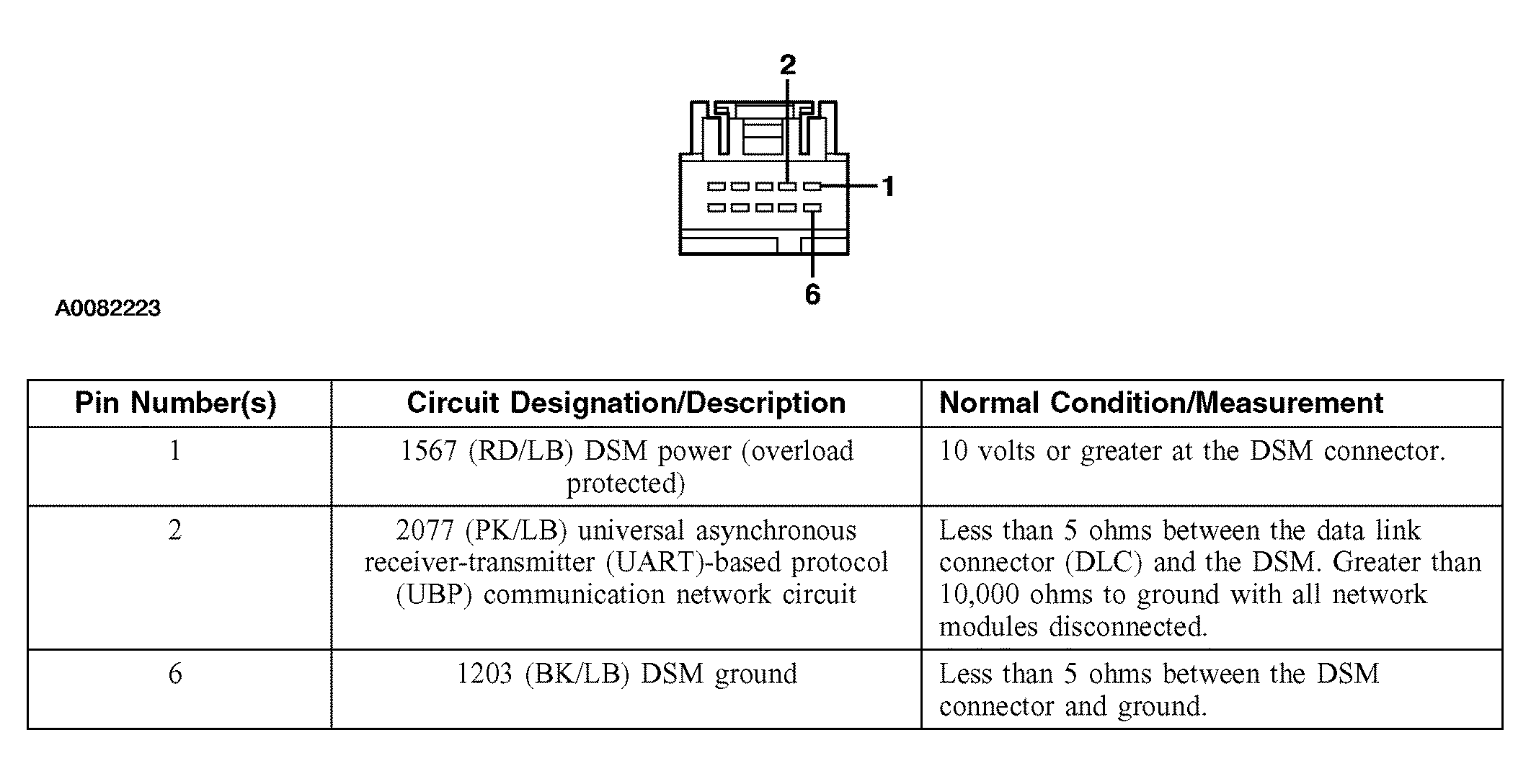

Fig 9: Connector Circuit Reference - Driver Seat Module (DSM) C341a

Courtesy of FORD MOTOR CO.

Fig 10: Connector Circuit Reference - Driver Seat Module (DSM) C341c

Courtesy of FORD MOTOR CO.

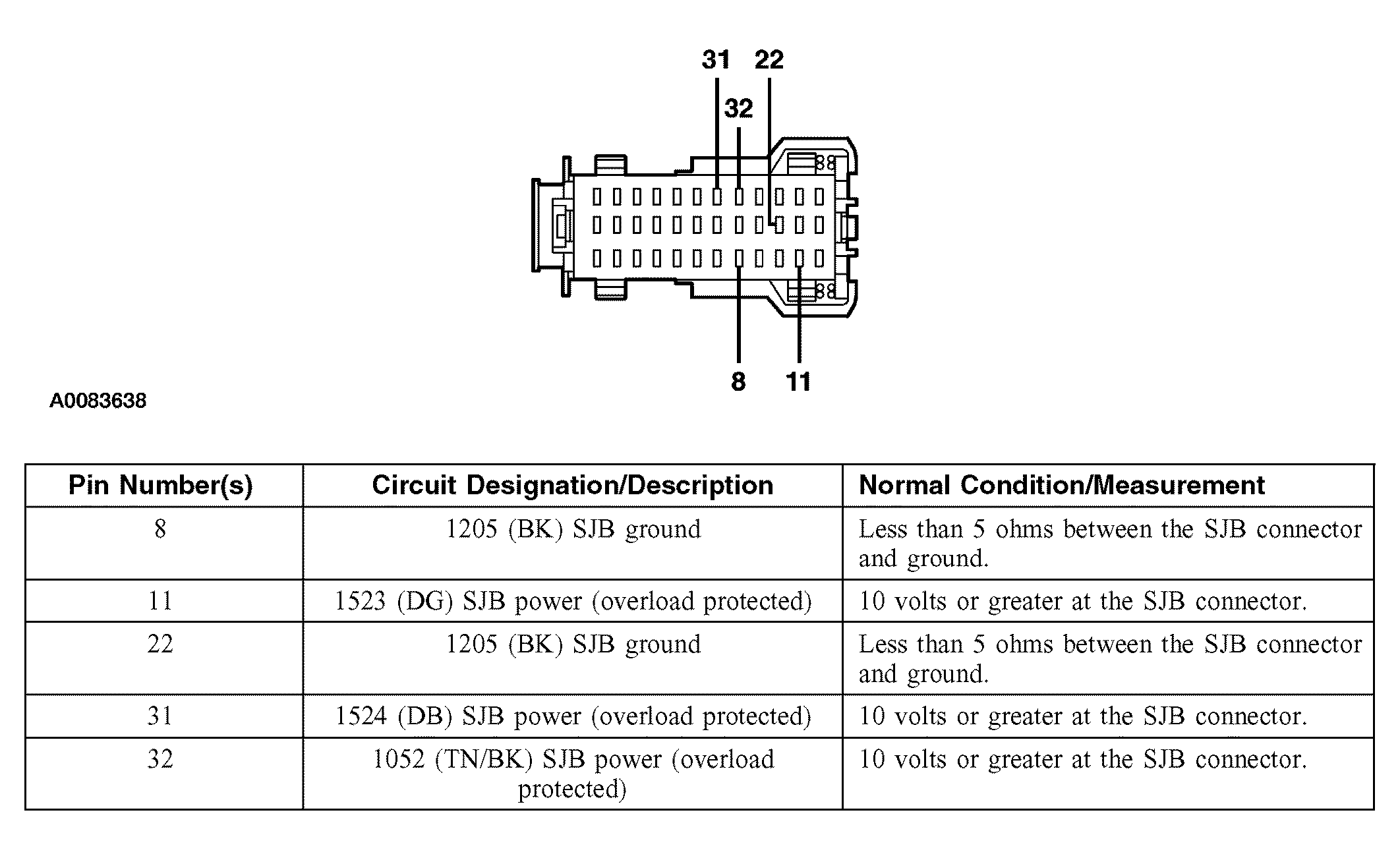

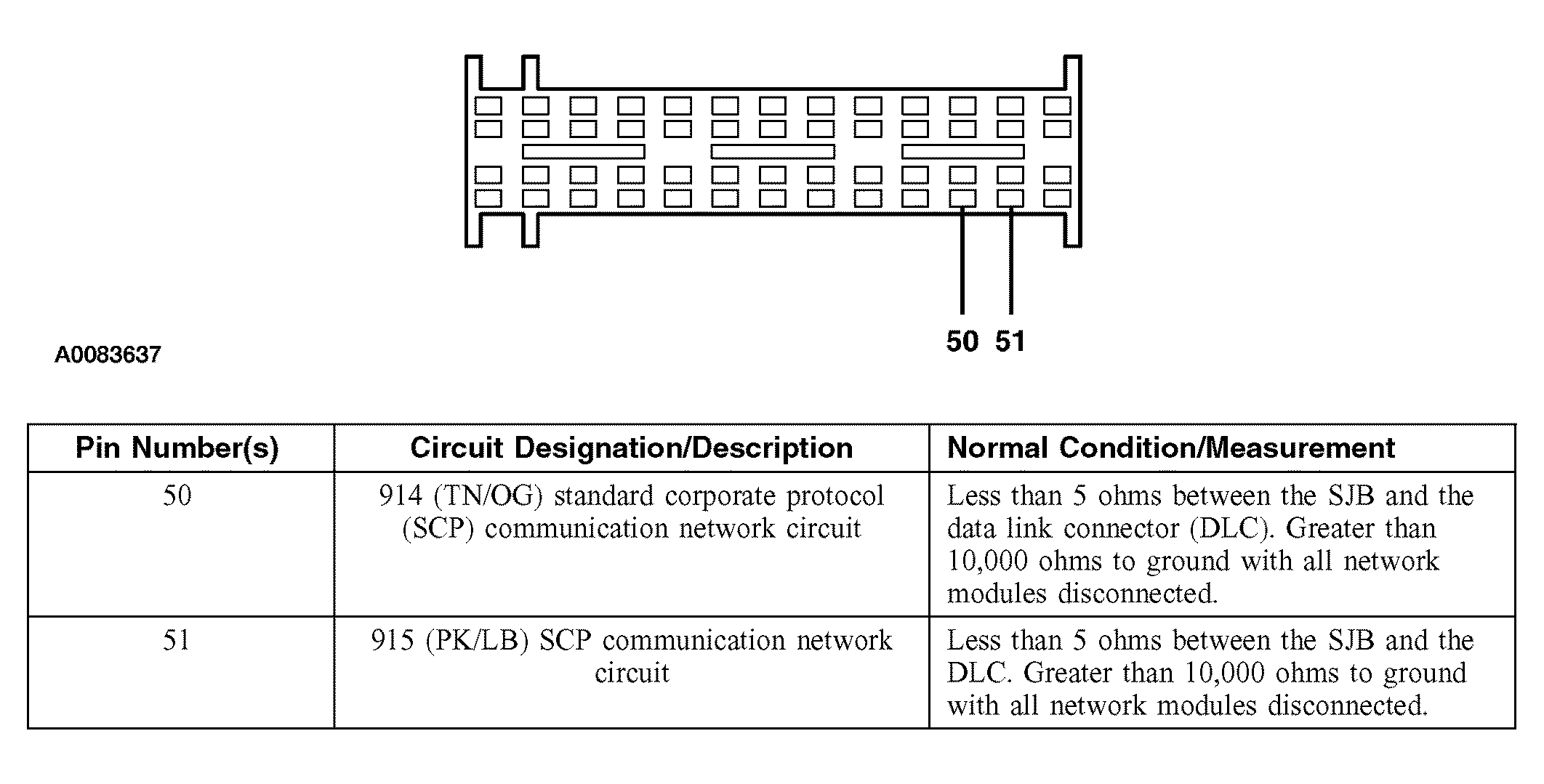

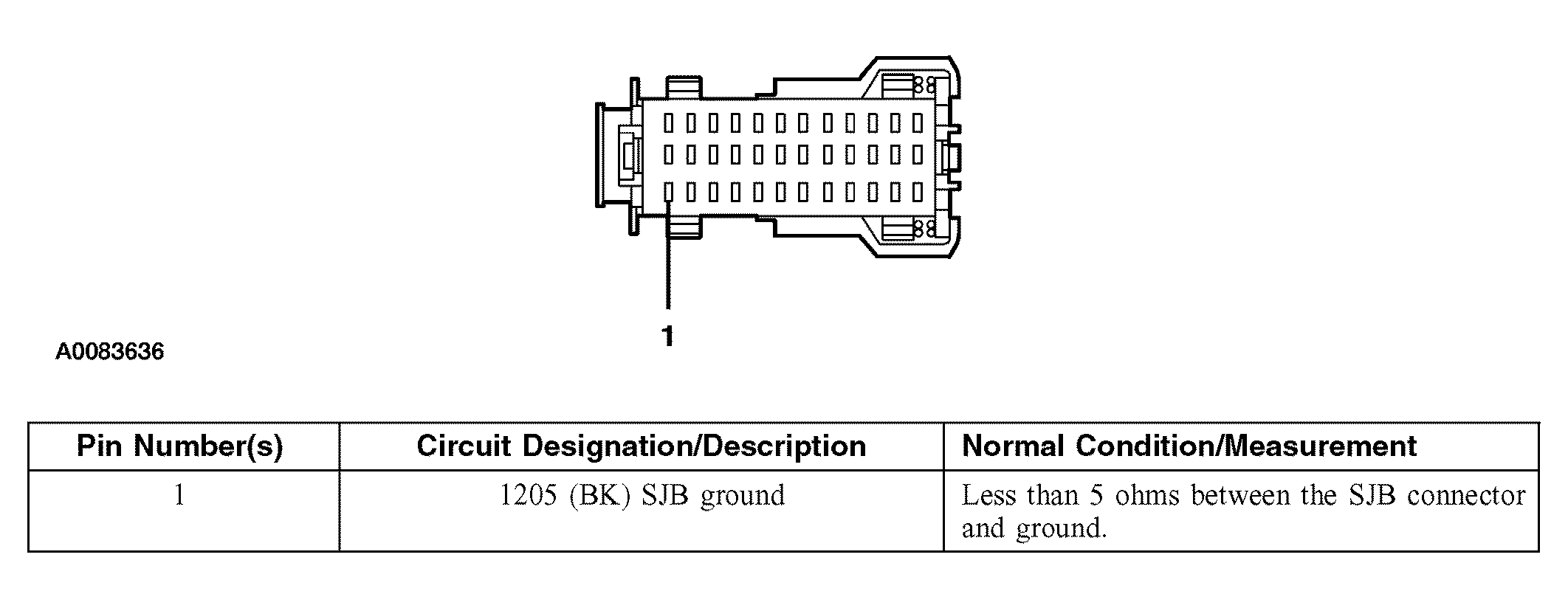

Fig 11: Connector Circuit Reference - Smart Junction Box (SJB) C2280a

Courtesy of FORD MOTOR CO.

Fig 12: Connector Circuit Reference - Smart Junction Box (SJB) C2280b

Courtesy of FORD MOTOR CO.

Fig 13: Connector Circuit Reference - Smart Junction Box (SJB) C2280h

Courtesy of FORD MOTOR CO.

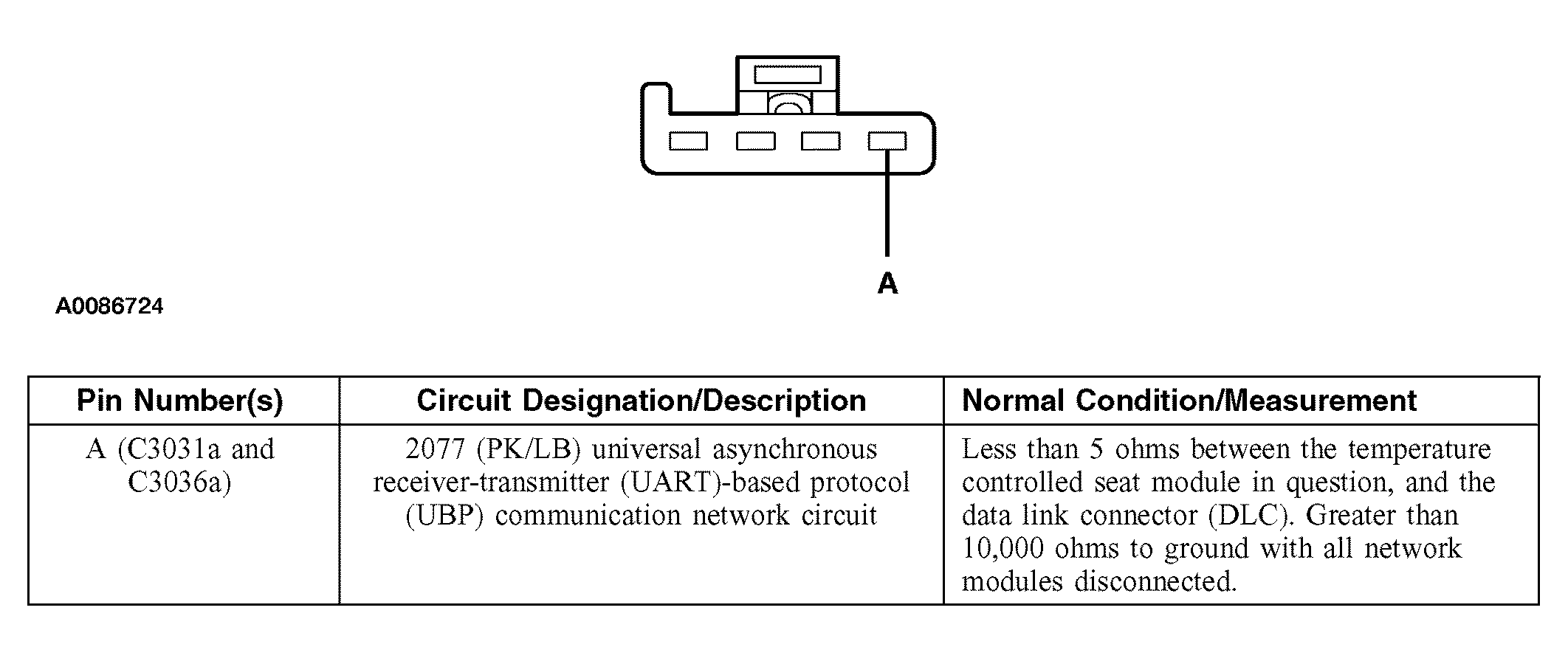

Fig 14: Connector Circuit Reference - Driver Temperature Controlled Seat Module C3031a And Passenger Temperature Controlled Seat Module C3036a

Courtesy of FORD MOTOR CO.

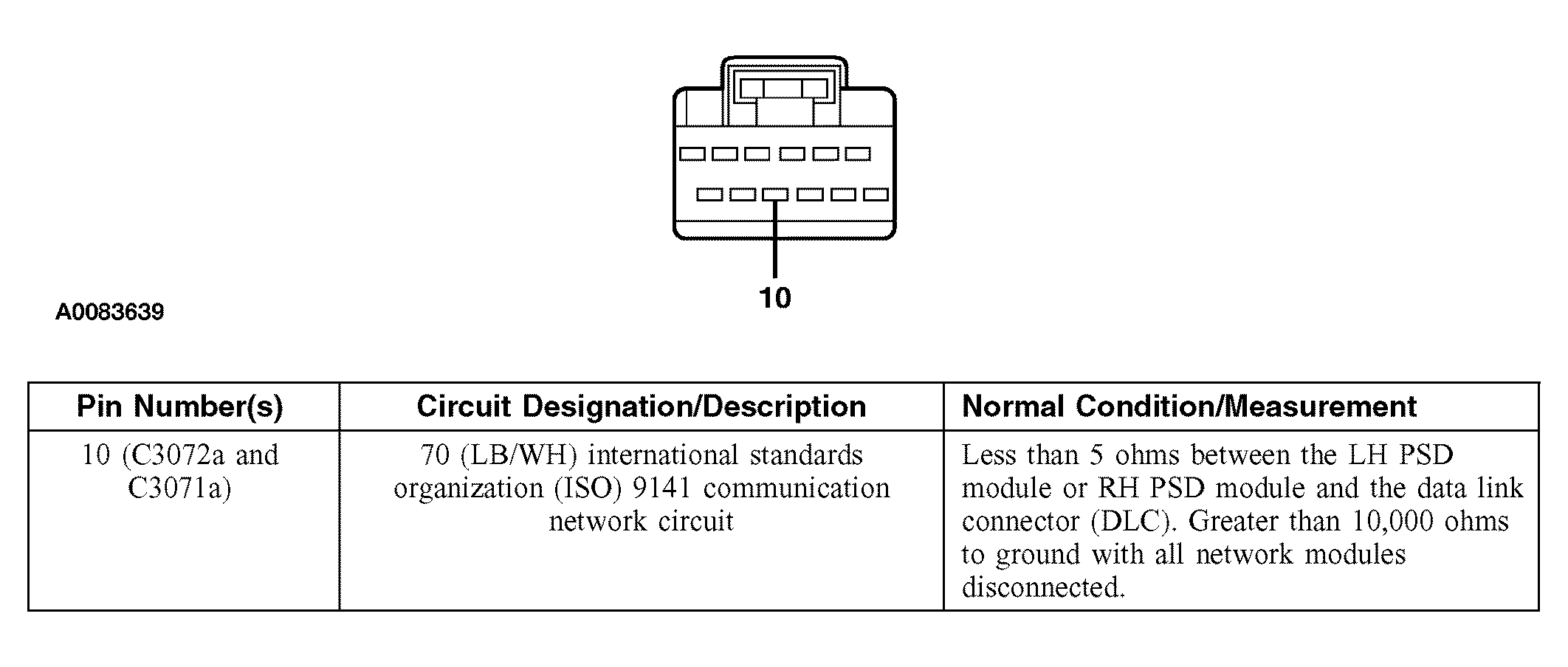

Fig 15: Connector Circuit Reference - (LH) Power Sliding Door (PSD) Module C3072a And (RH) PSD Module C3071a

Courtesy of FORD MOTOR CO.

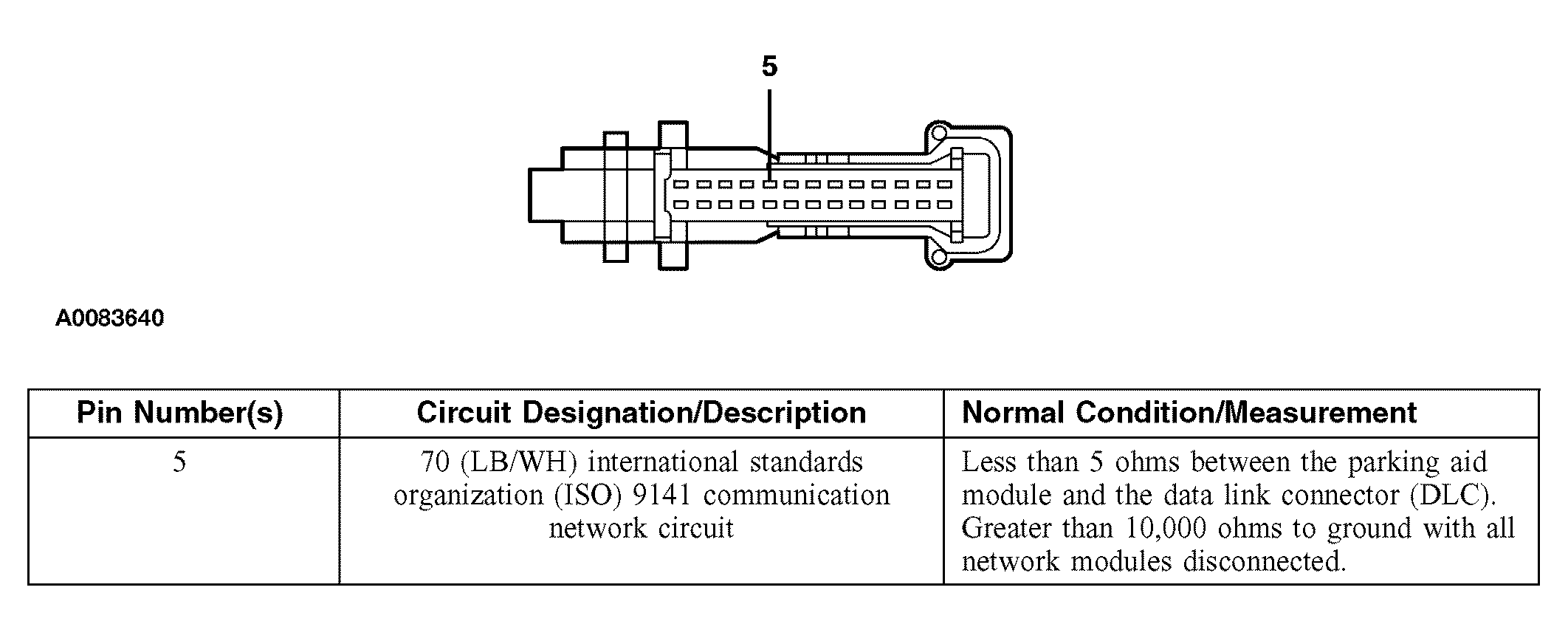

Fig 16: Connector Circuit Reference - Parking Aid Module C4014 - 8 Sensor (Front And Rear)

Courtesy of FORD MOTOR CO.

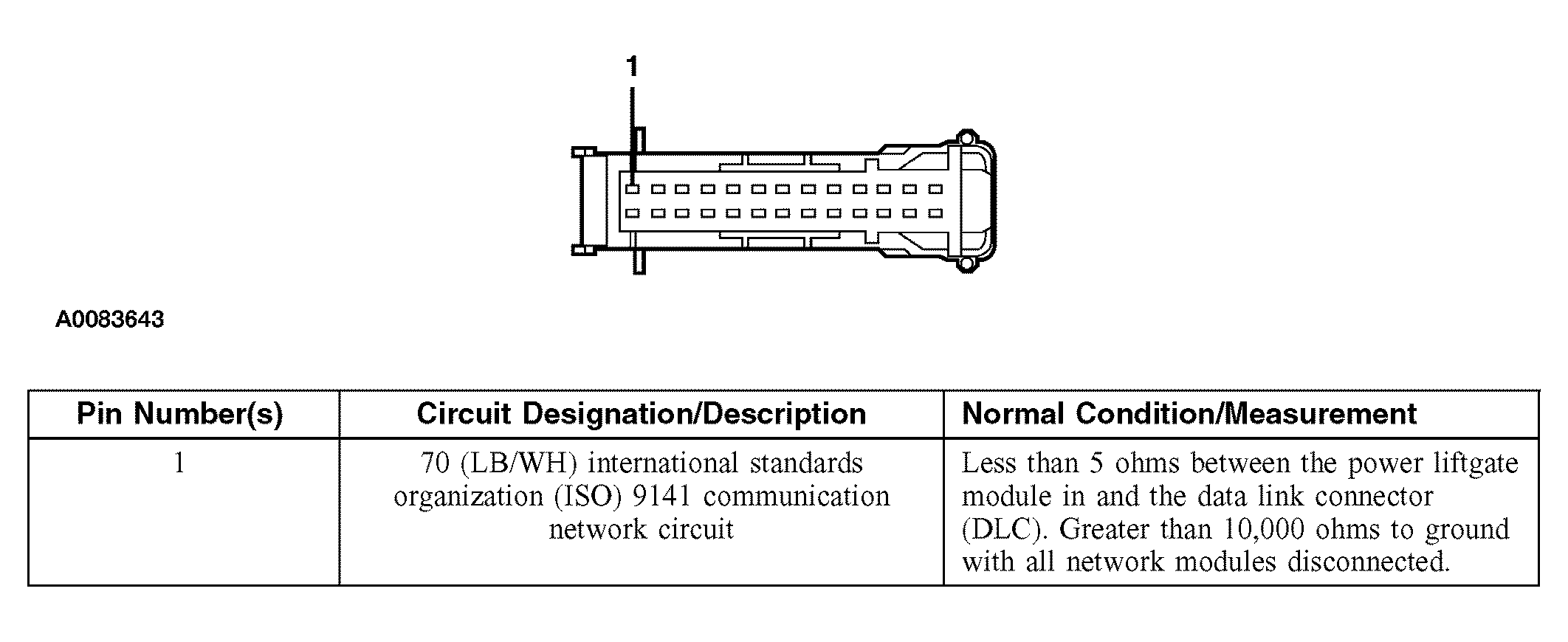

Fig 17: Connector Circuit Reference - Power Liftgate Module C4174a

Courtesy of FORD MOTOR CO.

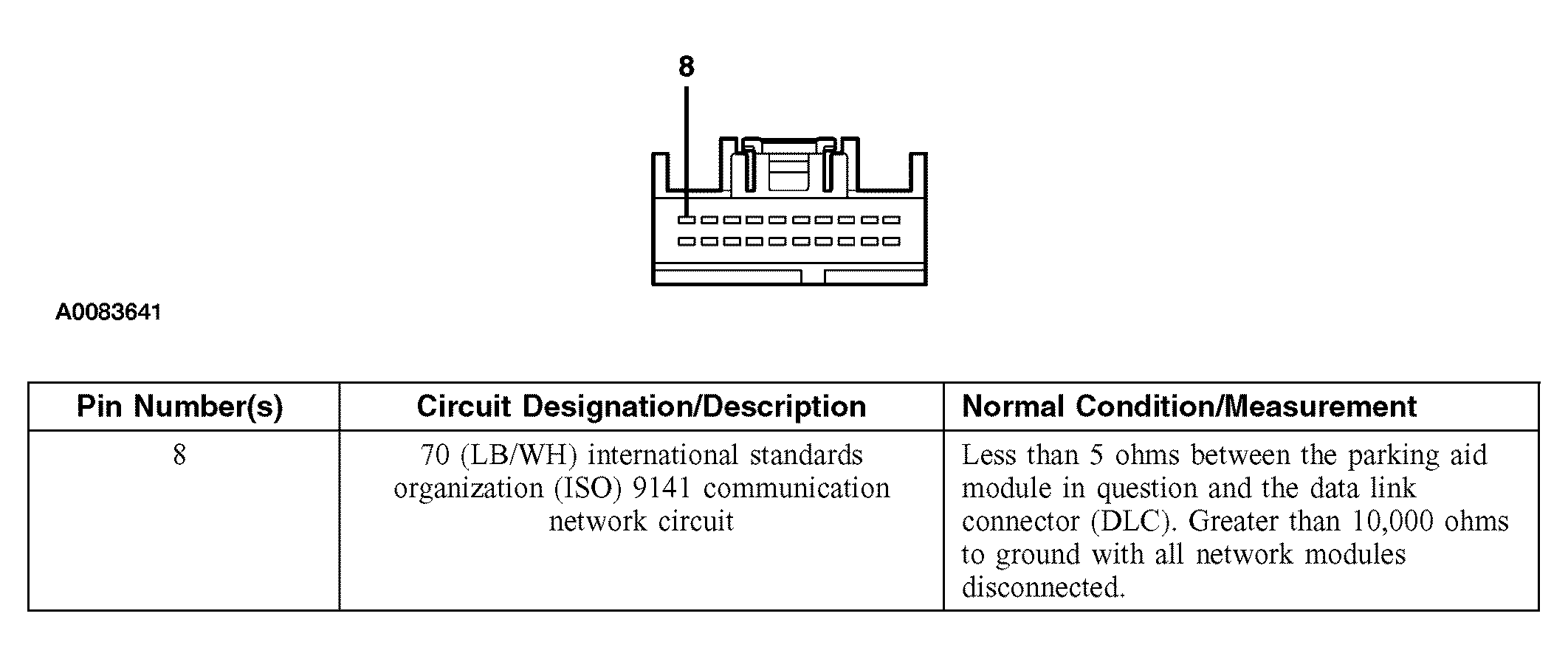

Fig 18: Connector Circuit Reference - Parking Aid Module C4226 - 4 Sensor (Rear Only)

Courtesy of FORD MOTOR CO.
