Secondary Variator Cover: Removal

CAUTION: MERCON®, MERCON®V, MERCON®SP, Motorcraft Premium Automatic Transmission Fluid and Motorcraft Continuously Variable Chain Type Transmission Fluid are not interchangeable transmission fluids. The use of any fluid other than what is recommended for this transmission will cause transmission damage.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the fluid cooler tube bracket from the transaxle.

Fig 1: Identifying Fluid Cooler Tube Bracket/Bolt To Transaxle
Courtesy of FORD MOTOR CO.

CAUTION: When disconnecting the fluid cooler tubes pull straight up to prevent damage to the fluid cooler tubes.

NOTE: The axle shaft has been removed for clarity.

Fig 2: Identifying Transmission Fluid Cooler Tubes To Transaxle Bolt

Courtesy of FORD MOTOR CO.

Disconnect the transmission fluid cooler tubes from the transaxle.
Remove and discard the 4 transmission fluid cooler tube seals.

Fig 3: Locating O-Ring Seals
Courtesy of FORD MOTOR CO.
Remove only the 3 retainers and carefully position the insulator aside to gain access to the secondary variator cover.

Fig 4: Removing Retainers
Courtesy of FORD MOTOR CO.

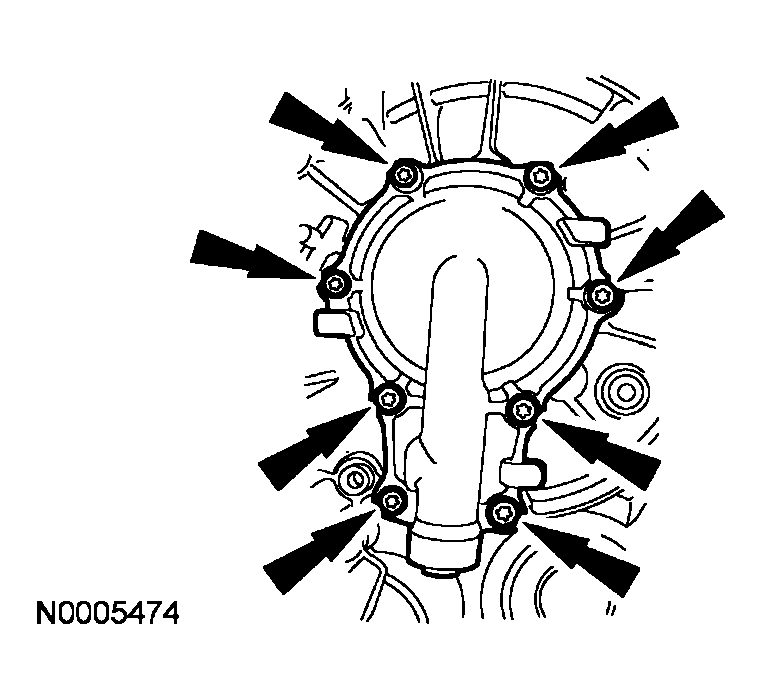

Remove and discard the bolts for the secondary cover and remove the cover.

Fig 5: Removing Cover
Courtesy of FORD MOTOR CO.
Remove and discard the square cut seal from the secondary cover.

Fig 6: Removing Square Cut Seal From Secondary Cover
Courtesy of FORD MOTOR CO.

CAUTION: Do not remove the retaining clip that holds the feed tube in place. This will cause the tube to fall into the case.

Fig 7: Removing Seal On Feed Tube And Gasket

Courtesy of FORD MOTOR CO.

Remove and discard the seal on the feed tube and the gasket from the secondary cover.
