Repair and Diagnosis
>>
Steering
>>
Steering Column
>>
Removal And Installation
>>

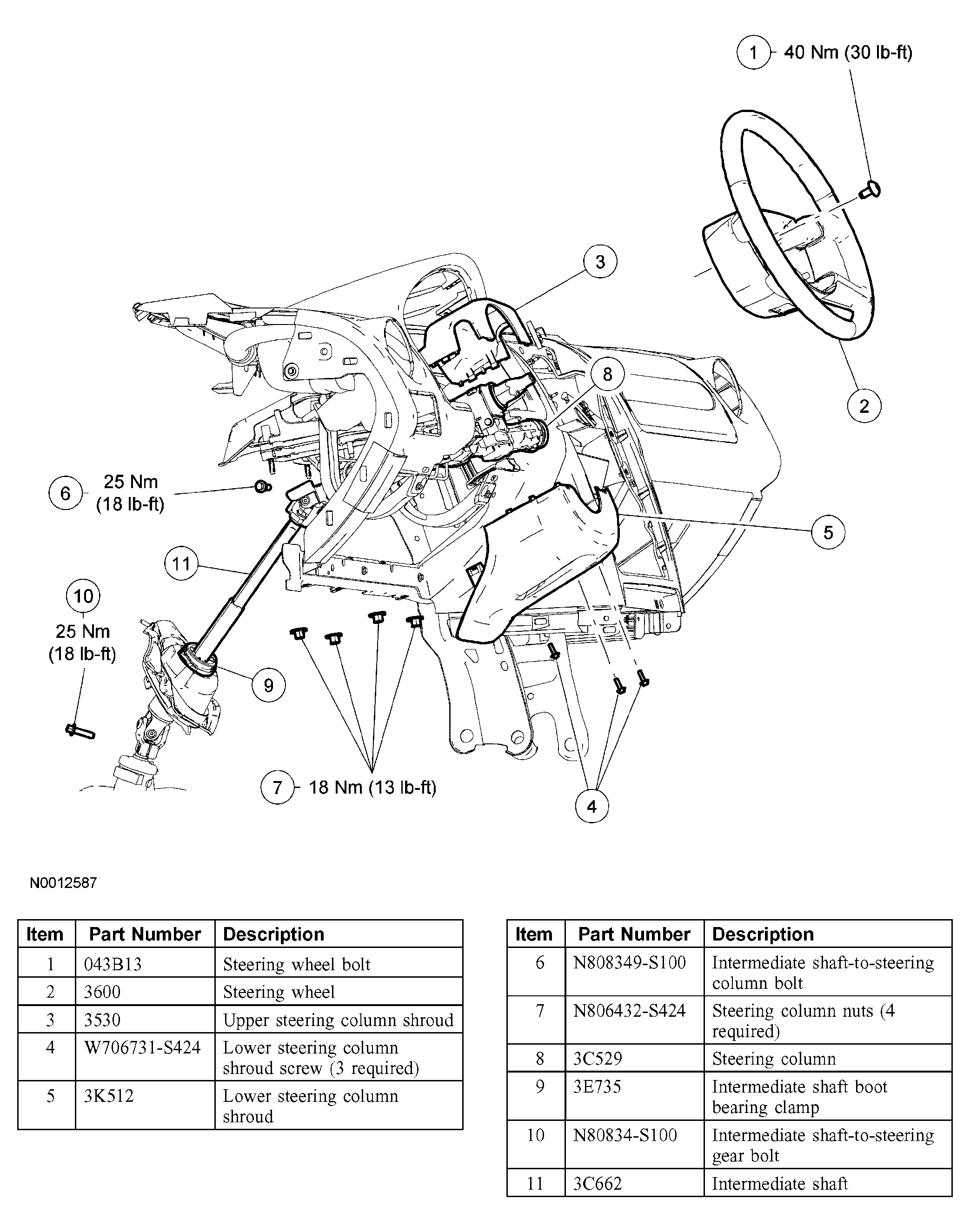

Steering Column - Exploded View
Steering Column - Exploded View
Fig 1: Removing/Installing Steering Column
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures below.
Courtesy of FORD MOTOR CO.
