Power Steering System - Exploded View

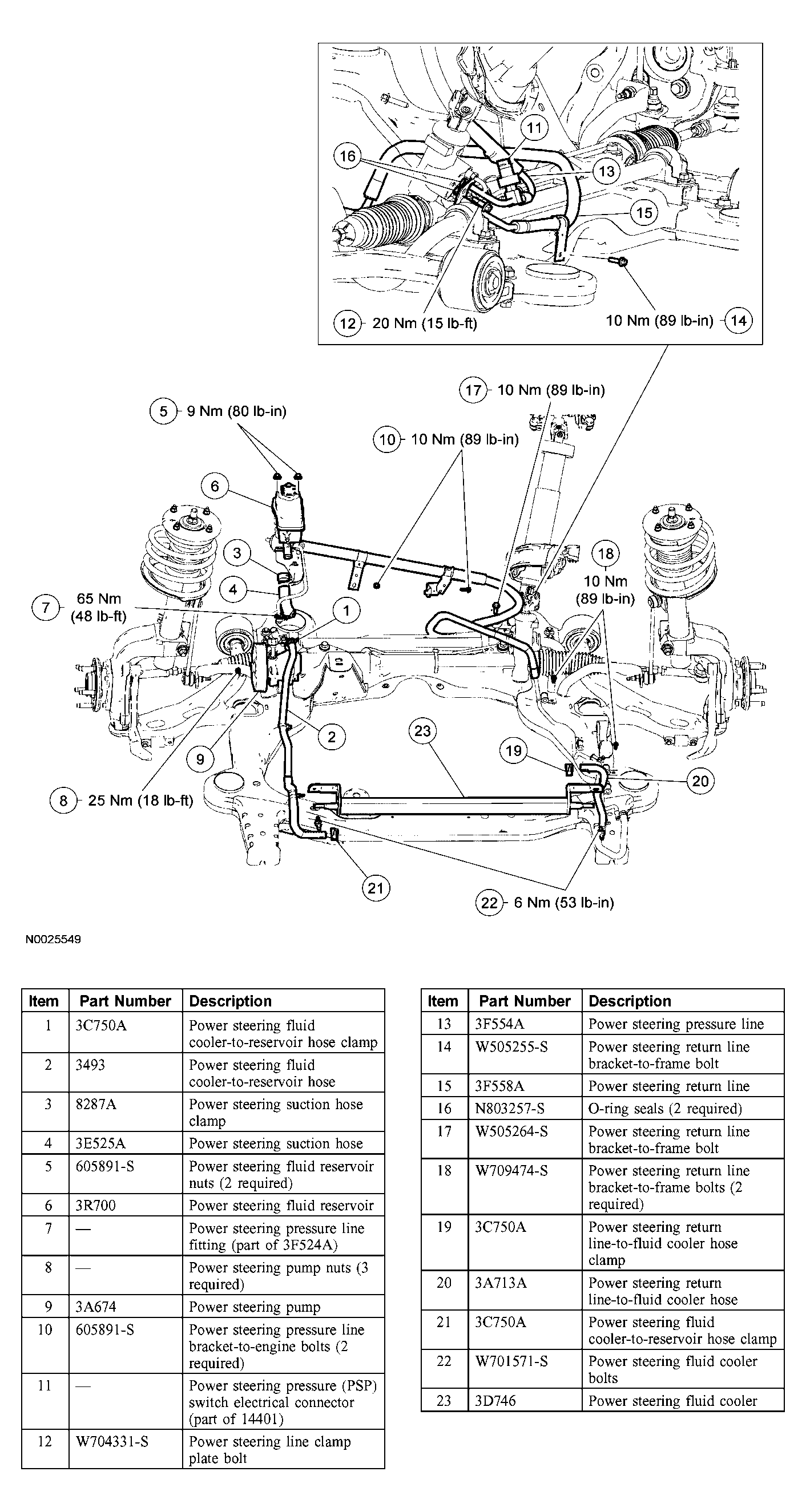

Fig 1: Removing/Installing Power Steering System

G03988548

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this section.
