Valve Spring, Retainer and Seal: Removal

  1. Remove the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
    2. NOTE: If air pressure has forced the piston to the bottom of the cylinder, any loss of air pressure will allow the valve(s) to fall into the cylinder. A rubber band, tape or string wrapped around the end of the valve stem will prevent this from happening.
  2. Pressurize the cylinder using compressed air.
  3. Using the special tool, remove the key, retainer and the valve spring.
    Fig 1: Removing Key, Retainer And Valve Spring
    G03898348Courtesy of FORD MOTOR CO.
    4. NOTE: Camshaft removed for clarity.

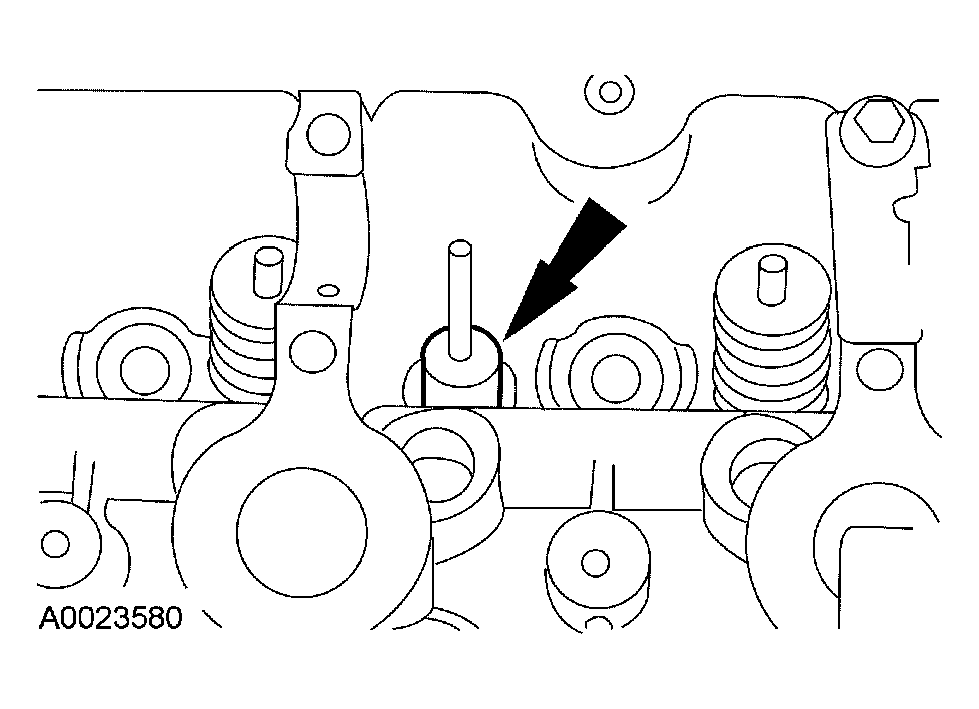

    Fig 2: Removing Valve Seal
    G03898349Courtesy of FORD MOTOR CO.
  4. Remove the valve seal.
