Oil Pump: Installation

  1. Position the oil pump and install the bolts.

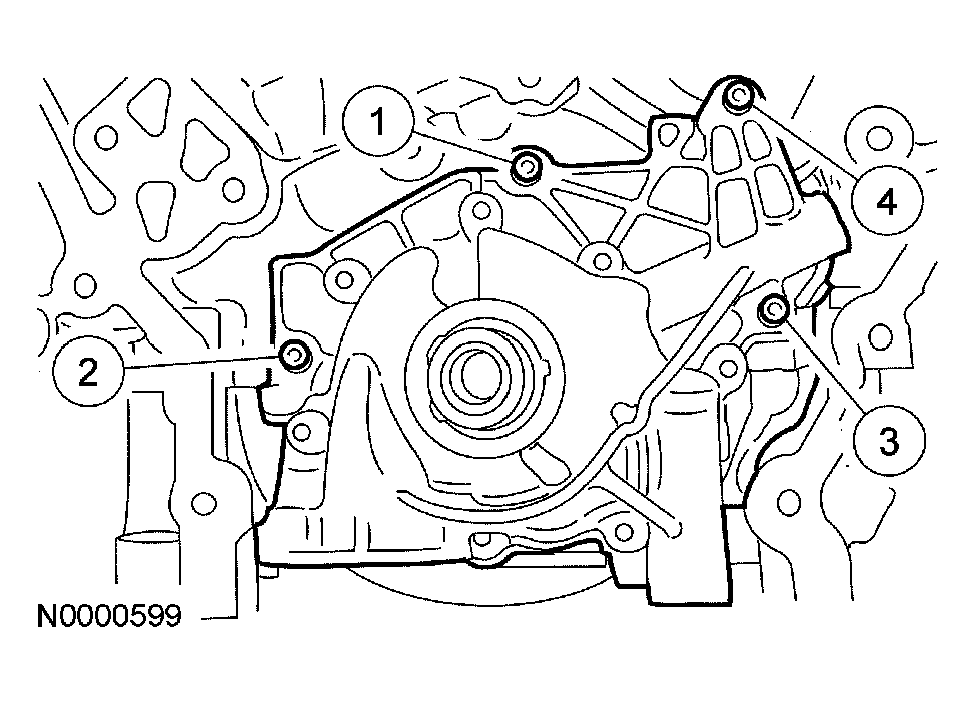

    • Tighten in the sequence shown to 10 Nm (89 lb-in).
      Fig 1: Installing Bolts
      G03898365Courtesy of FORD MOTOR CO.
  2. Install the oil pump screen and pickup tube. For additional information, refer to ENGINE LUBRICATION COMPONENTS - EXPLODED VIEW  and OIL PUMP SCREEN AND PICKUP TUBE .
  3. Install the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
