Home >> Mercury >> 2005 >> Montego Base, AWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine >> In-Vehicle Repair >> Exhaust Manifold - LH >> Notes

Exhaust Manifold - LH: Notes

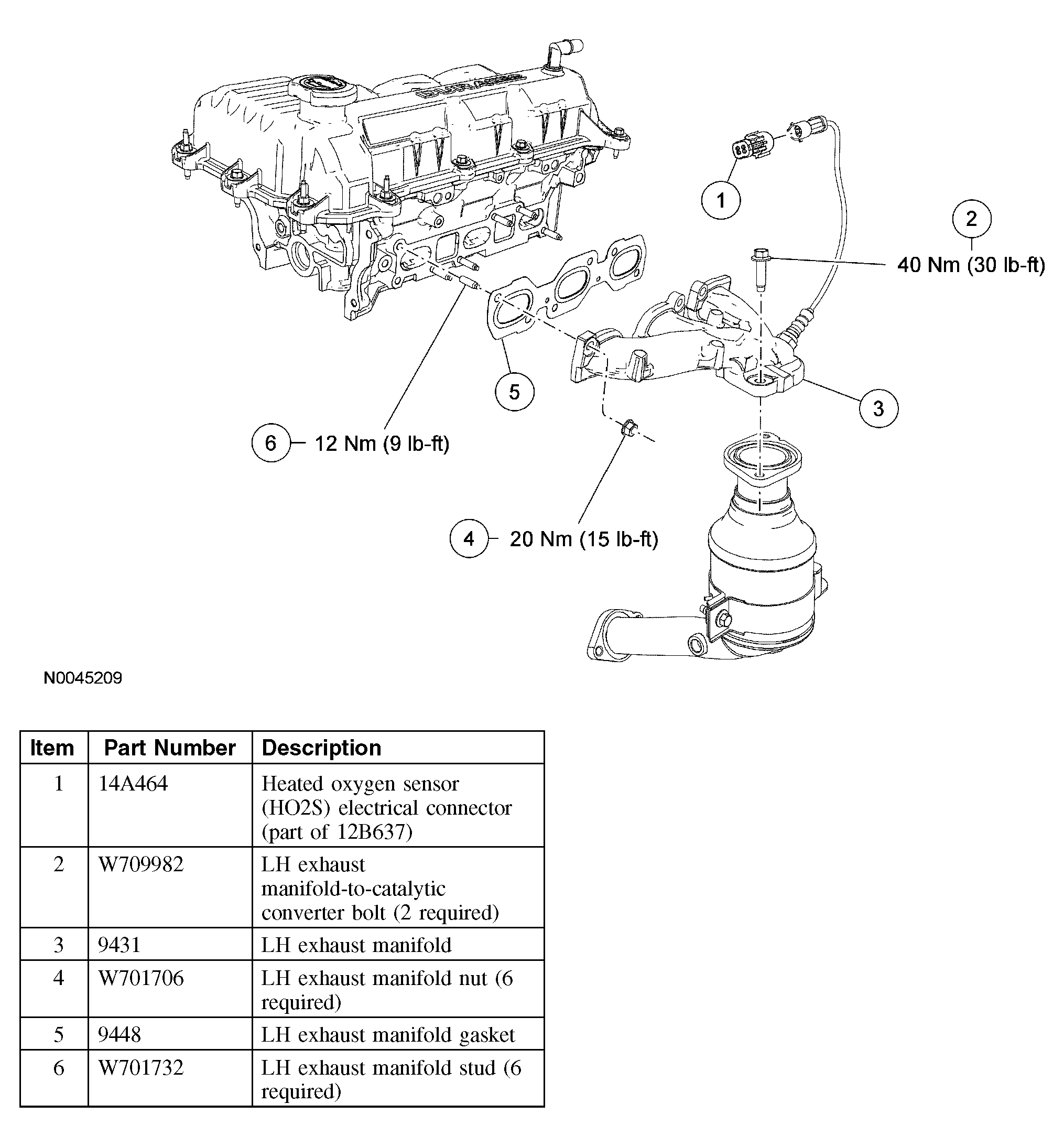

Fig 1: Identifying Exhaust Manifold - LH And Components

G03990190

Courtesy of FORD MOTOR CO.
