Removal and Installation

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove and discard the roll restrictor cross brace-to-roll restrictor bolt.
- To install, tighten to 48 Nm (35 lb-ft).

  Fig 1: Removing Roll Restrictor Cross Brace-To-Roll Resistor Bolt
  Courtesy of FORD MOTOR CO.
Remove the front transaxle stabilizer bolt and nut.
- To install, tighten to 40 Nm (30 lb-ft).

  Fig 2: Removing Front Transaxle Stabilizer Bolt And Nut
  Courtesy of FORD MOTOR CO.
If equipped, remove the 3 bolts and the LH exhaust manifold heat shield.
- To install, tighten to 11 Nm (8 lb-ft).
Remove the engine support insulator lower nut.
- To install, tighten to 70 Nm (52 lb-ft).
Remove the engine support insulator upper nut.
- To install, tighten to 70 Nm (52 lb-ft).

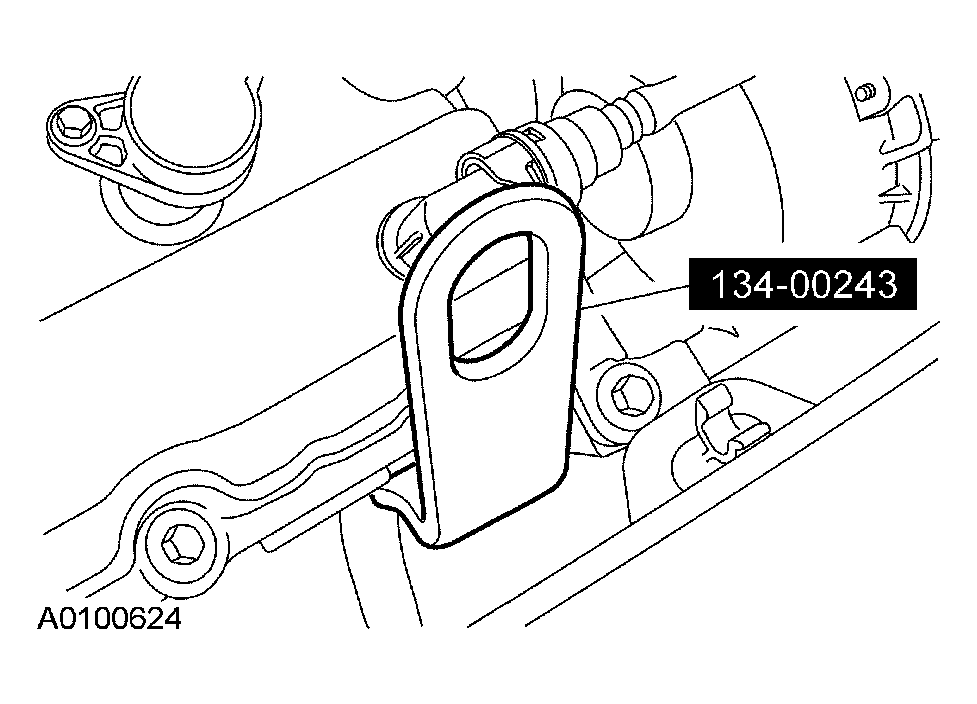

Mount the special tool to the LH cylinder head.

Fig 3: Mounting Special Tool To LH Cylinder Head
Courtesy of FORD MOTOR CO.

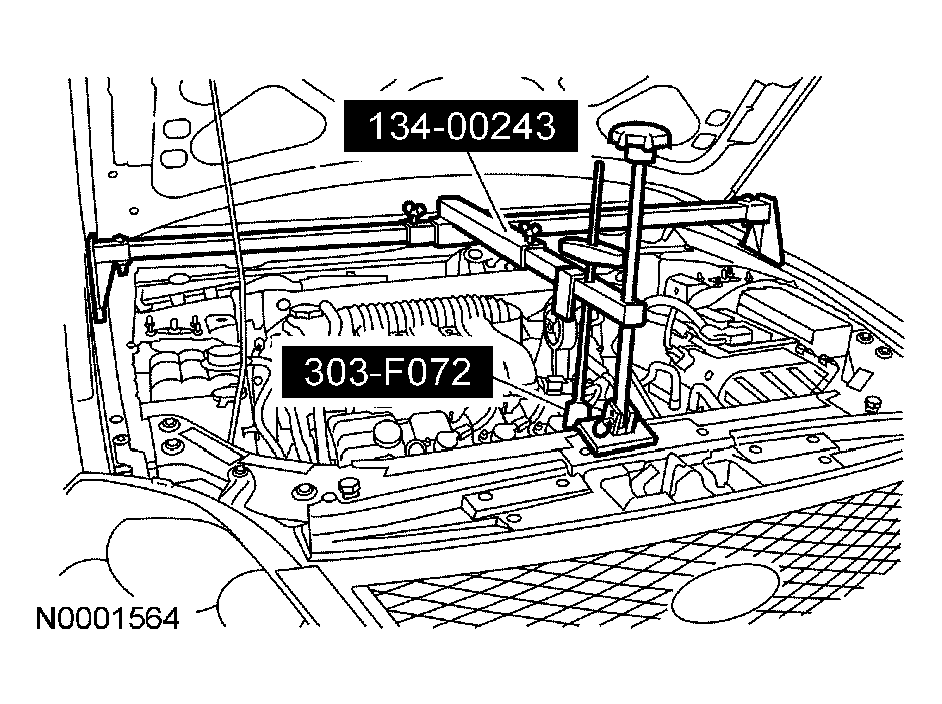

Using the special tools, raise the engine to gain the clearance necessary to remove the insulator.

Fig 4: Removing Insulator
Courtesy of FORD MOTOR CO.

CAUTION: Make sure that the engine support insulator locator pins are aligned correctly with the bracket.
