Engine Mount - Anti-Roll: Material

ITEM SPECIFICATION

Item Specification
Threadlock and Sealer TA-25 WSK-M2G351-A5
NOTE: 6 speed transaxle shown, CVT similar.

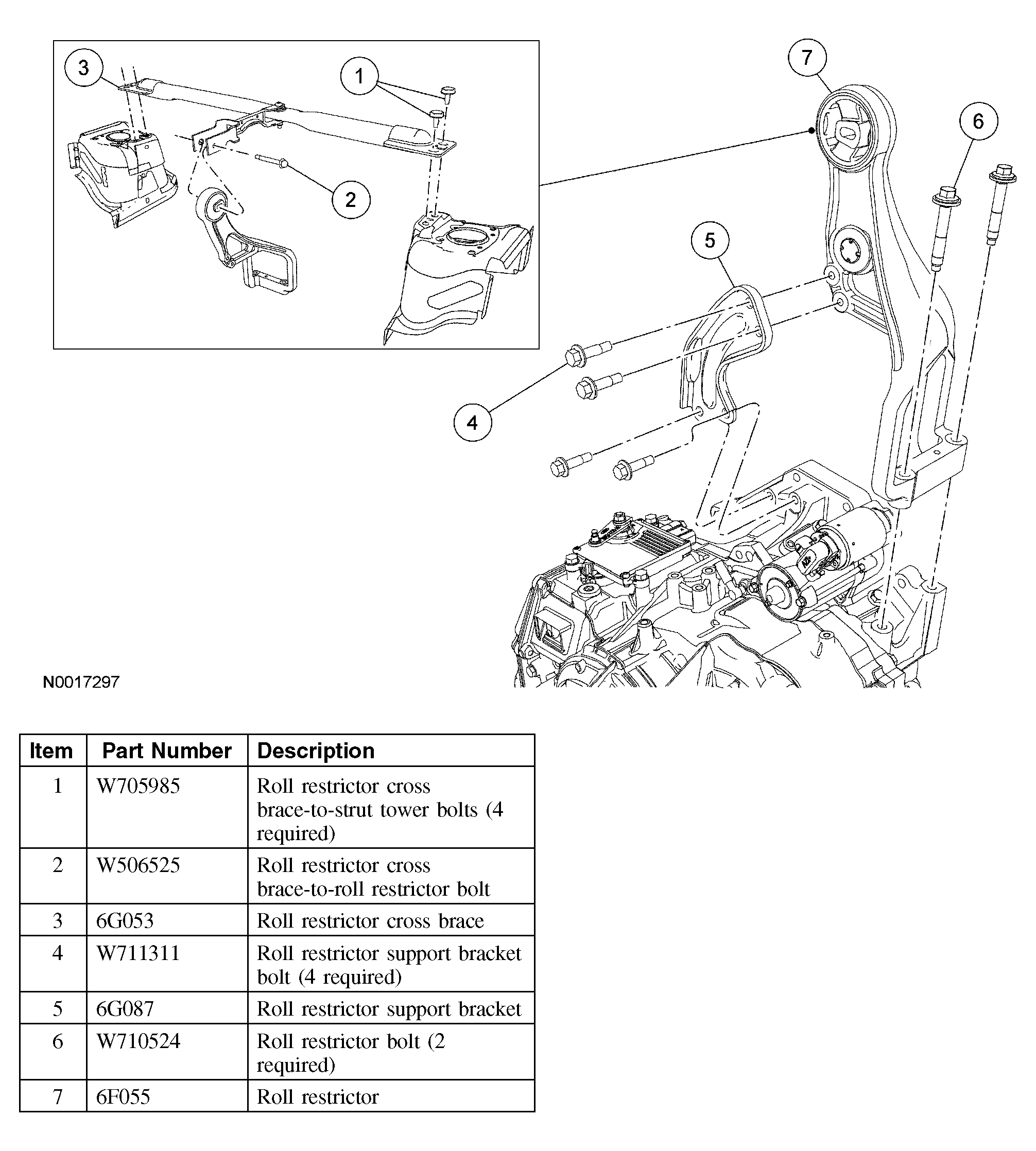

Fig 1: Identifying Engine Mount - Anti-Roll And Components
G03990206Courtesy of FORD MOTOR CO.
