Starter Motor - CVT: Notes

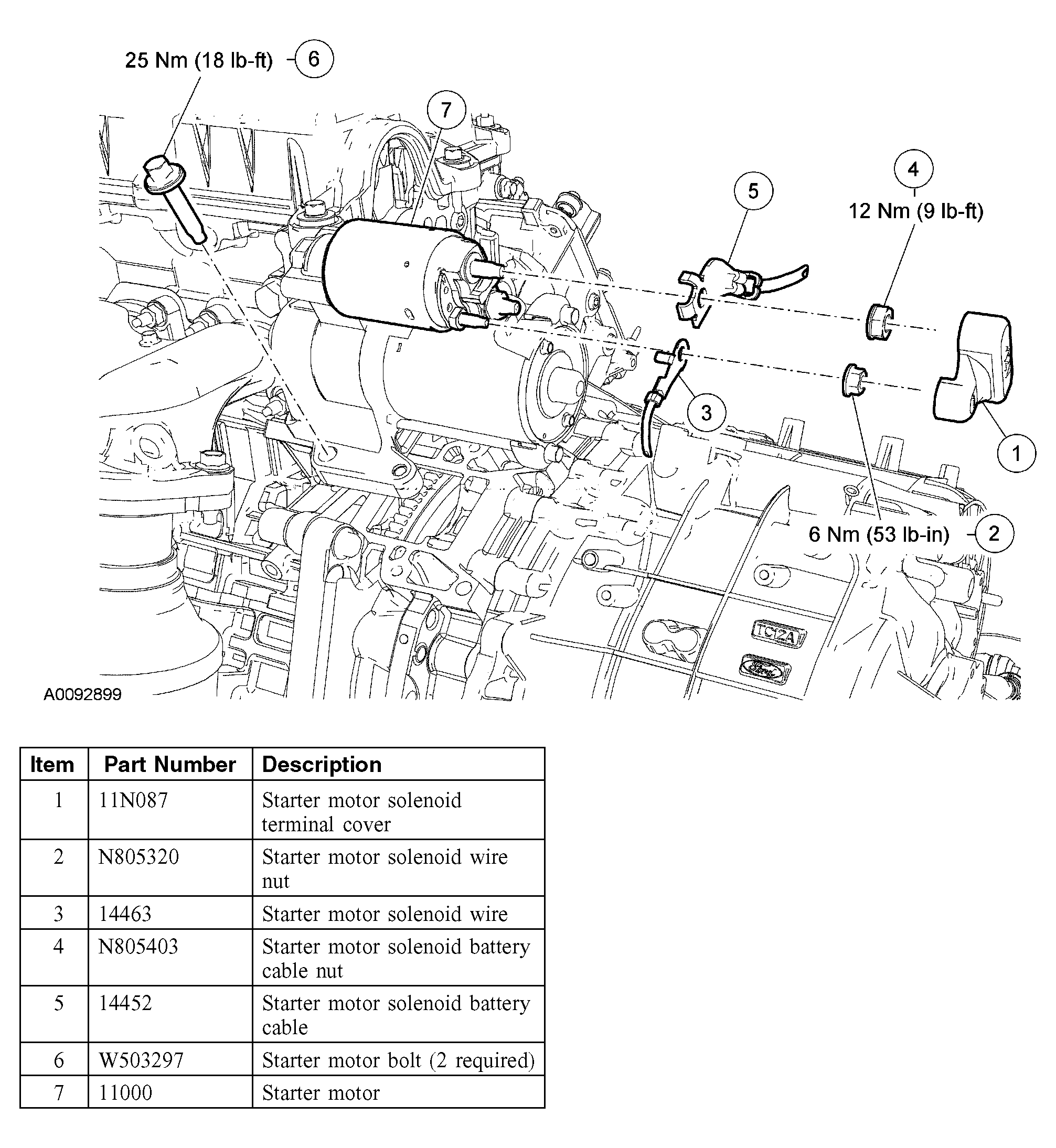

Fig 1: Removing/Installing Starter Motor - CVT

G03990629

Courtesy of FORD MOTOR CO.
