Wheel Speed Sensor - Front: Notes

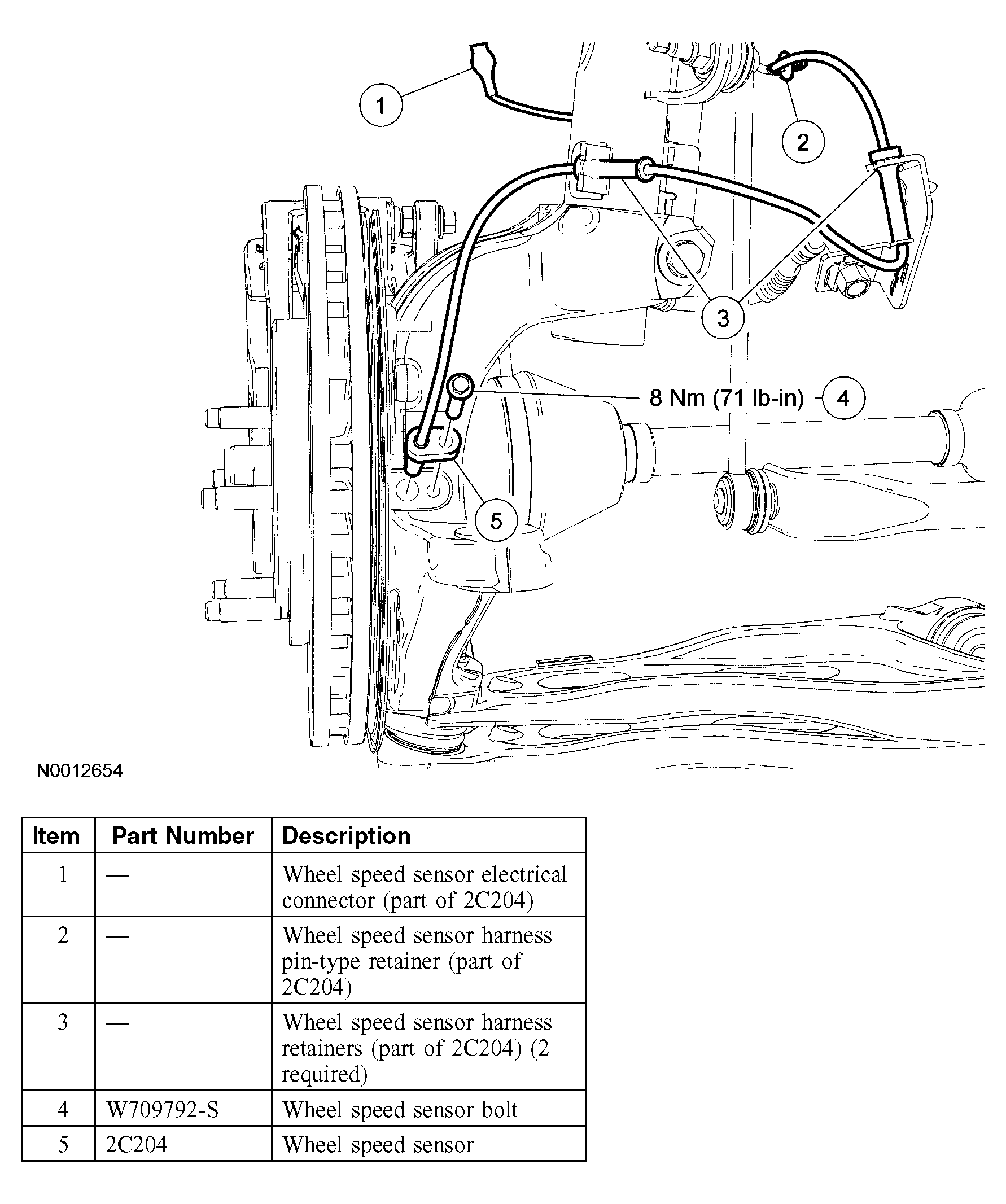

Fig 1: Removing/Installing Wheel Speed Sensor - Front

G03988529

Courtesy of FORD MOTOR CO.
