Hydraulic Control Unit (HCU): Material

MATERIAL SPECIFICATION - HYDRAULIC CONTROL UNIT (HCU)

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1)	ESA-M6C25-A or WSS-M6C62-A

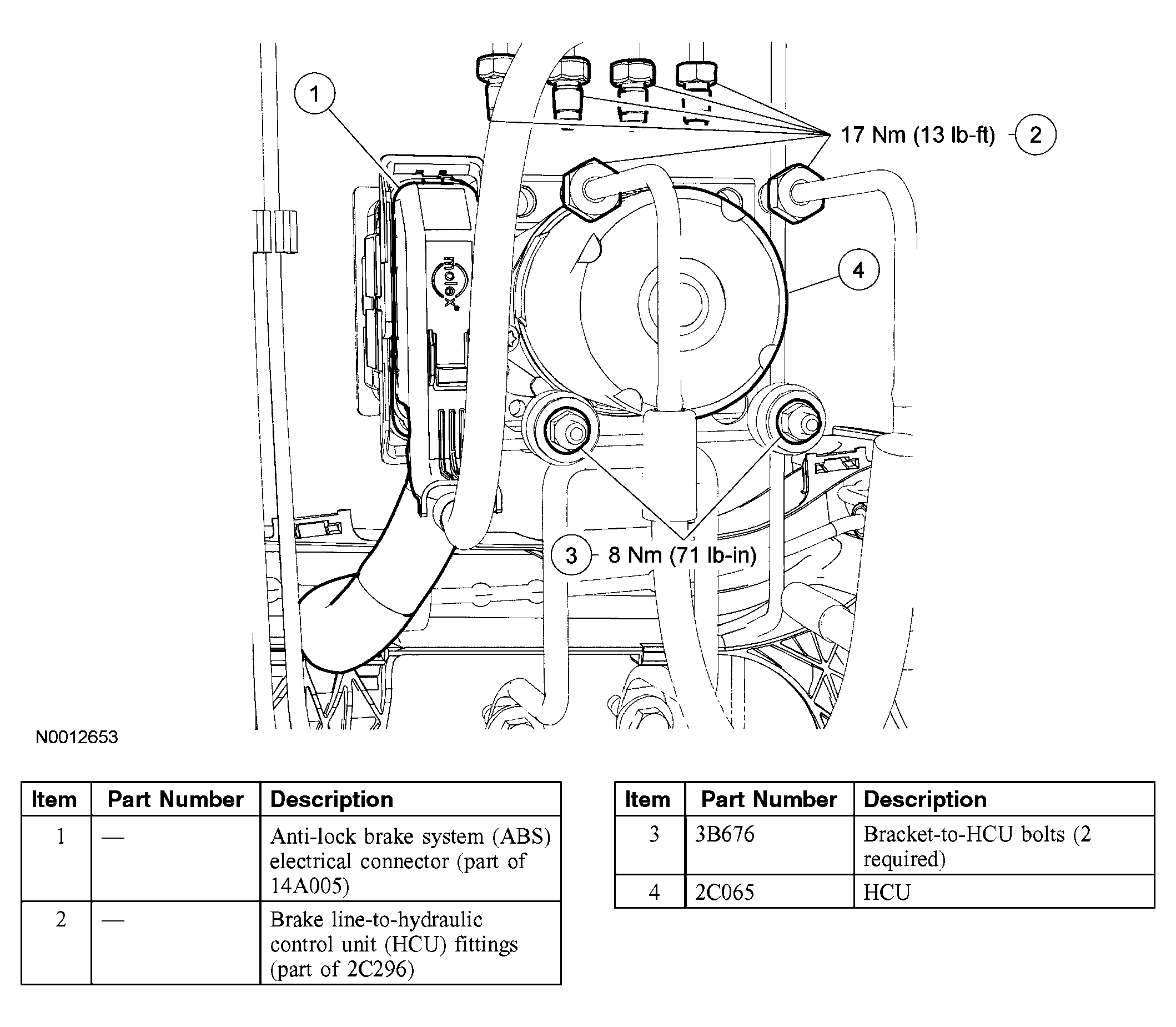

Fig 1: Identifying Components Of Hydraulic Control Unit (HCU)

Courtesy of FORD MOTOR CO.
