Home >> Mercury >> 2005 >> Montego Base, AWD >> Repair and Diagnosis >> Body & Frame >> Windows And Glass >> Removal And Installation >> Window Control Switch >> Removal and Installation

Removal and Installation

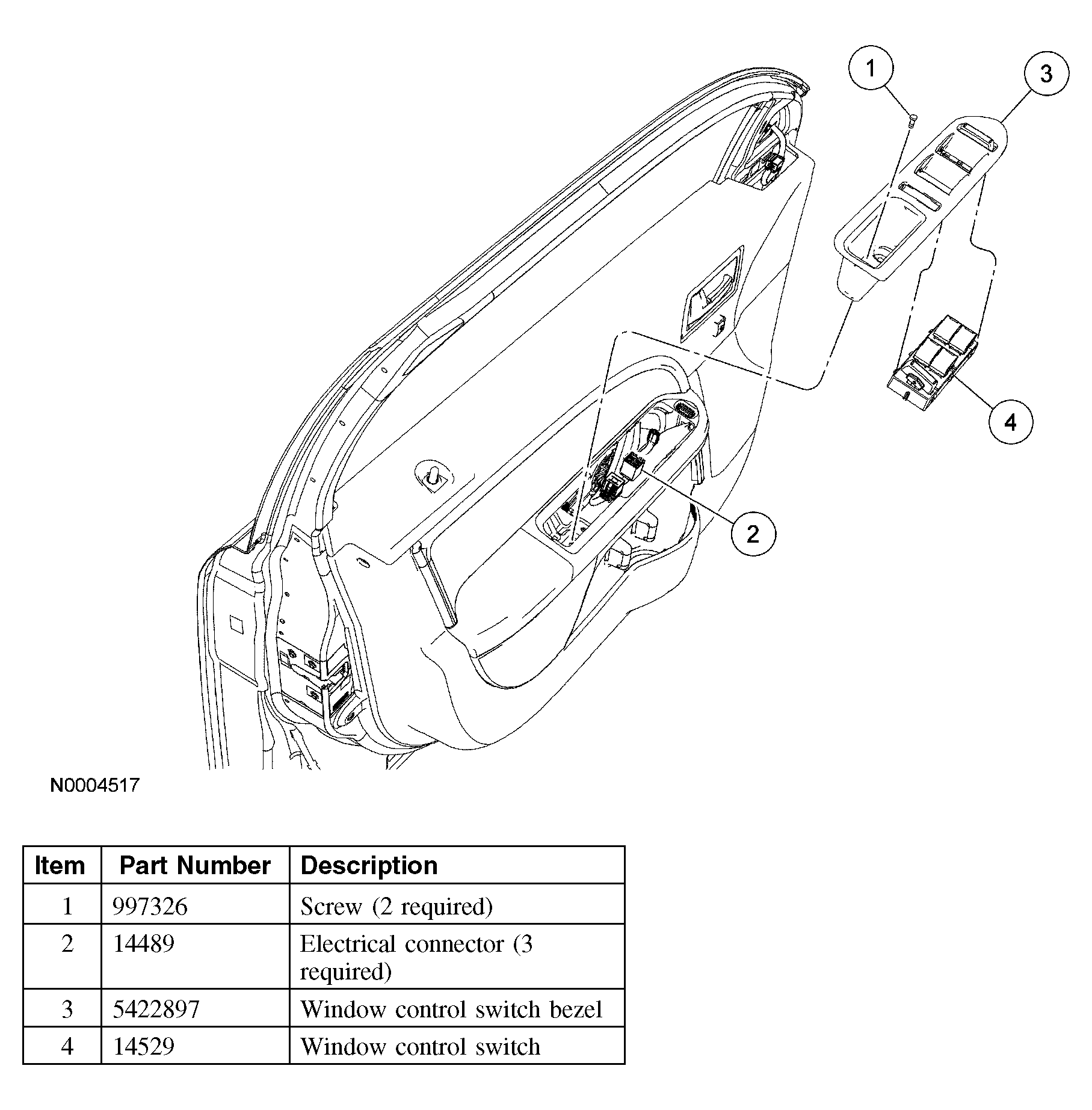

Fig 1: Removing/Installing Window Control Switch
G03989121Courtesy of FORD MOTOR CO.
  1. Remove the window regulator control switch bezel.
    • Remove the 2 screws.
    • Disconnect the electrical connectors.
  2. Remove the window control switch.
  3. To install, reverse the removal procedure.
