Mercury
>>
2005
>>
Montego Base, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Seat System
>>
Removal And Installation
>>
Seat - Front
>>
Notes
Seat - Front: Notes

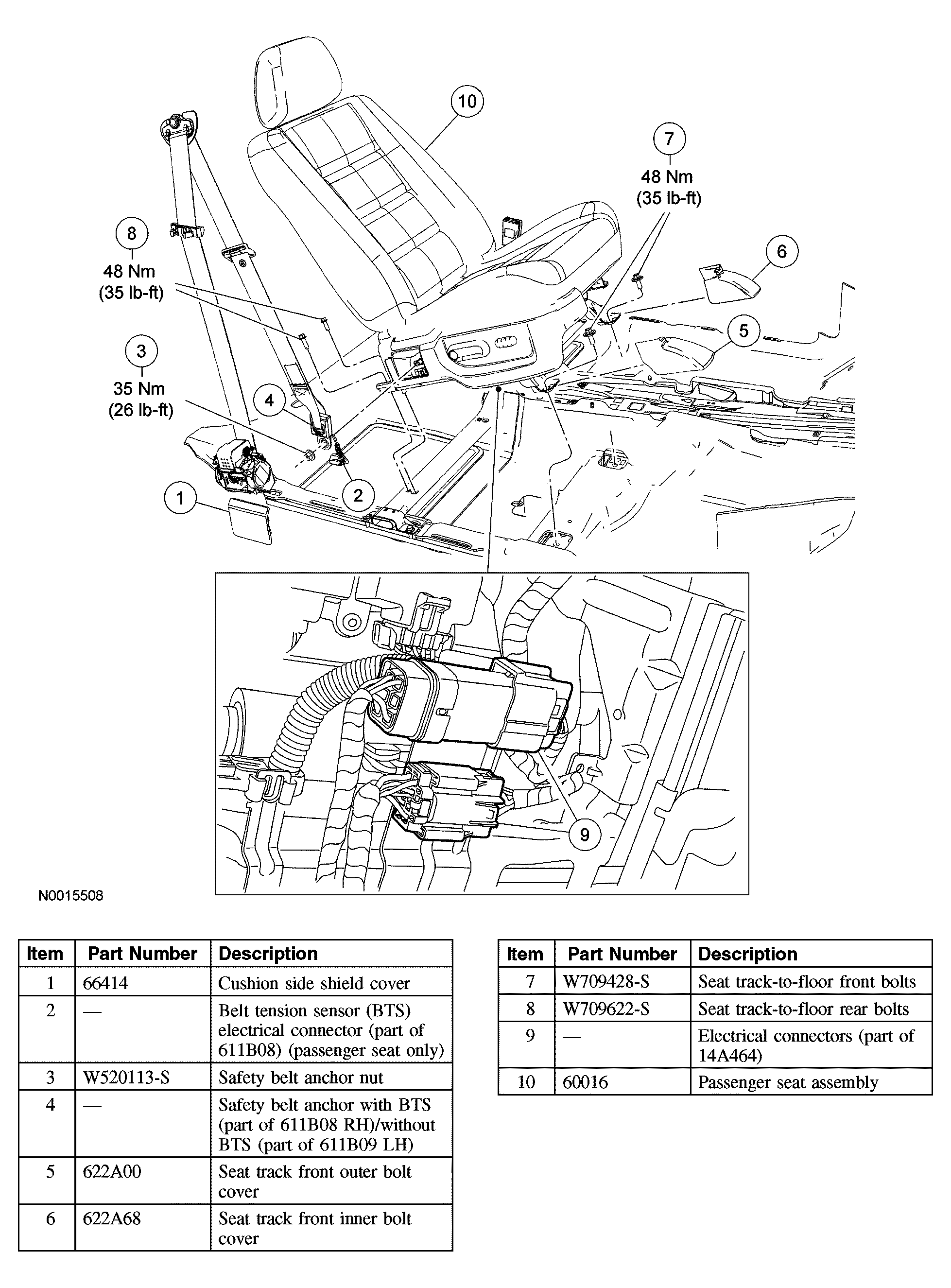

Fig 1: Identifying Seat - Front
Courtesy of FORD MOTOR CO.

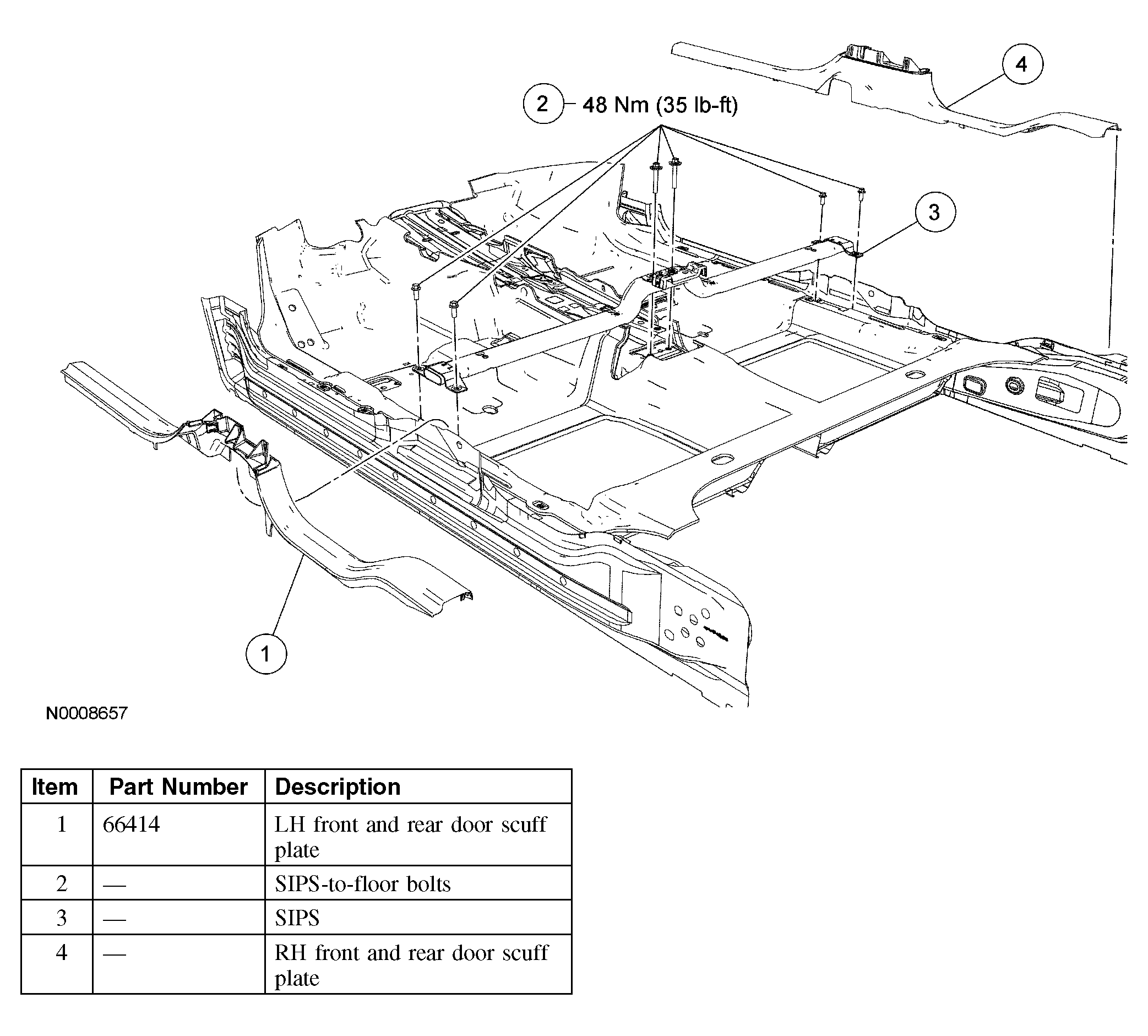

Fig 2: Identifying Side Impact Protection System (SIPS)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
