Seat - Exploded View, Third Row

50 Percent Backrest

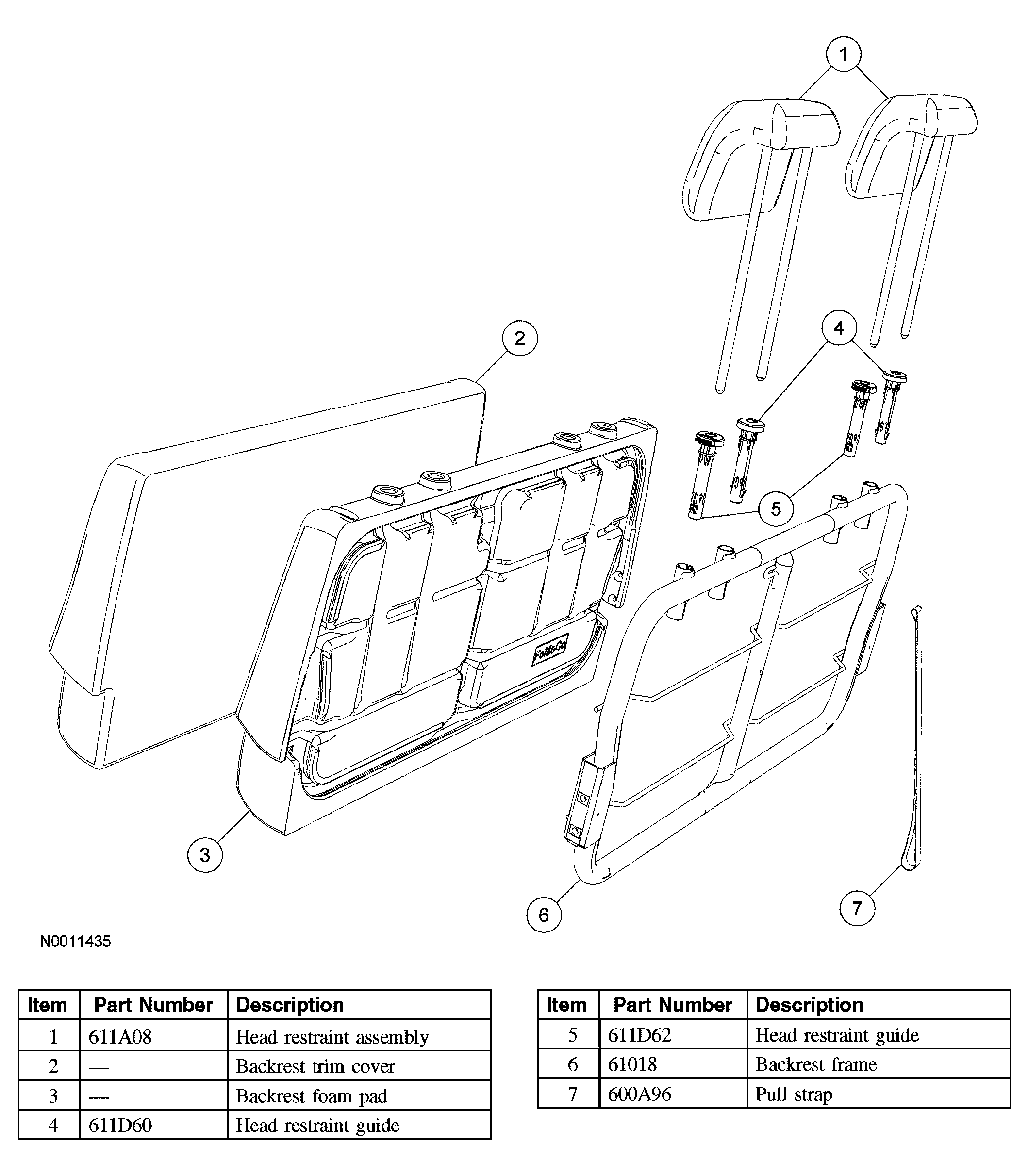

Fig 1: Removing/Installing 50 Percent Backrest

Courtesy of FORD MOTOR CO.

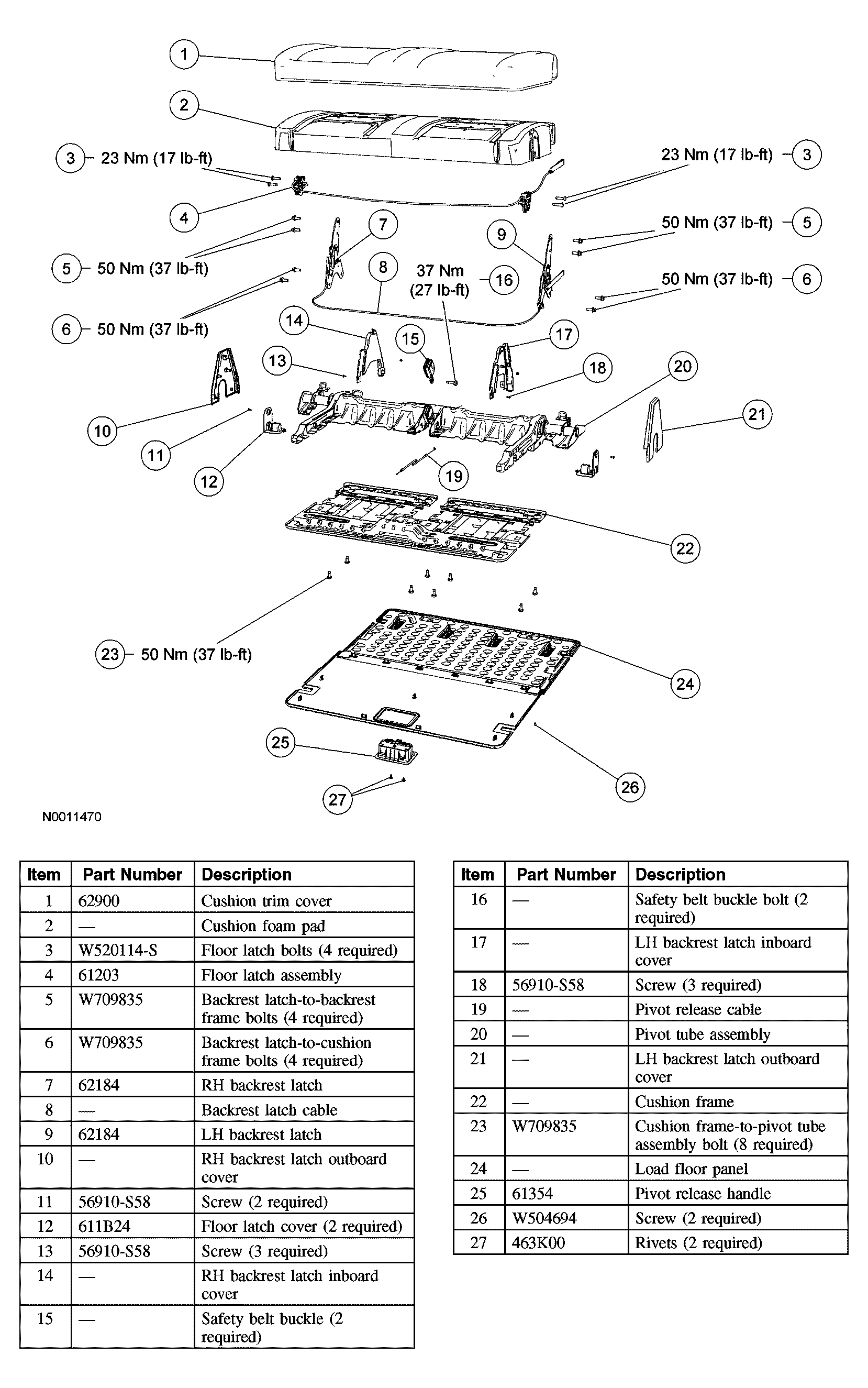

Fig 2: Removing/Installing Bench Seat Backrest

Courtesy of FORD MOTOR CO.

50 Percent Cushion

Fig 3: Removing/Installing 50 Percent Cushion

Courtesy of FORD MOTOR CO.

Fig 4: Removing/Installing Bench Seat Cushion

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
