Jacking Points

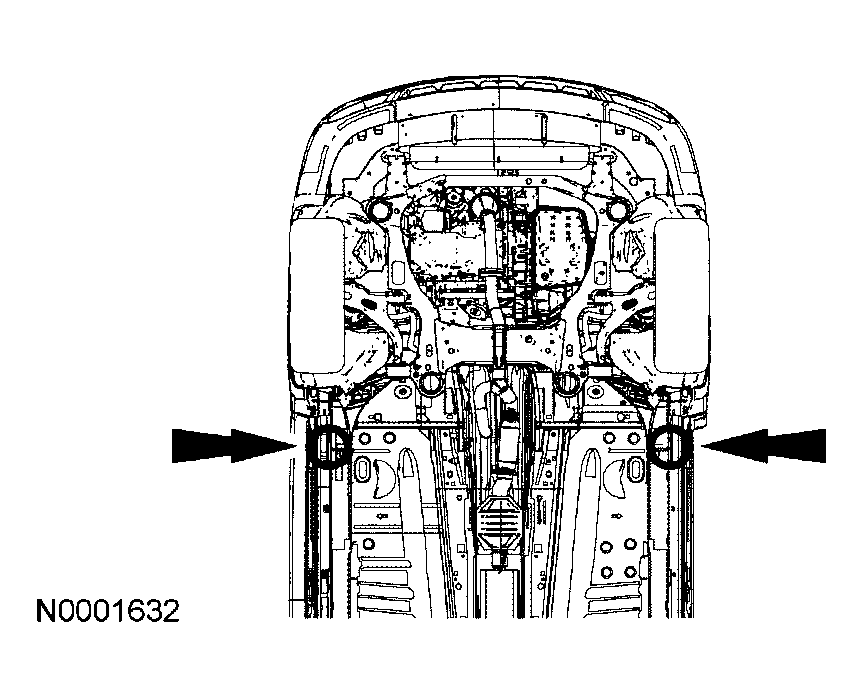

Fig 1: Identifying Jacking Points (1 Of 2)

Courtesy of FORD MOTOR CO.

To lift the front or either side of the front end, position the floor jack under the pinch point notches.

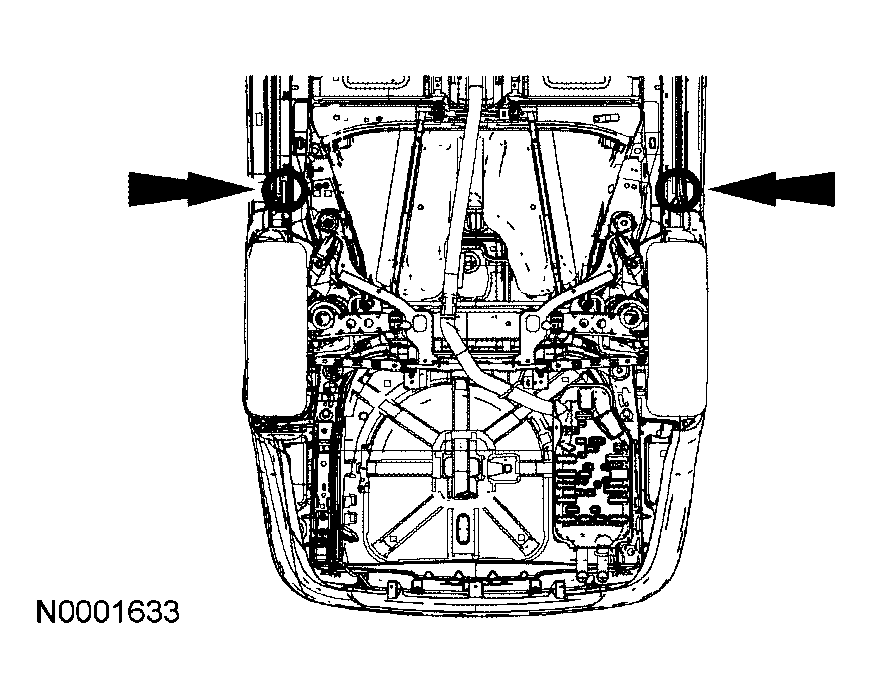

Fig 2: Identifying Jacking Points (2 Of 2)

Courtesy of FORD MOTOR CO.

To lift the rear or either side of the rear end, position the floor jack under the pinch point notches.
