Pinpoint Test HM: Secondary Air Injection (AIR) System: Introduction: Notes

This pinpoint test is intended to diagnose the following:

• Secondary Air Injection System Relay (14B192).
• Electric Air Injection Pump (9A486).
• Secondary Air Injection Bypass Solenoid (9H465).
• Harness circuits: B+, VPWR, SAIR, SAIRM, Ground.
• Powertrain control module (PCM) (12A650).
• Secondary Air Injection Diverter Valve (9F491).
• Vacuum supply.
• Air Water Shield/Silencer (9C463).
• Hoses.
• Partial restricted exhaust.

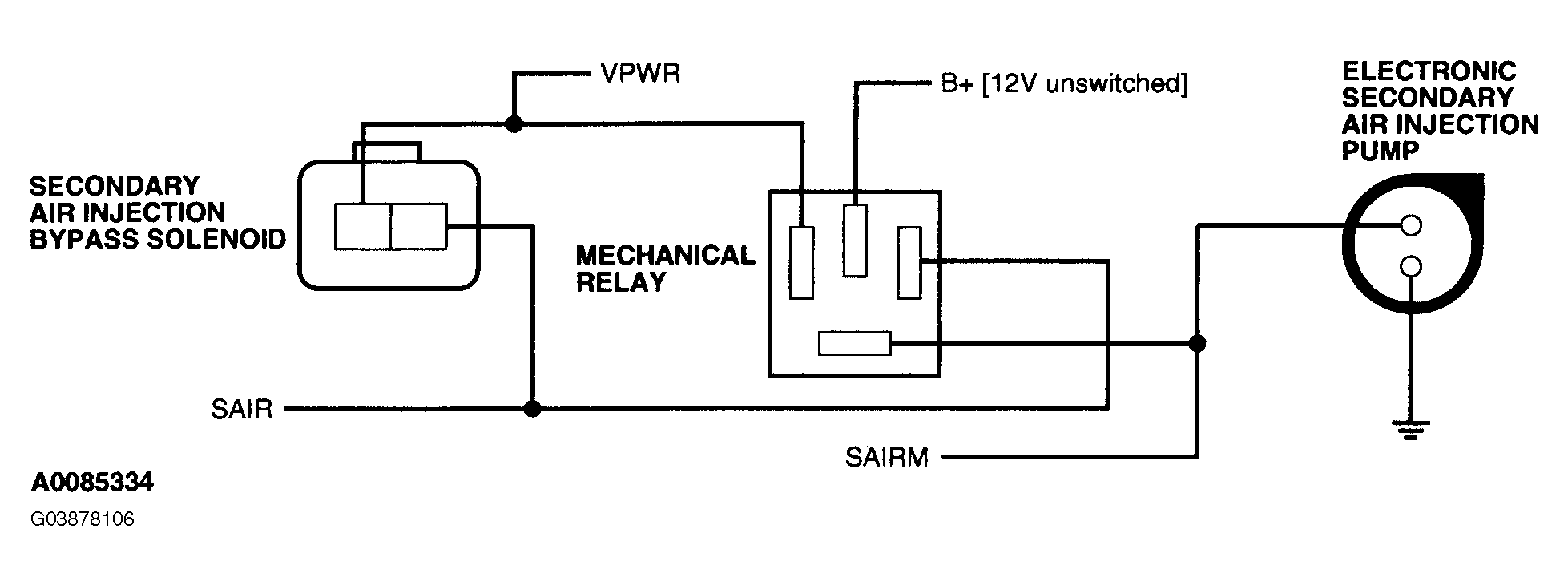

Fig 1: Typical AIR wiring diagram.

Courtesy of FORD MOTOR CO.

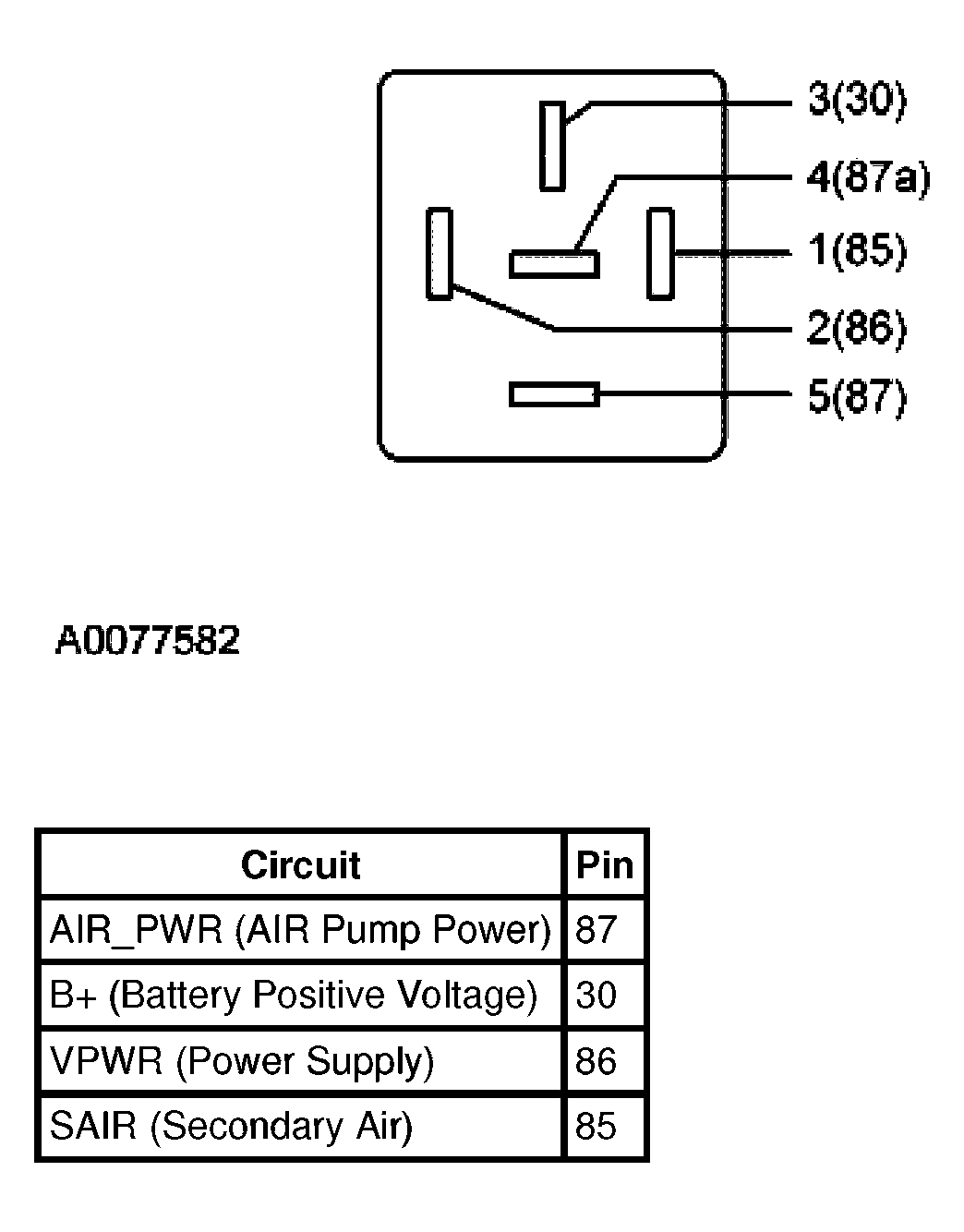

Fig 2: Secondary Air Injection (AIR) Relay Connector

Courtesy of FORD MOTOR CO.

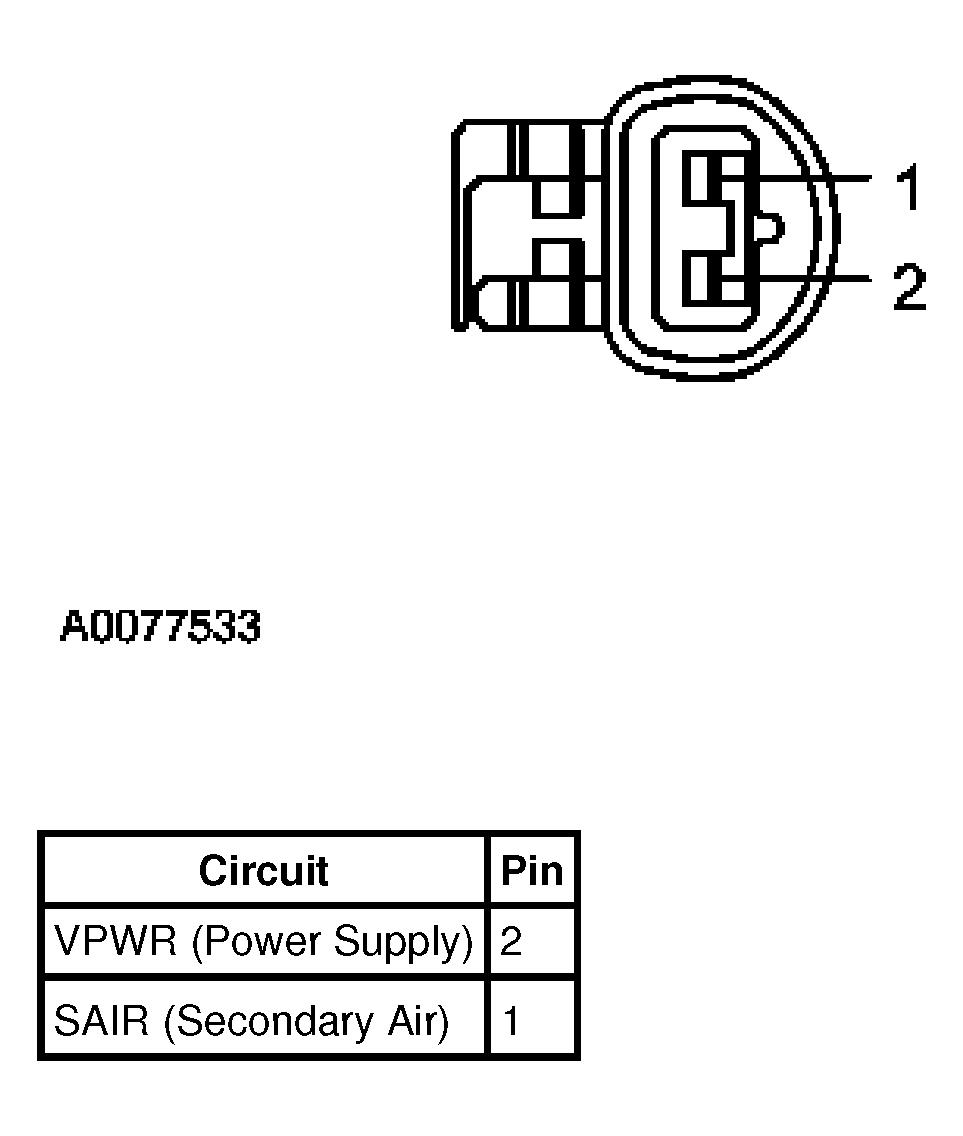

Fig 3: Secondary Air Injection (AIR) Solenoid Connector

Courtesy of FORD MOTOR CO.

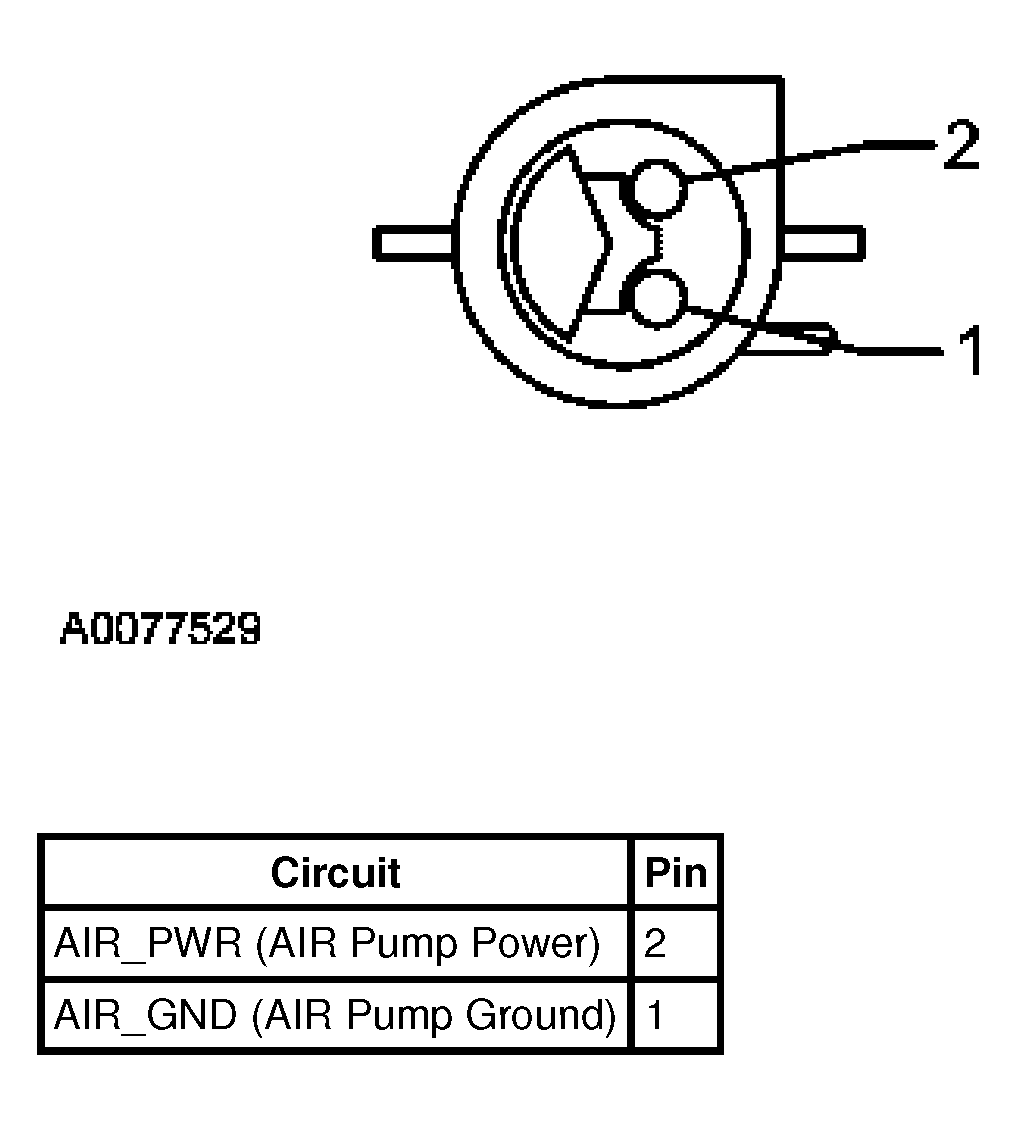

Fig 4: Secondary Air Injection (AIR) Motor Connector

Courtesy of FORD MOTOR CO.
