Exhaust Gas Recirculation (EGR) System Components - Exploded View

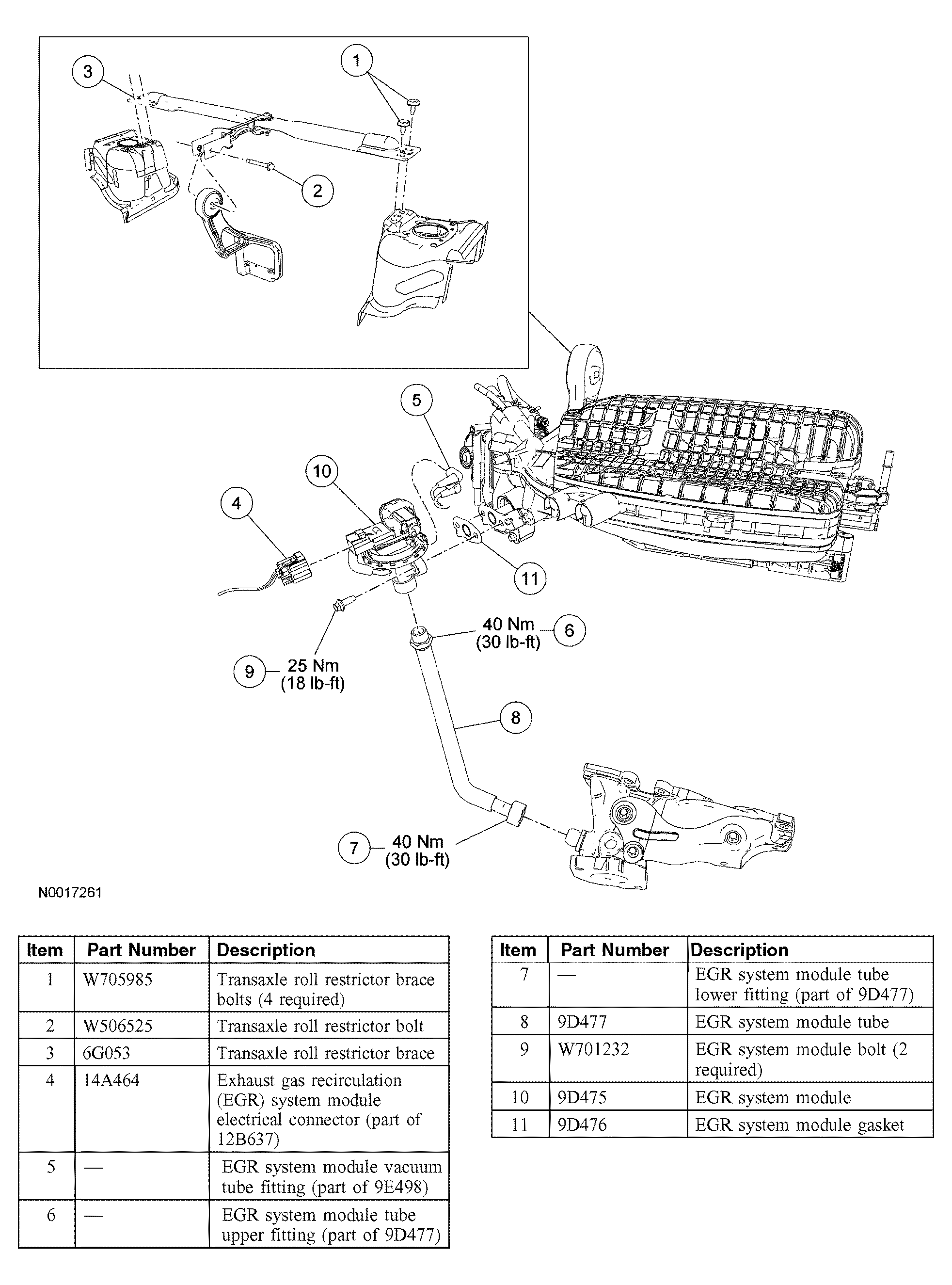

Fig 1: Removing/Installing Exhaust Gas Recirculation (EGR) System Components
G03990633Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures below.
