Connector Circuit Reference

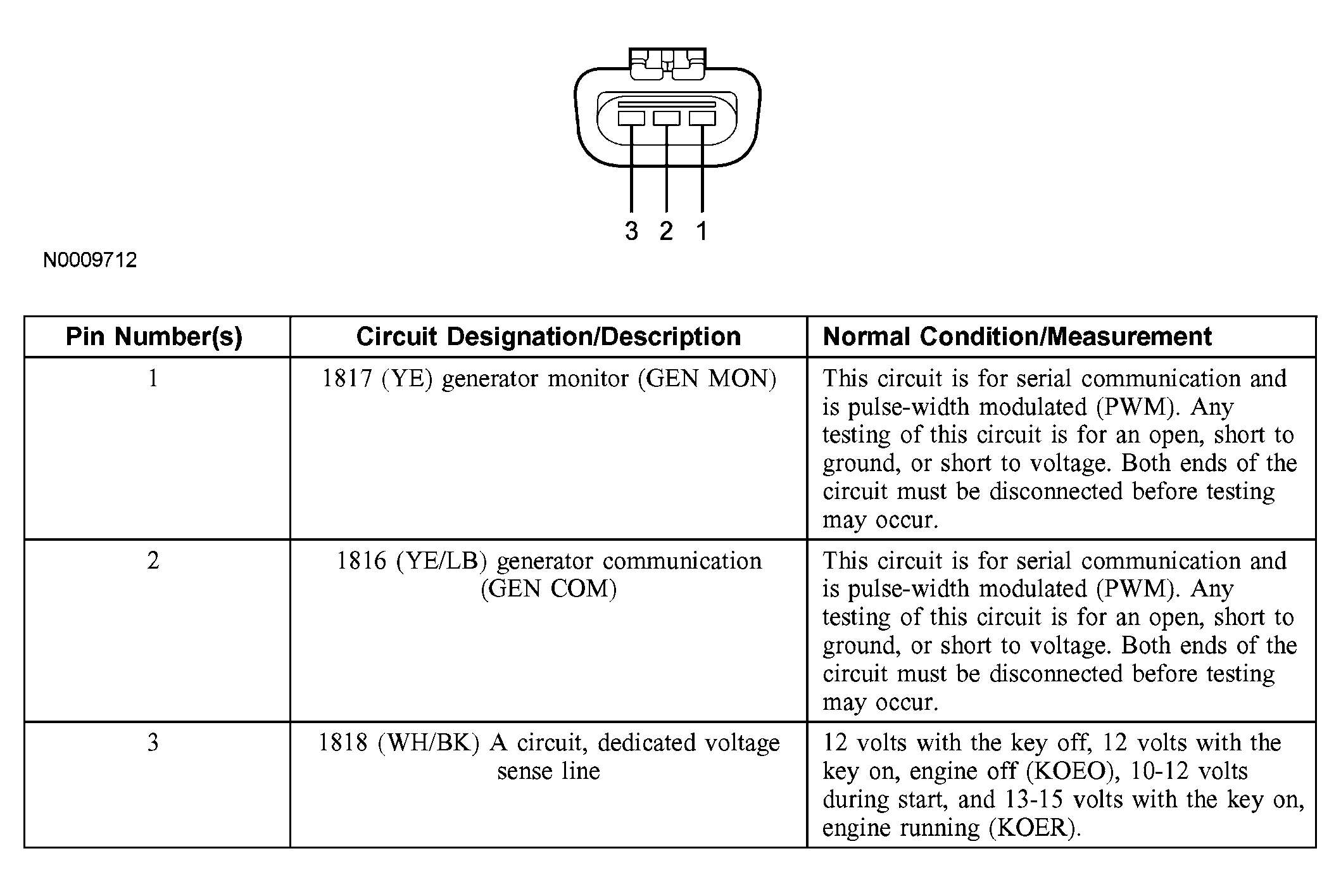

Fig 1: Connector Circuit Reference - Generator C102a
G03992662Courtesy of FORD MOTOR CO.

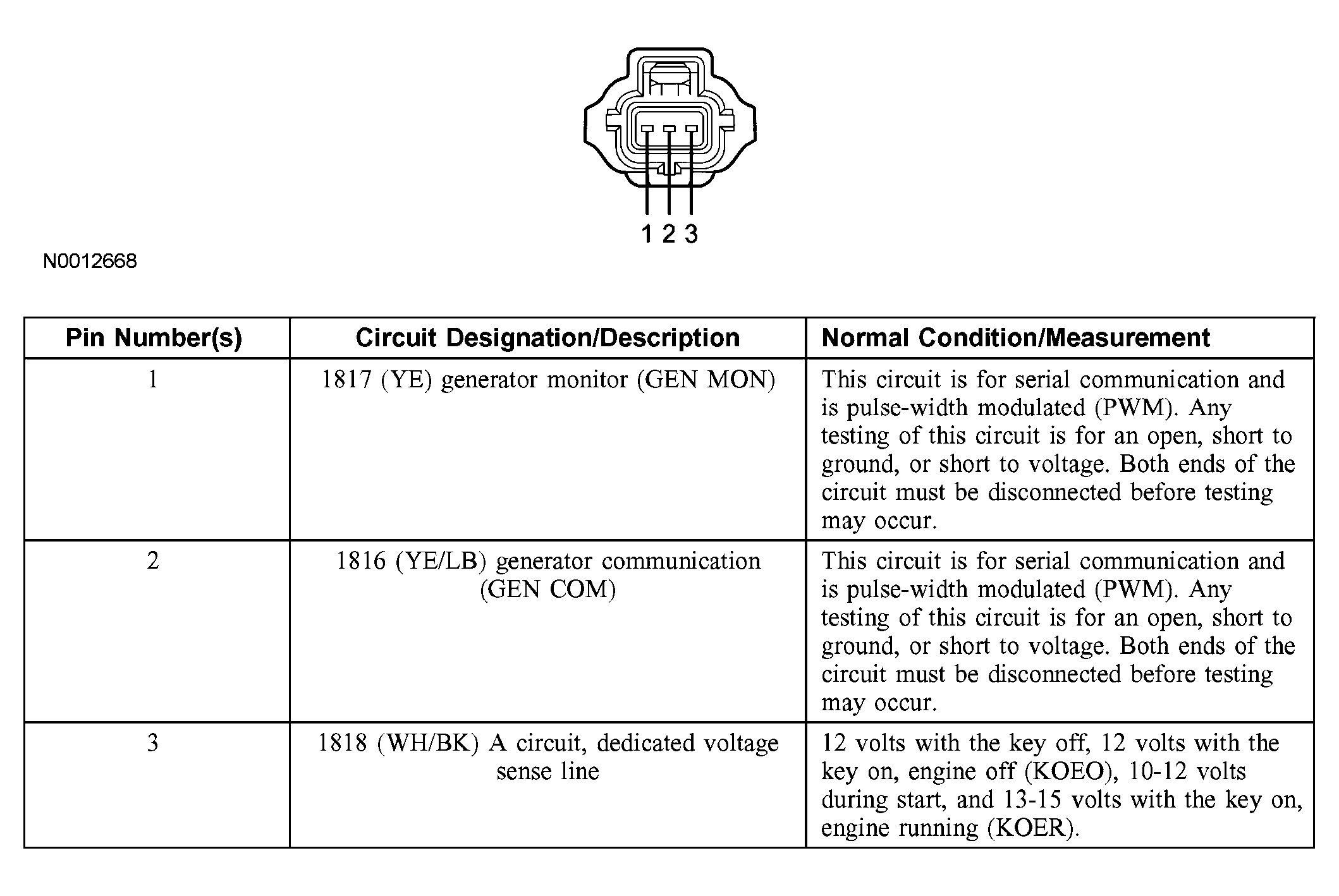

Fig 2: Connector Circuit Reference - Generator C102a (Vehicles Equipped With Auxiliary A/C)
G03992663Courtesy of FORD MOTOR CO.

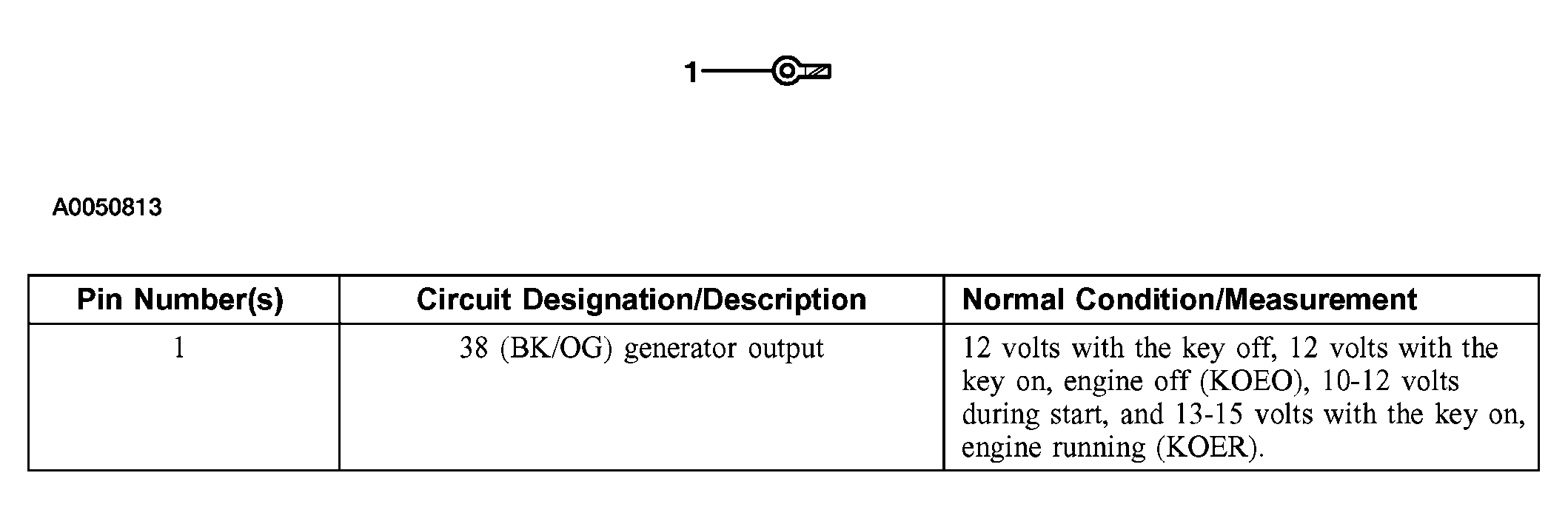

Fig 3: Connector Circuit Reference - Generator C102b
G03992664Courtesy of FORD MOTOR CO.

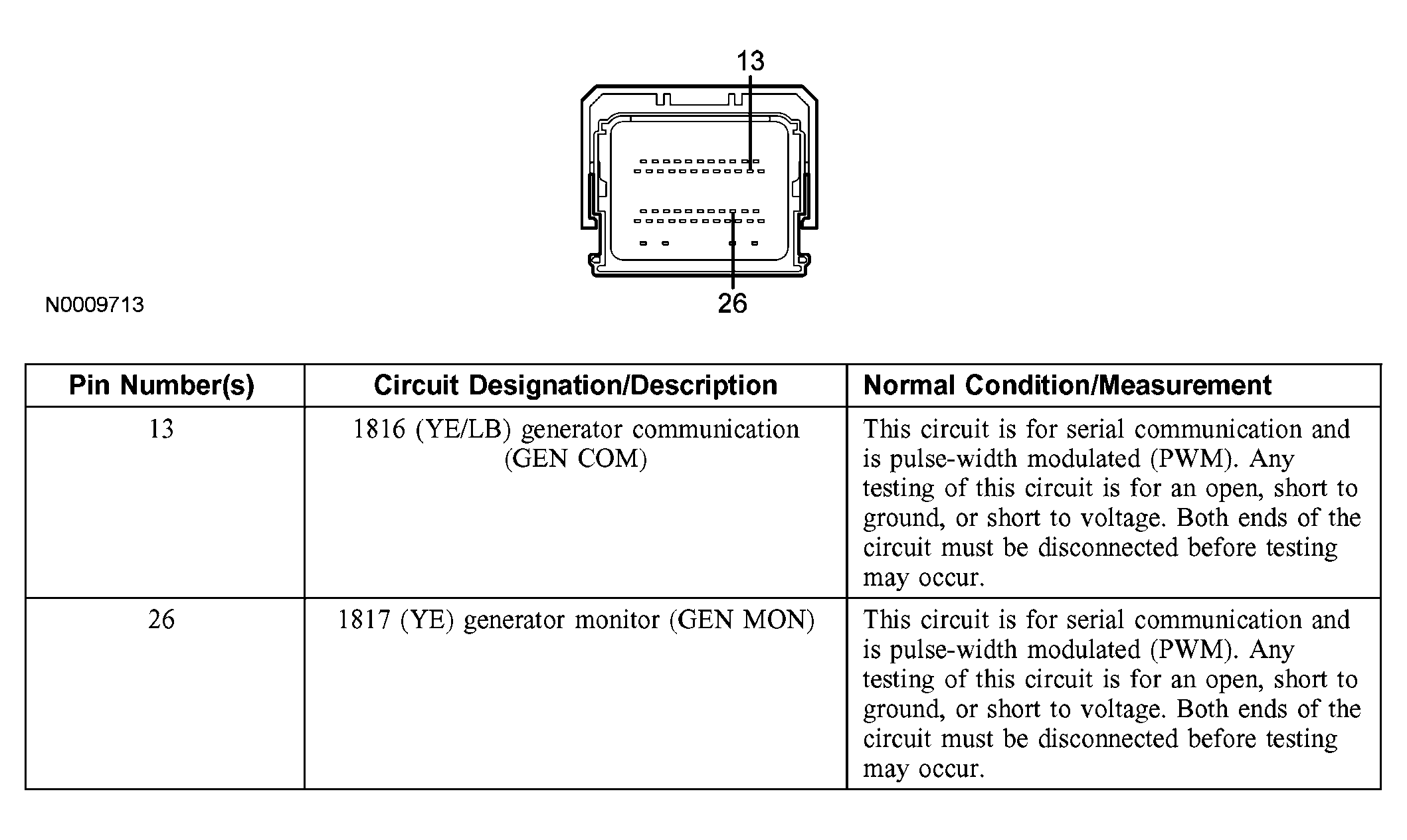

Fig 4: Connector Circuit Reference - Powertrain Control Module (PCM) C175e
G03992665Courtesy of FORD MOTOR CO.
