Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Wiper/Washer Systems
>>
Wiper System & Washer System
>>
Removal And Installation
>>

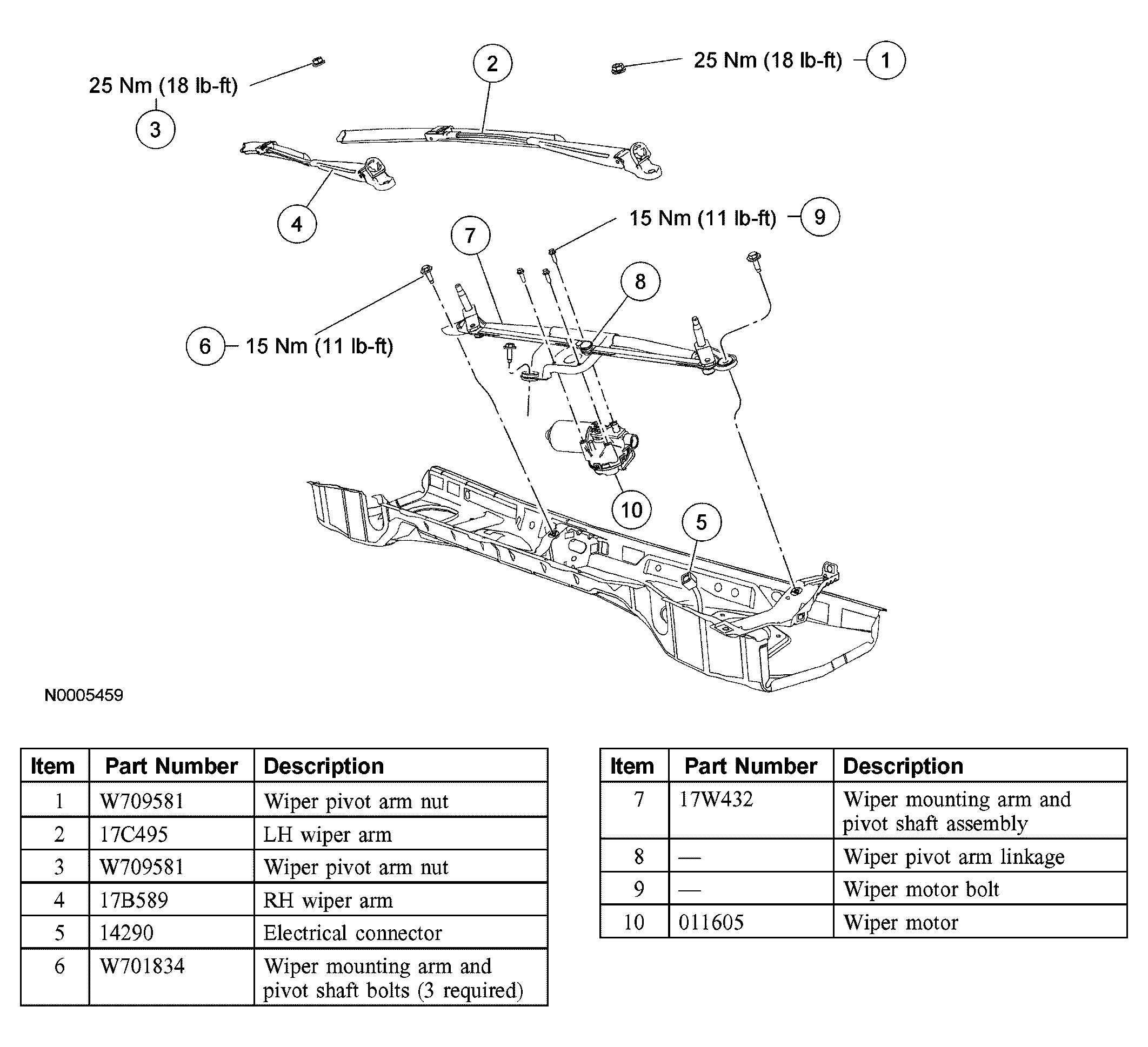

Wiper and Washer System - Exploded View, Front
Wiper and Washer System - Exploded View, Front
Fig 1: Removing/Installing Wiper And Washer System
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article.
Courtesy of FORD MOTOR CO.
