Notes
Accelerator Pedal and Shaft: Notes

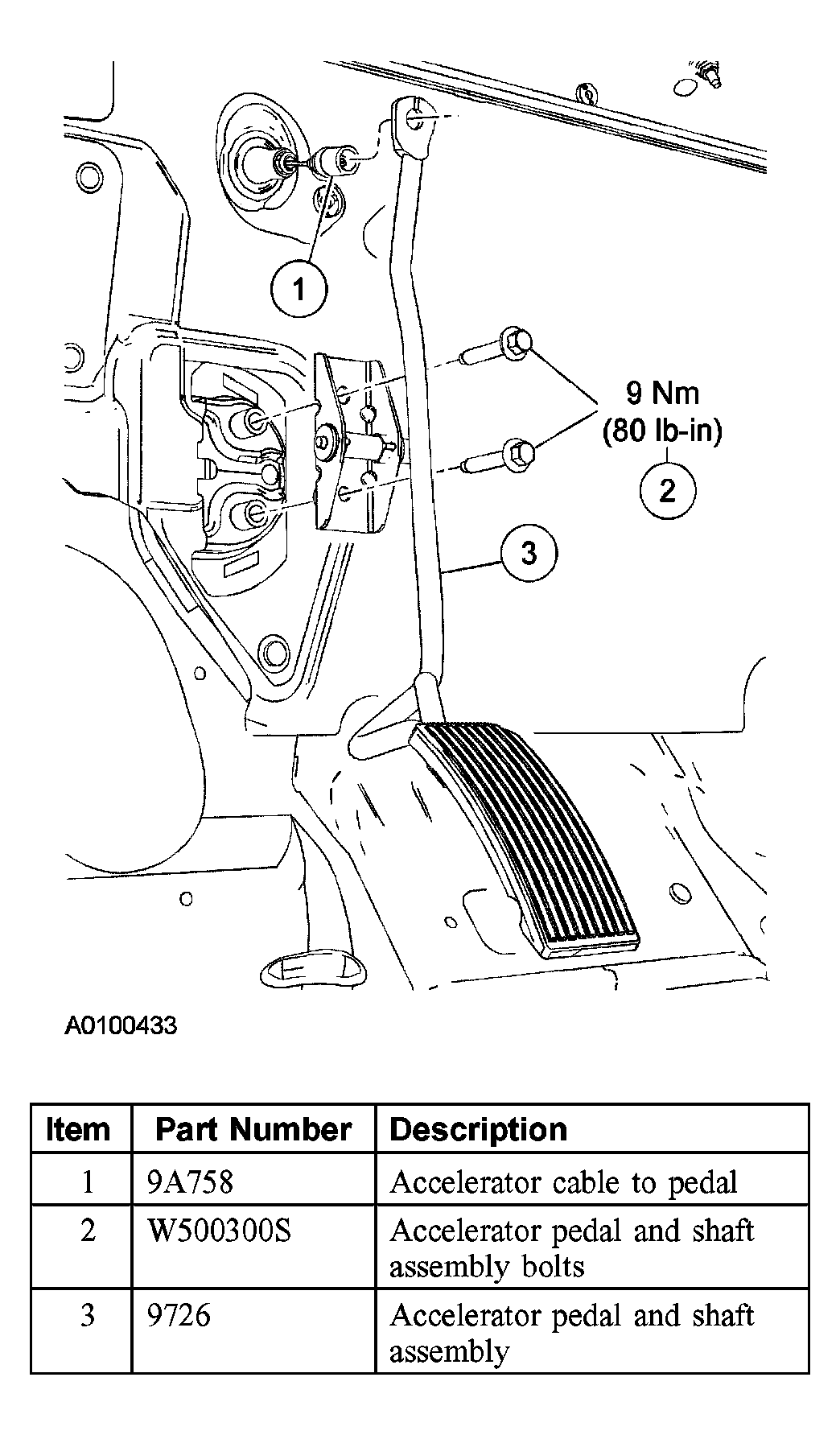

Fig 1: Replacement Components With Torque Specifications Of Accelerator Pedal And Shaft
Courtesy of FORD MOTOR CO.
