Removal and Installation

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Release the clips and disconnect the three powertrain control module (PCM) electrical connectors.

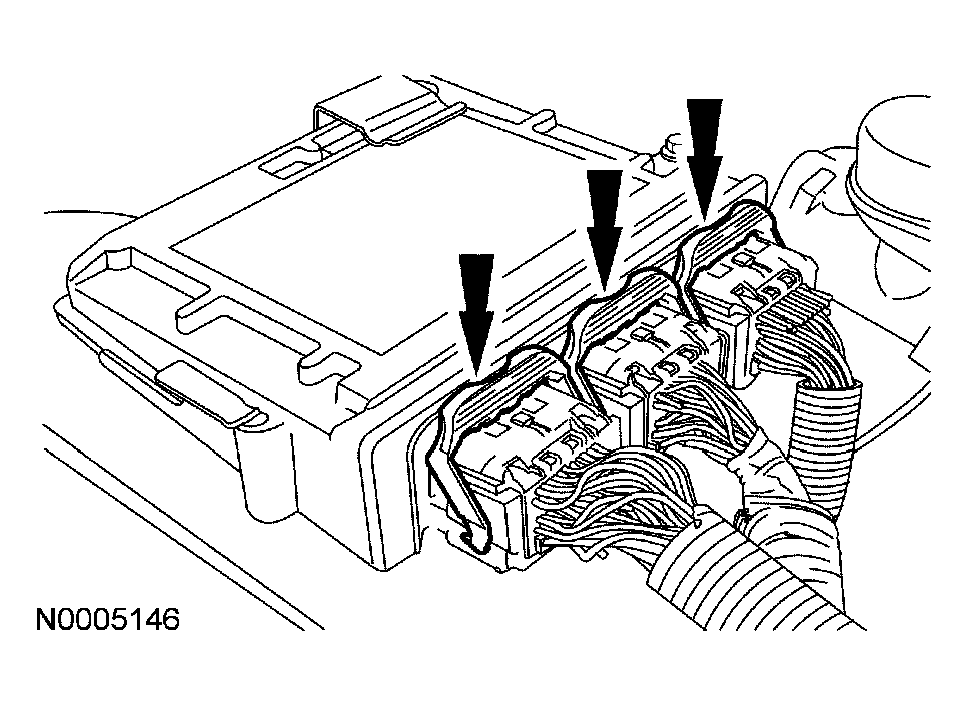

Fig 1: Releasing Clips And Disconnect Three Powertrain Control Module (PCM) Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the PCM retaining bolt and remove the PCM from the mounting bracket.
- To install, tighten to 10 Nm (89 lb-in).

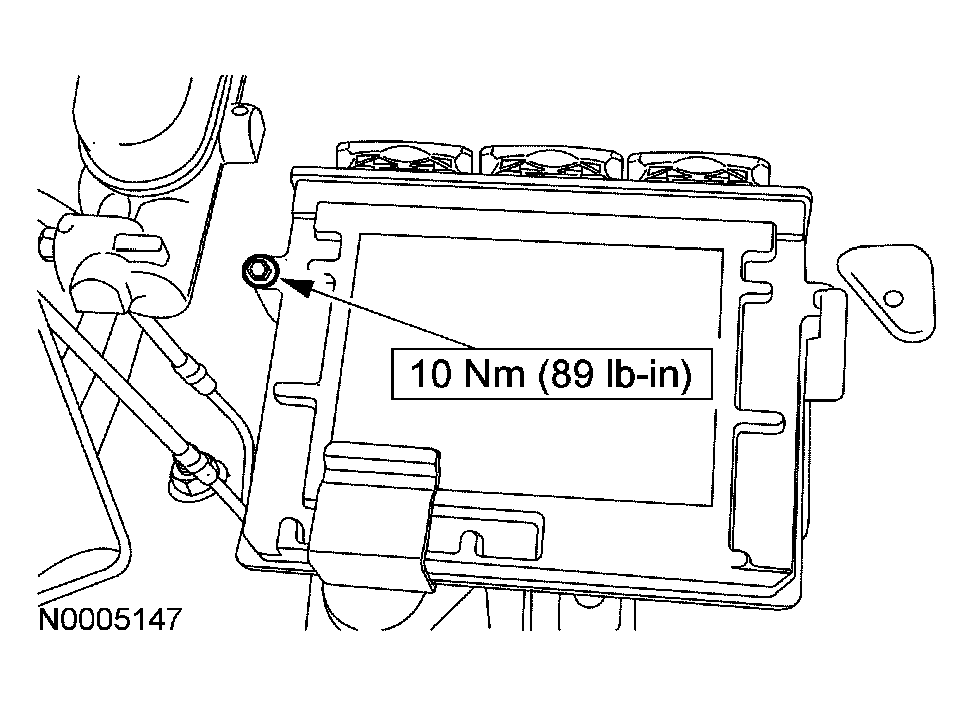

  Fig 2: Removing PCM From Mounting Bracket
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
