Function Selector Switch Vacuum Connector End View

WARNING: This page is about a different car, the 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

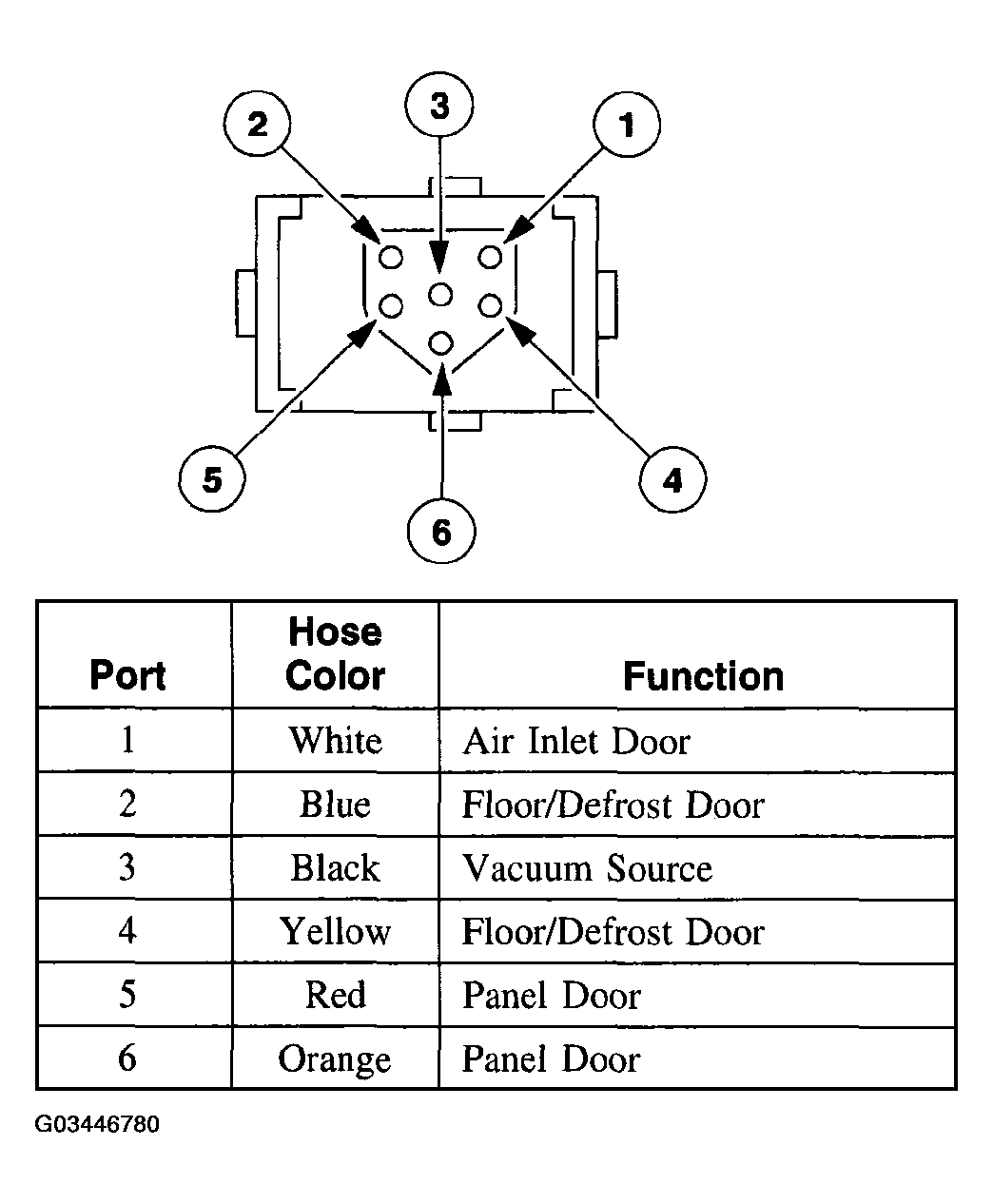

Fig 1: Identifying Function Selector Switch Vacuum Connector
G03446780Courtesy of FORD MOTOR CO.
