System View - 3.0L 4V Engine (CIII Pump)

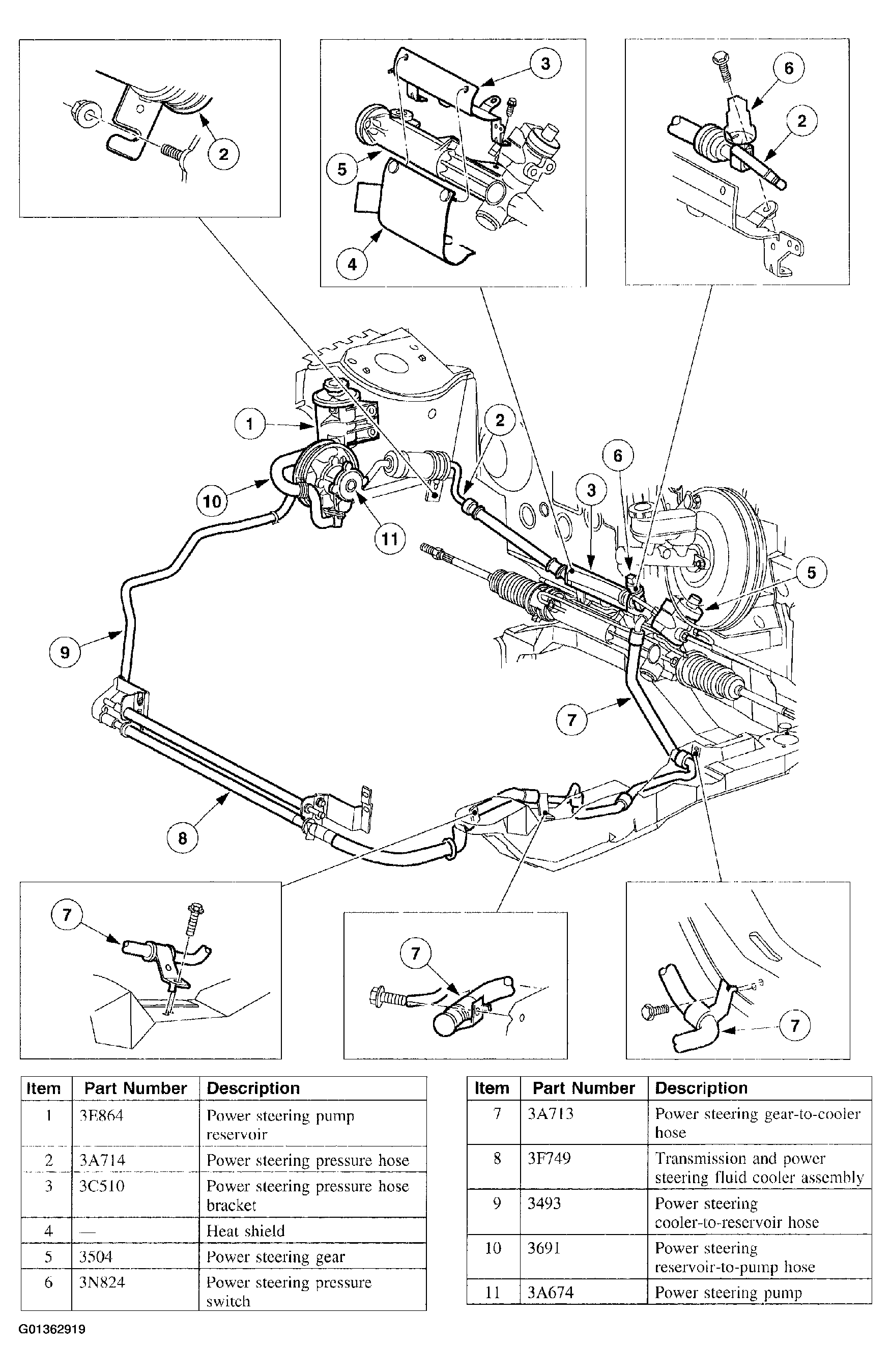

Fig 1: Identifying System View - 3.0L 4V Engine (CIII Pump)

G01362919

Courtesy of FORD MOTOR CO.
