Pinpoint Test G: No ISO 9141 Network Communication
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

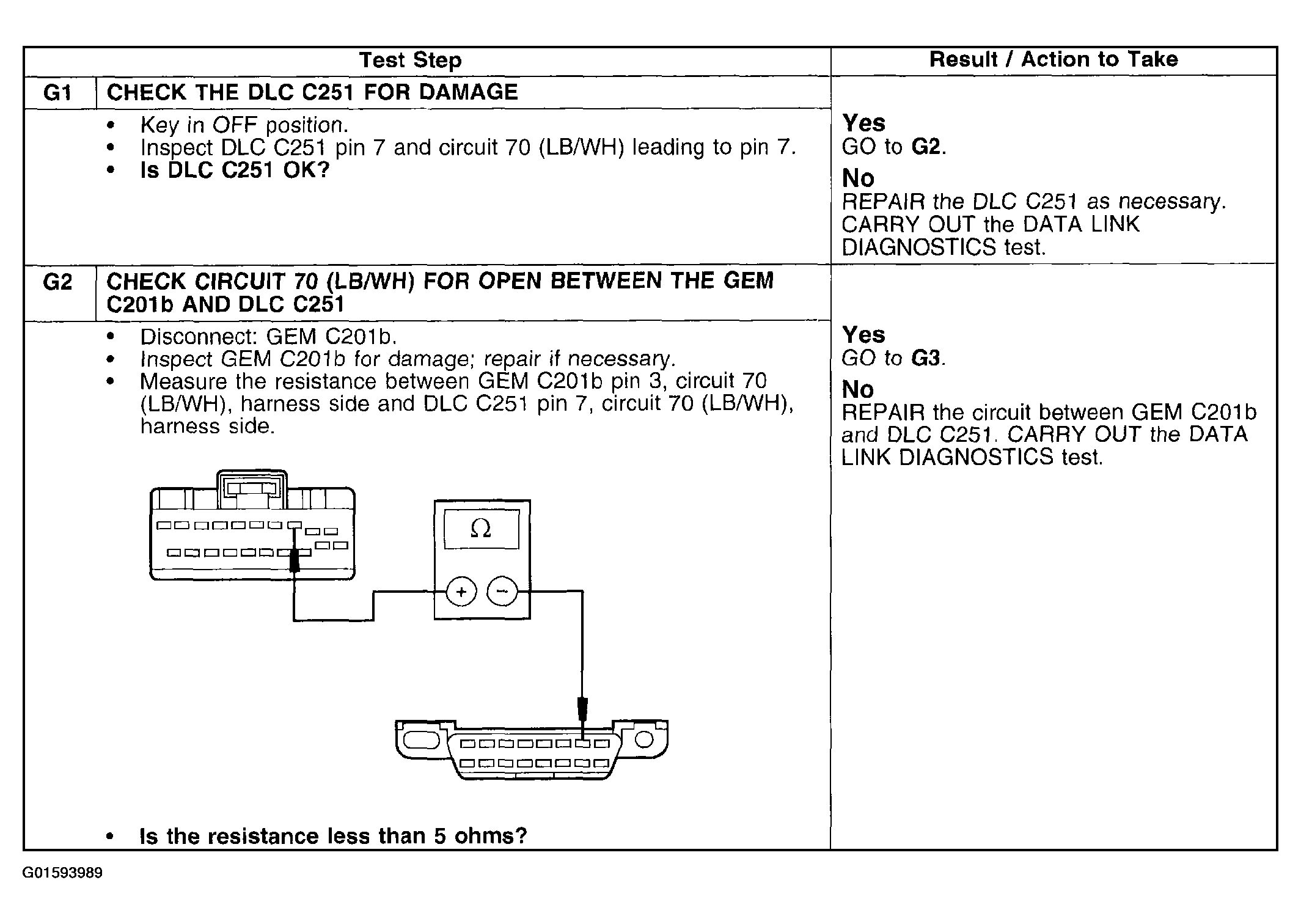

Fig 1: Pinpoint Test G: No ISO 9141 Network Communication (Steps G1-G2)
Courtesy of FORD MOTOR CO.

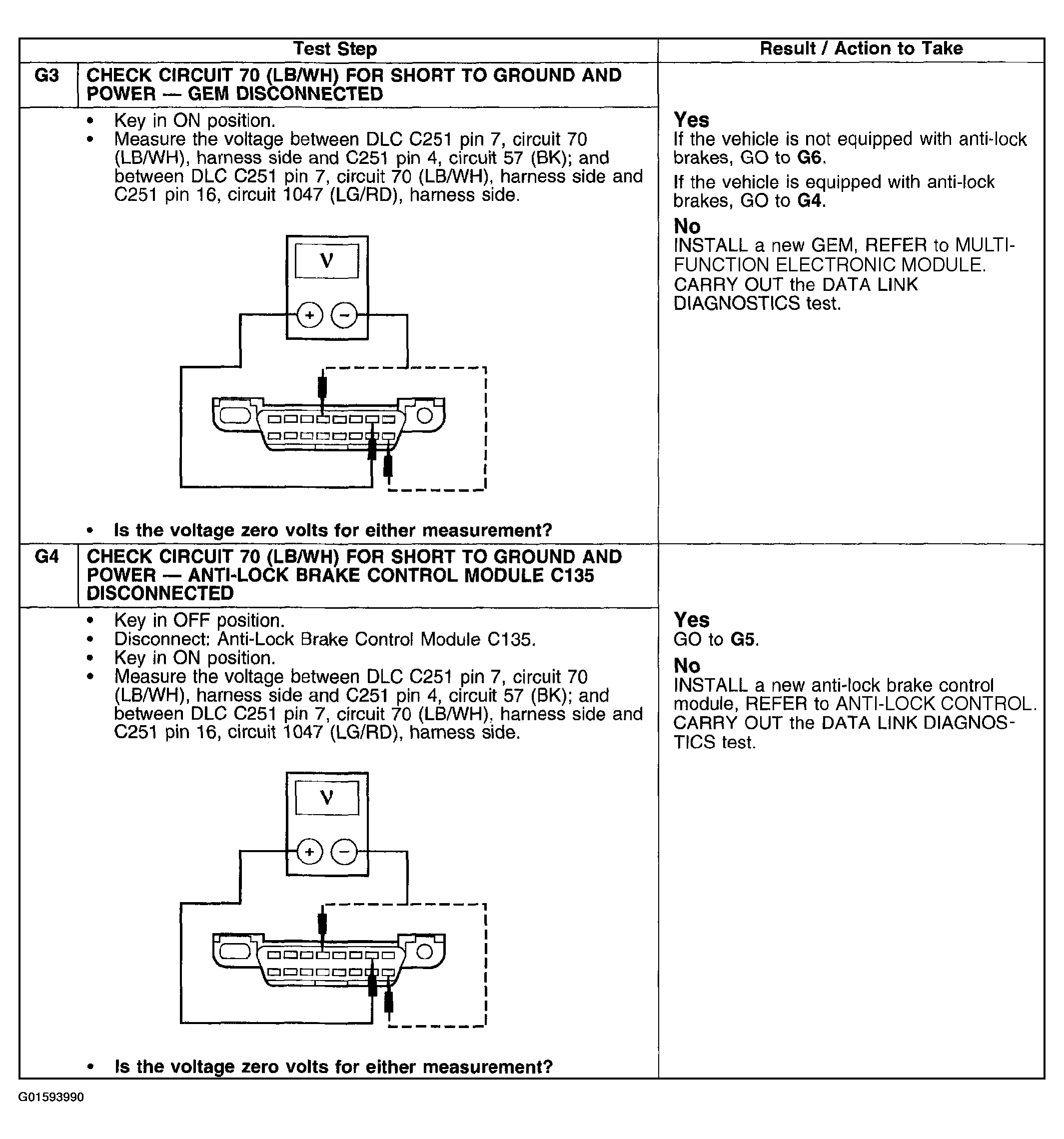

Fig 2: Pinpoint Test G: No ISO 9141 Network Communication (Steps G3-G4)
Courtesy of FORD MOTOR CO.

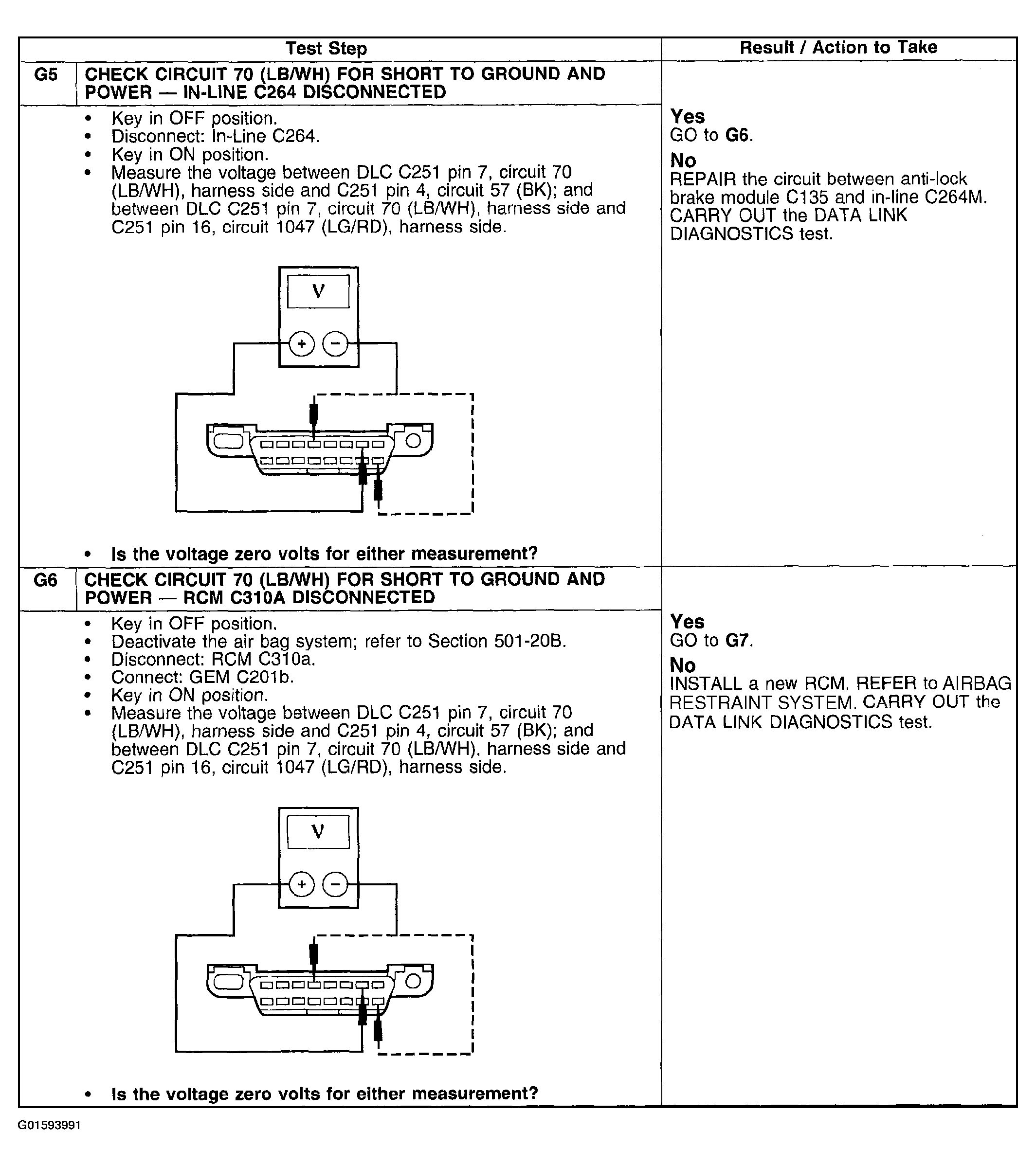

Fig 3: Pinpoint Test G: No ISO 9141 Network Communication (Steps G5-G6)
Courtesy of FORD MOTOR CO.

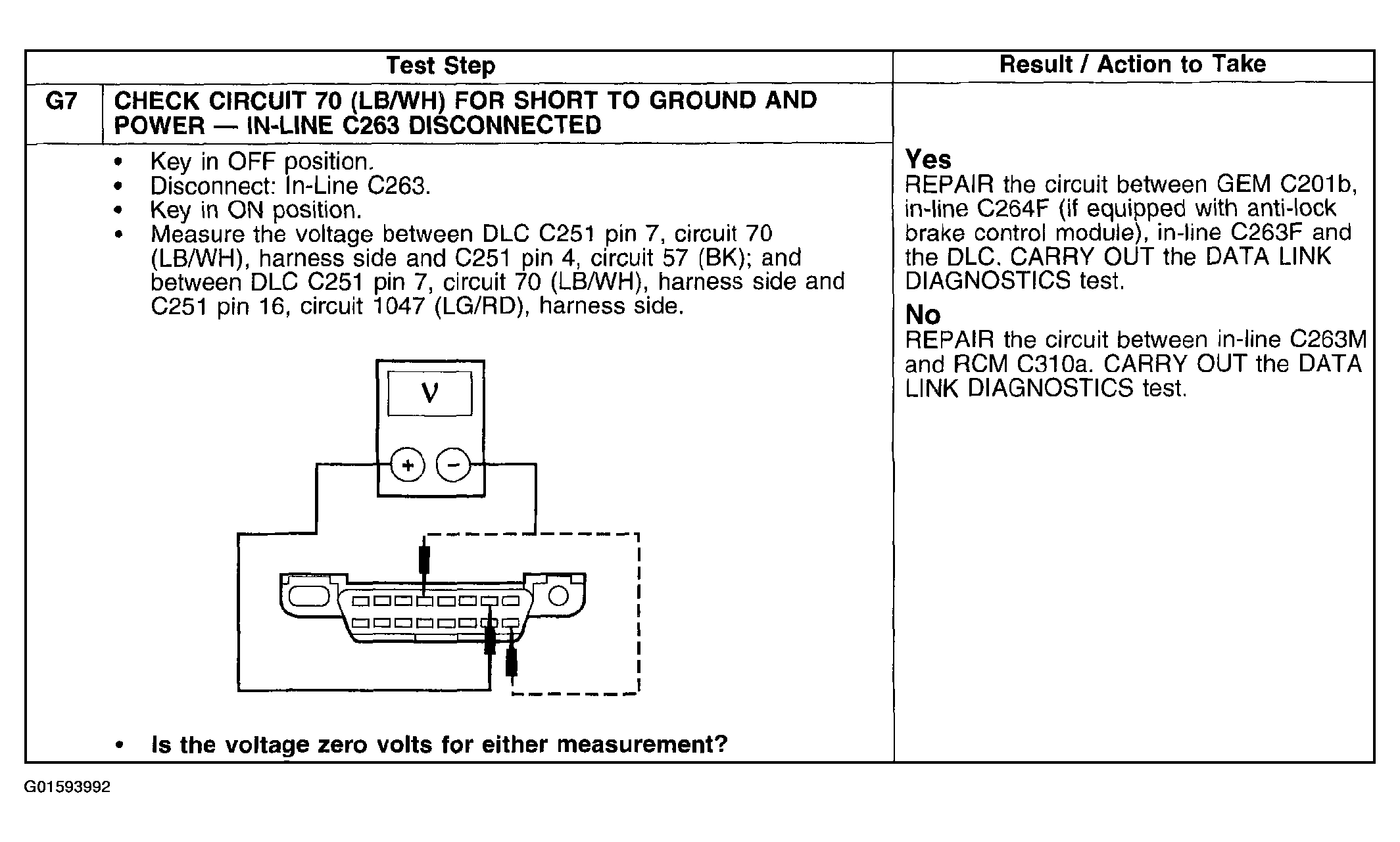

Fig 4: Pinpoint Test G: No ISO 9141 Network Communication (Steps G7)
