Removal and Installation

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the throttle position (TP) sensor electrical connector.

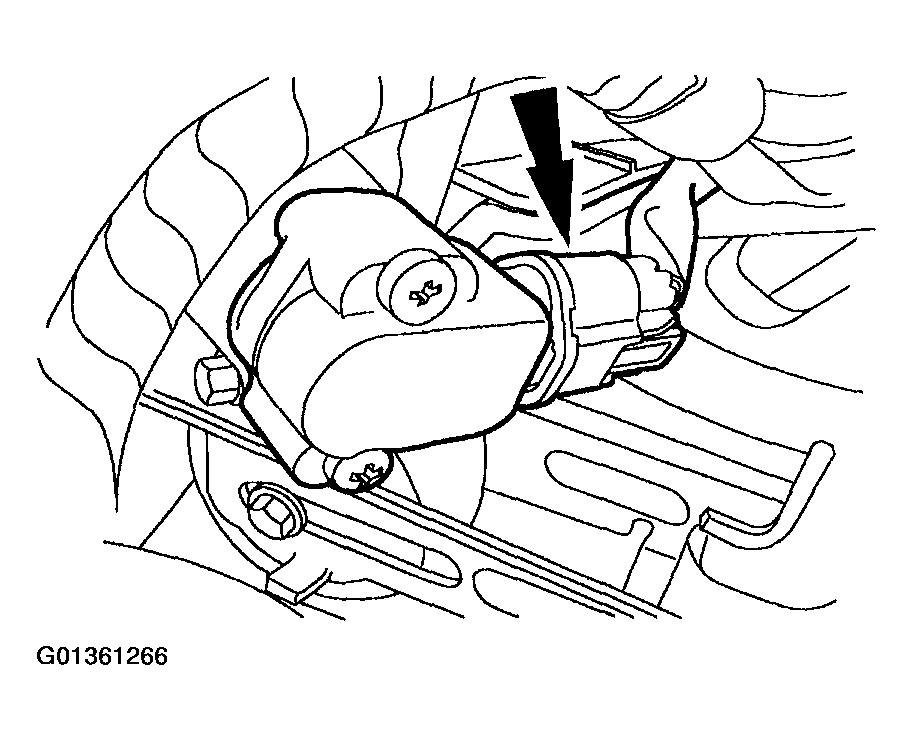

    Fig 1: Disconnecting Throttle Position (TP) Sensor Electrical Connector
    G01361266Courtesy of FORD MOTOR CO.
  3. Remove the screws and the TP sensor.

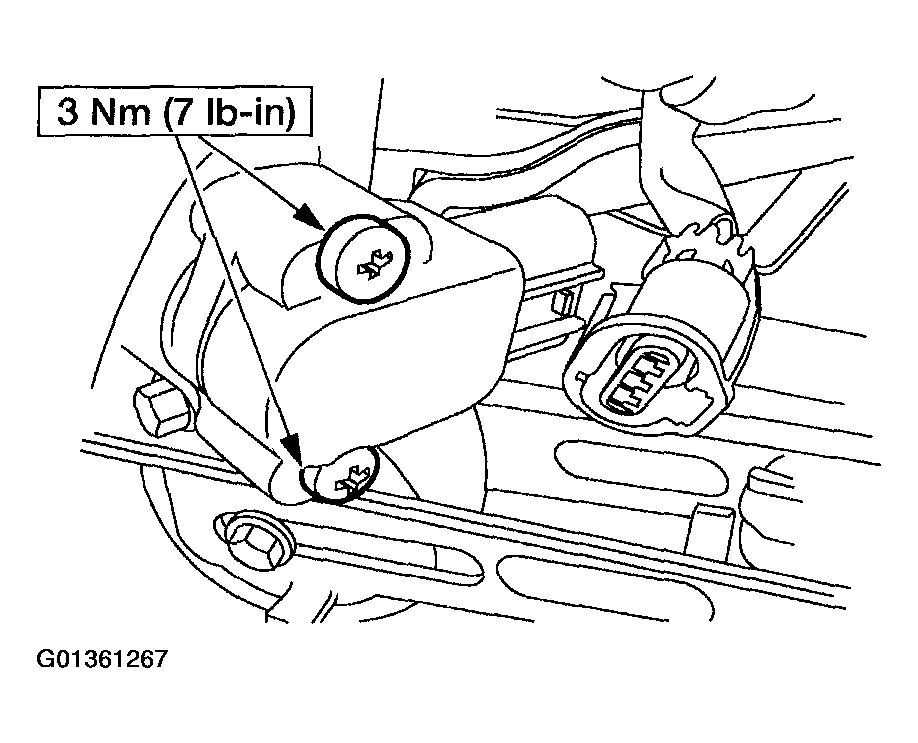

    Fig 2: Removing Screws And The TP Sensor
    G01361267Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
