Fuel Injection Pressure and Temperature Sensor: Material

Fig 1: Identifying Material Chart

Courtesy of FORD MOTOR CO.

1. Release the fuel system pressure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
NOTE: 4V shown, 2V similar.

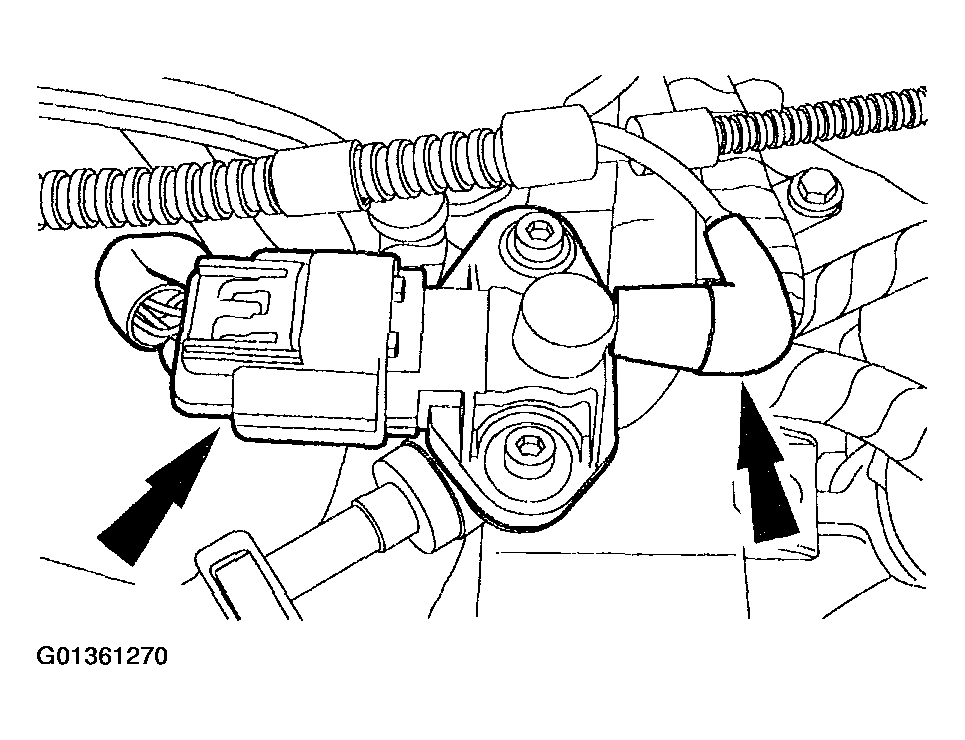

Fig 2: Disconnecting Fuel Injection Pressure, Temperature Sensor Electrical Connector And Vacuum Hose
Courtesy of FORD MOTOR CO.
3. Disconnect the fuel injection pressure and temperature sensor electrical connector and the vacuum hose.
4. Remove the bolts and the fuel injection pressure and temperature sensor.

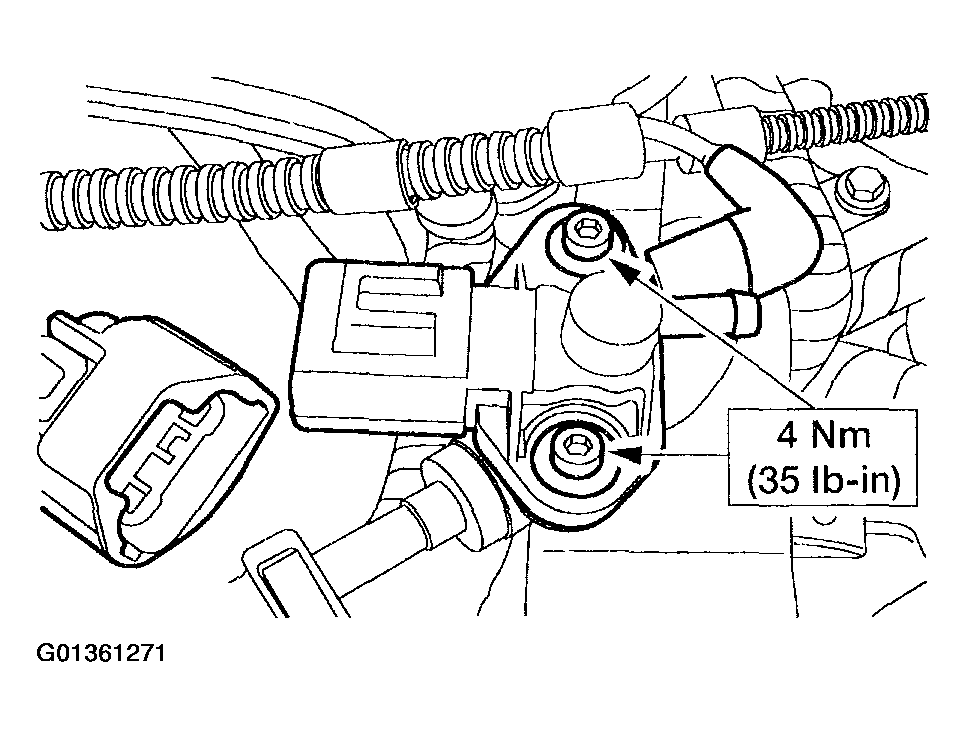

   Fig 3: Removing Bolts And Fuel Injection Pressure And Temperature Sensor

   Courtesy of FORD MOTOR CO.
NOTE: Before installing the fuel injection pressure and temperature sensor, inspect and lubricate the O-ring seal with clean engine oil.
NOTE: Hand-tighten both bolts before tightening to specification.
5. To install, reverse the removal procedure.
