Pinpoint Test Pc: Data Link Diagnostics Test

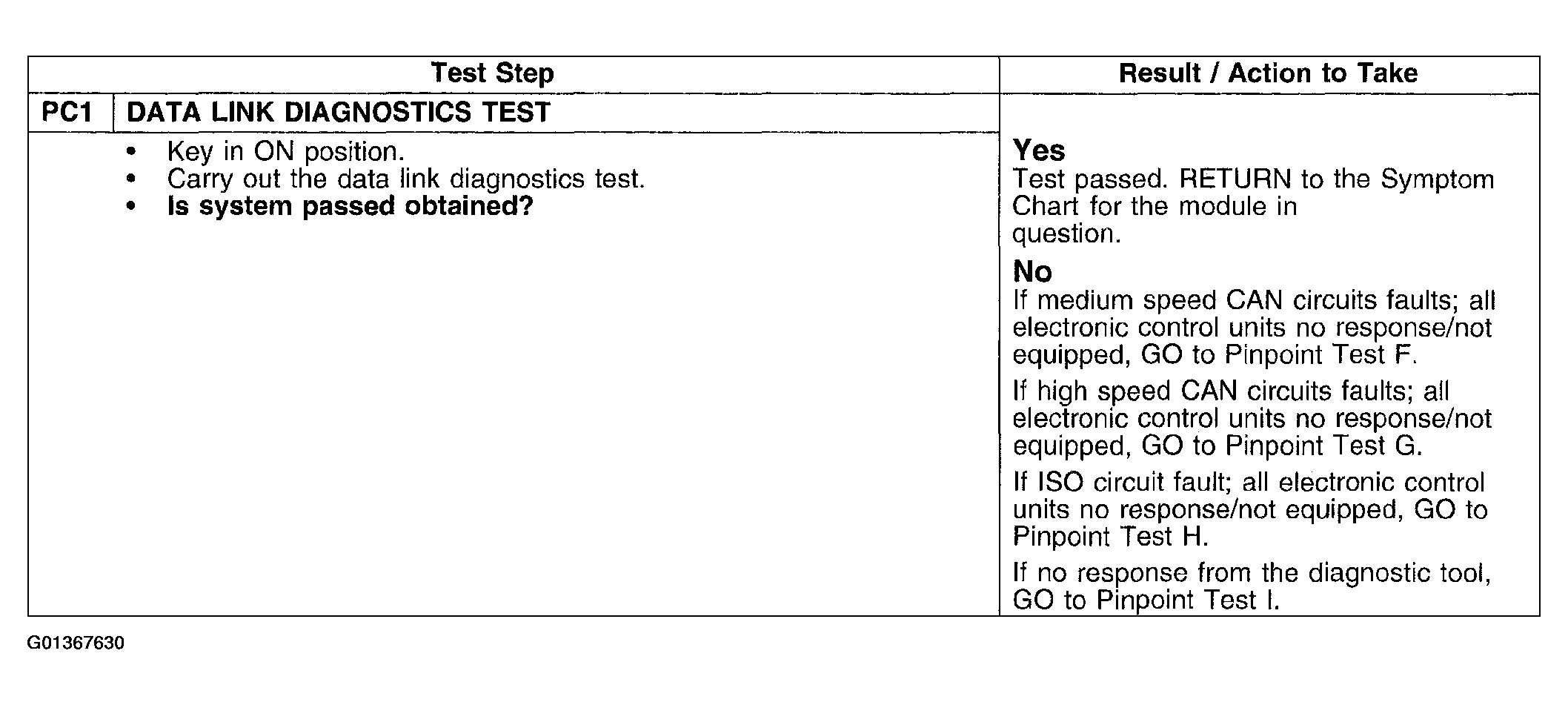

Fig 1: Pinpoint Test PC: Data Link Diagnostics Test (Step PC1)

G01367630

Courtesy of FORD MOTOR CO.
