Restraint Control Module (RCM) C310a

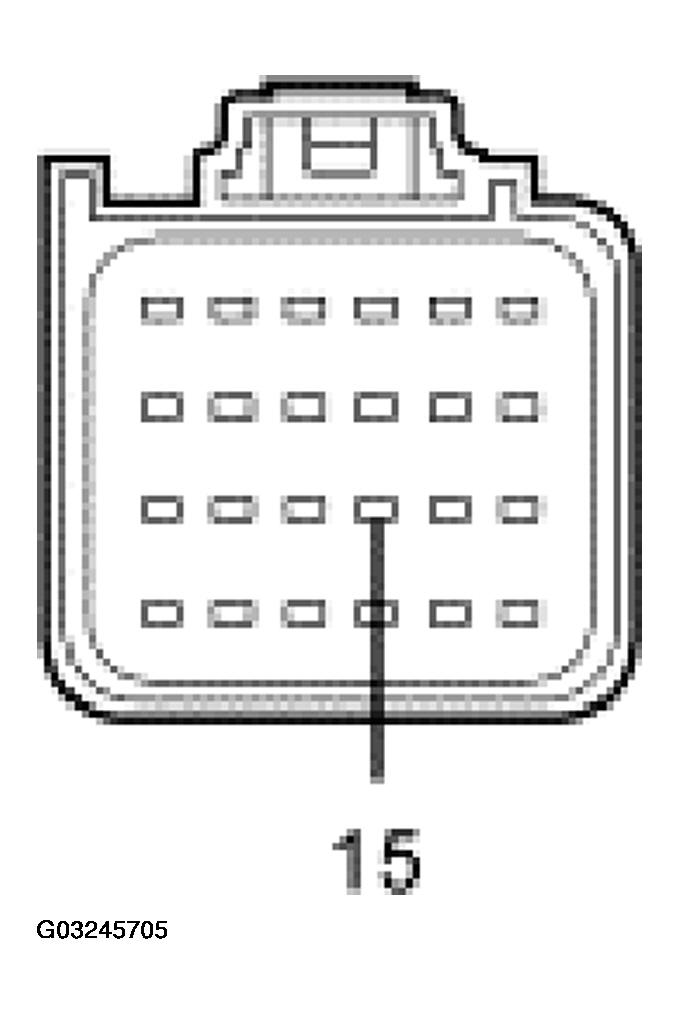

Fig 1: Identifying Restraint Control Module (RCM) C310A Pins
G03245705Courtesy of FORD MOTOR CO.
RESTRAINT CONTROL MODULE (RCM) C310A CONNECTOR CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
15 608 (BK/YE) air bag warning indicator control circuit 0 volts, less than 5 ohms resistance between the instrument cluster and the air bag module. Greater than 10,000 ohms resistance between the instrument cluster and chassis ground.
