Reverse Servo Assembly: Removal

  1. Remove the main control valve body. For additional information, REFER to MAIN CONTROL VALVE BODY .
  2. Using the special tool, remove the reverse band servo retaining ring.
    1. Compress the servo spring.
    2. Remove the reverse band servo retaining ring.

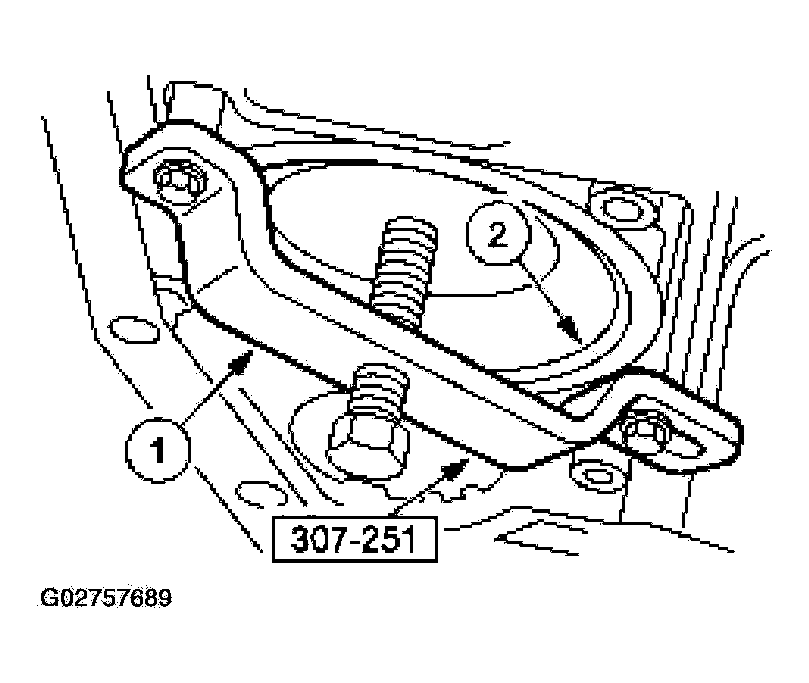

    Fig 1: Removing Reverse Band Servo Retaining Ring
    G02757689Courtesy of FORD MOTOR CO.
  3. Remove the reverse servo assembly.
    1. Remove the reverse band servo cover.
    2. Remove the reverse band servo piston and rod.
    3. Remove the reverse band servo spring.

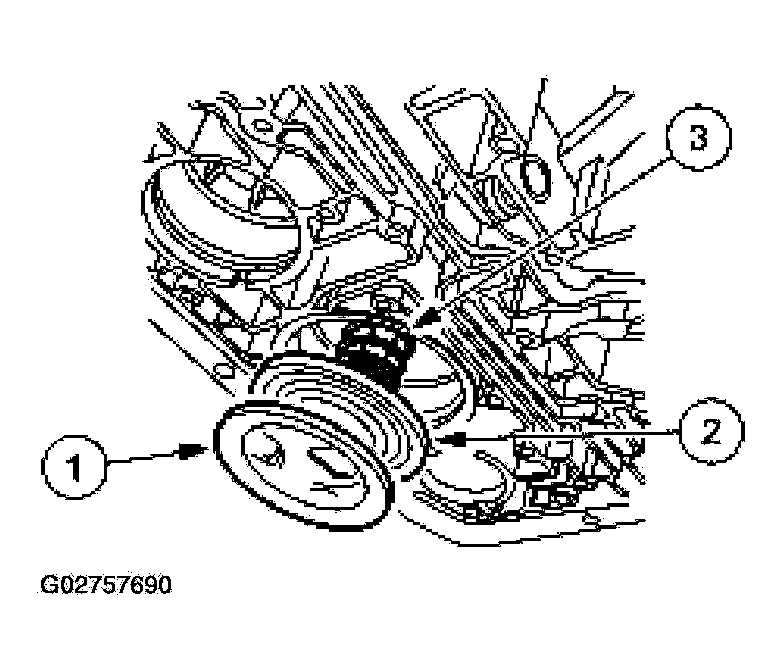

    Fig 2: Removing Reverse Servo Assembly
    G02757690Courtesy of FORD MOTOR CO.
